| Place of Origin: | China |
|---|---|
| Brand Name: | KAZ Circuit |
| Certification: | ISO9001, TS16949, UL, RoHS |
| Model Number: | PCBA-S-096597 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD/pc |
| Packaging Details: | Bubble Wrap |
| Delivery Time: | 2~4 weeks |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20,000 Square Meters / Month |
| Layers: | 6 Layers | Layers: | 6 Layers |
|---|---|---|---|
| Board Thickness: | 1.6mm | Board Thickness: | 1.6mm |
| Copper: | 1oz | Surface: | HASL LF |
| Surface: | HASL LF | Soldmask: | Green |
| Soldmask: | Green | Silk Screen: | White |
| Silk Screen: | White | Silk Screen: | White |
| Silk Screen: | White | ||
| High Light: | Quick Turn prototype pcb assembly, 6 layers pcb manufacturing and assembly, quick turn pcb assembly Green Soldmask | ||
China quick turn PCB Assembly Manufacturer fast lear time
Detail Specifications:
| Layers | 6 |
| Material | FR-4 |
| Board Thickness | 1.6 mm |
| Copper Thickness | 1oz |
| Surface Treatment | HASL LF |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
What KAZ Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
SMT Capacity

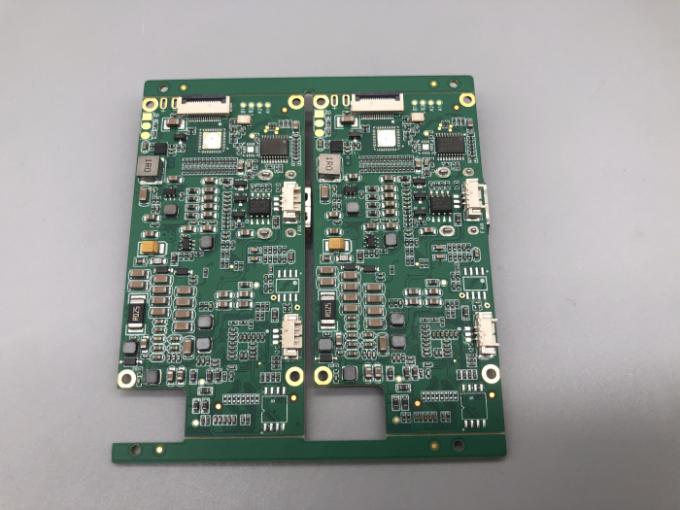

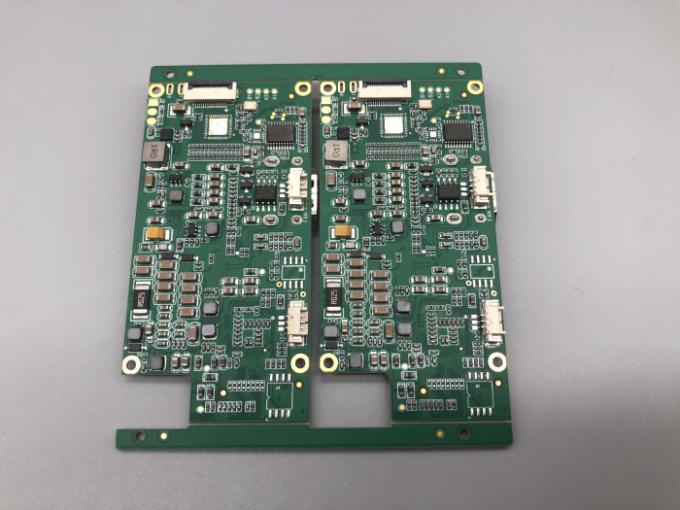

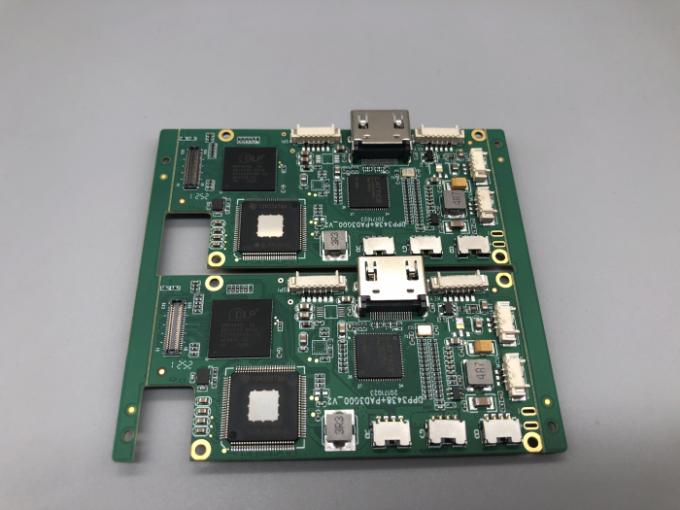

Photoes of this quick turn prototype & mass production for SMT PCB Assembly 6 PCB Assembly lines
