| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | NA |
| Certification: | IATF16949-2016 | ISO9001 2015 | UL 337072 | ROHS |
| Model Number: | NA |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 0.1usd |
| Packaging Details: | Anti-static bag |
| Delivery Time: | 5-8days |
| Payment Terms: | D/A, D/P, T/T |
| Supply Ability: | 1000000pcs per month |
| Layer Counts: | 4L | Materials: | FR4 TG130 |
|---|---|---|---|
| Surface Treatment: | ENIG | Board Thickness: | 1.6 |
| Solder Mask: | Green | Silkscreen: | White |
| Finished Copper Thickness: | 1/1/1/1oz | ||
| High Light: | FR4 ENIG SMT PCB Assembly, BGA POP SMT PCB Assembly, 1OZ Printed Circuit Board Assembly | ||
Detailed Informations:
4 Layers FR4 PCB, Electronic Circuit Board Assembly& Multilayer-PCBA Assembly
1. Features
1. Surface Mount PCB assembly (Both rigid PCB, flexible PCB);FR4 Material, Meet 94V0 standard
2. One Stop OEM Service,&PCBA contract manufacturing:
3. Electronic contract manufacturing service
4. Through hole assembly/DIP assembly;
5. Bonding assembly;
6. Final assembly;
7. Full Turnkey Box Build
8. Mechanical / electrical assembly
9. Supply Chain Management/Components procurement
10. PCB fabrication;
11. Technical support/ ODM service
12. Surface treament:OSP, ENIG,Lead Free HASL, Environmental Protection
13. UL, CE, ROHS Compliant
14. Shipping By DHL,UPS, TNT, EMS or Customer requirement
15. Anti-static bag
2. PCBA Technical capability
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
| Max. component height::25mm | |
| Max. PCB size:680×500mm | |
| Min. PCB size:no limited | |
| PCB thickness:0.3 to 6mm | |
| PCB weight:3KG | |
| Wave-Solder | Max. PCB width:450mm |
| Min. PCB width: no limited | |
| Component height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum | |
| Surface Finish:plating Au, plating sliver , plating Sn | |
| Air bladder rate:less than20% | |
| Press-fit | Press range:0-50KN |
| Max. PCB size:800X600mm | |
| Testing | ICT,Probe flying,burn-in,function test,temperature cycling |

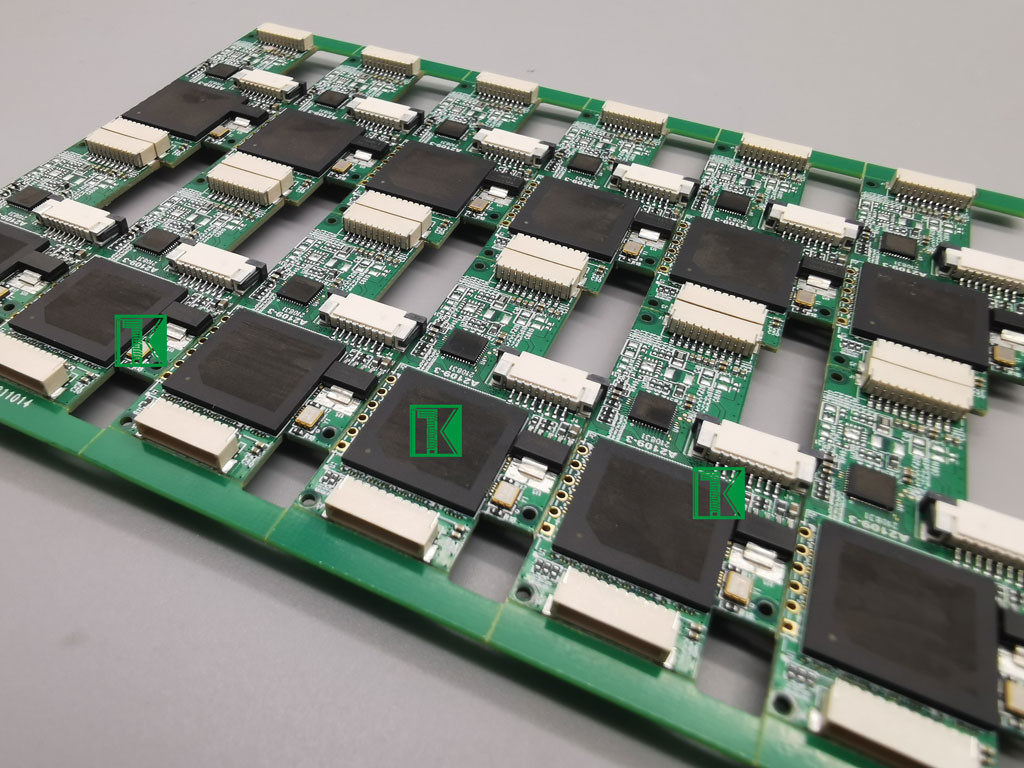

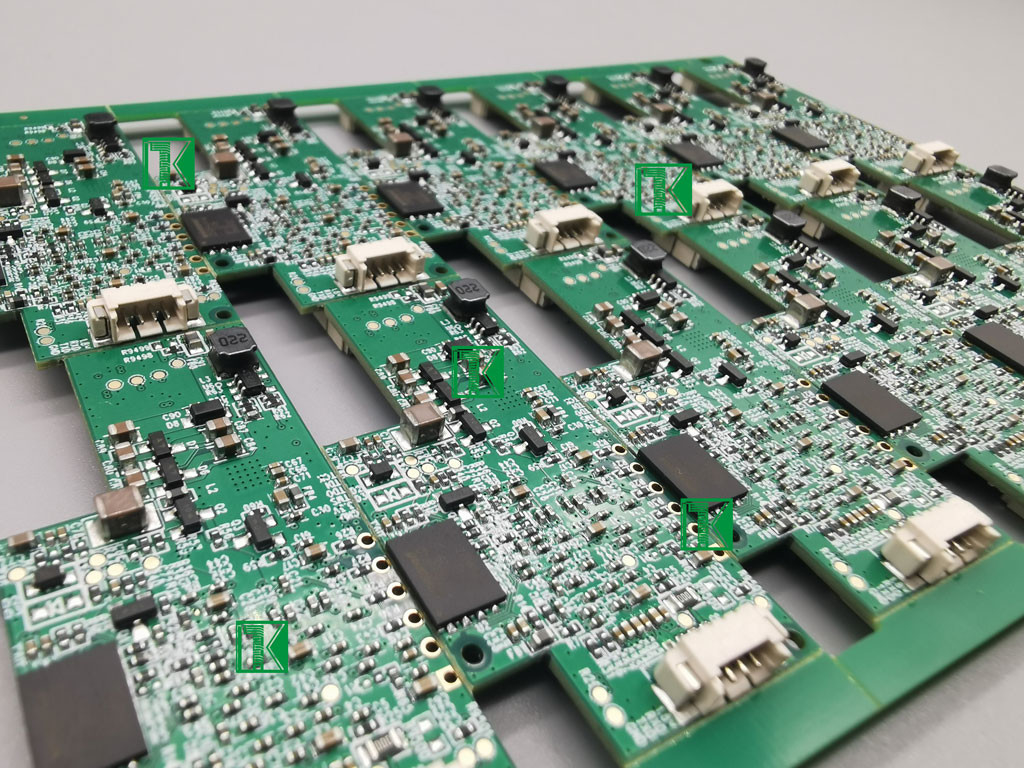

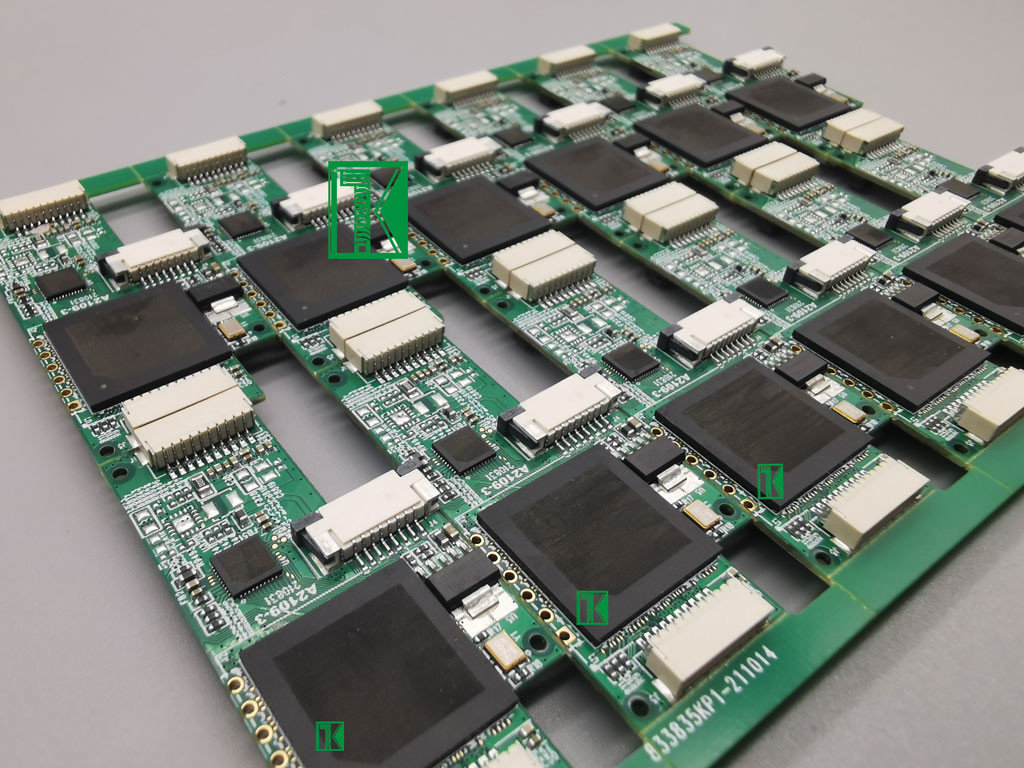

2. PCBA Pictures
