| Происхождение: | Китай |
|---|---|
| Название марки: | Неверный |
| Сертификация: | ISO9001 / UL (E337072) / TS16949 (0259279) / RoHS |
| Модель: | & quot; Кингсум электроник & quot; |
| Минимальное количество заказов: | 1 шт. |
|---|---|
| Цены: | 0,1 - 5 долл. США |
| Детали упаковки: | Вакуумная упаковка |
| Время поставки: | 5 - 8 дней |
| Условия оплаты: | T / T, Western Union Переводы, Paypal |
| Потенциал предложения: | 20 000 м |
| SMT And DIP: | Support | Application: | Camera PCBA |
|---|---|---|---|
| Components: | Supplied By Customers Or Supplied By Manufacturer | PCB Test: | AOI ; 100%test For Open And Short; |
| PCBA Test: | X-ray,Function Test | PCB: | HDI With Laser And Buried Holes |
| Soldmask: | Green/Bule/Black/white | Material: | FR4 |
| Surface: | ENIG/HASL | Silkscreen: | Black |
| Layer: | 6 Layers | Thickness: | 1.6mm |
| High Light: | FR4 6 Layer PCB,6 Layer PCB 1.6mm,2OZ Printed Circuit Board Assembly | ||
1. Detailed Specifications
| Material | FR4 |
| Board Thickness | 1.6mm |
| Surface Treatment | Lead Free |
| Copper Thickness | 1/1/1/1/1/1OZ |
| Soldermask | Green |
| Silkscreen | White |
| The Min Laser Drill Hole | 4 Mill |
| Panel | V-Cut |
Introduction:
Electronic circuit it to plug the SMT(Surface Mounted Technolofy) and the DIP in the Printed Circuit Board, also called PCBA.
Production:
Both SMT and DIP are means of integrating components in the PCB board. The main difference is that SMT does not need to drill holes on the PCB,while it's nacessary for the DIP to plug the pin of the component into the drilled hole.
SMT:
Mainly use the paste to pack machine to attach some micro components the PCB board. The production process is as follows: the PCB board positioning, solder paste printing, paste and pack, return to the soldering stove, finally inspection.

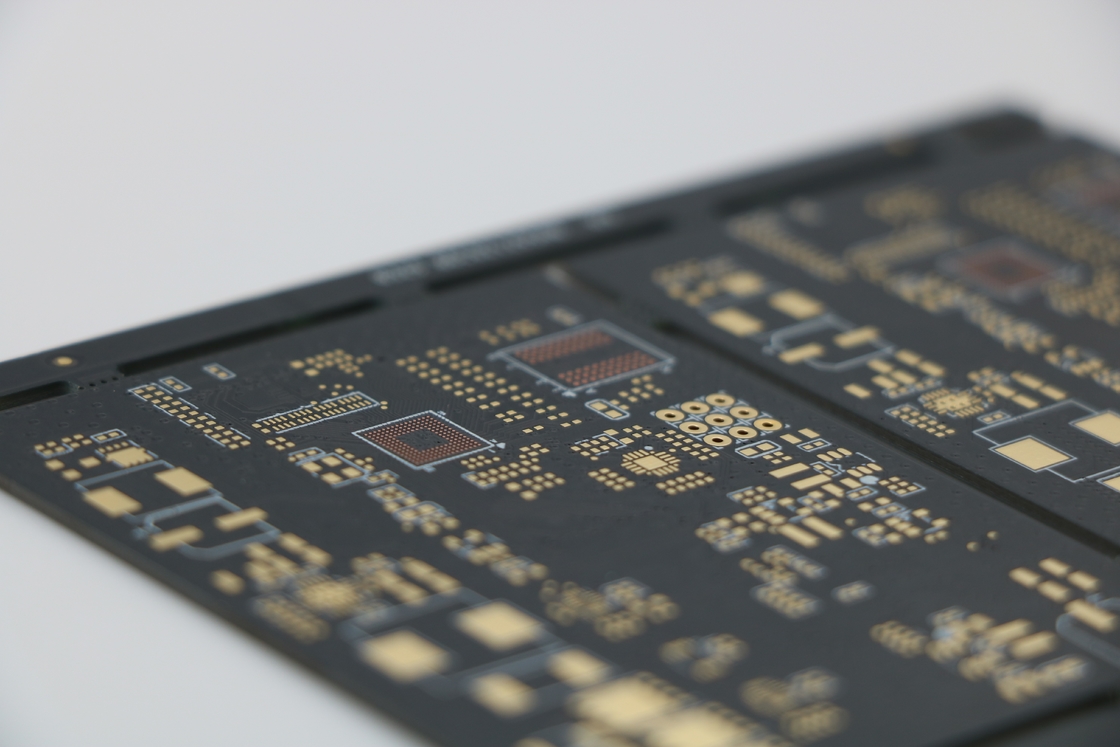

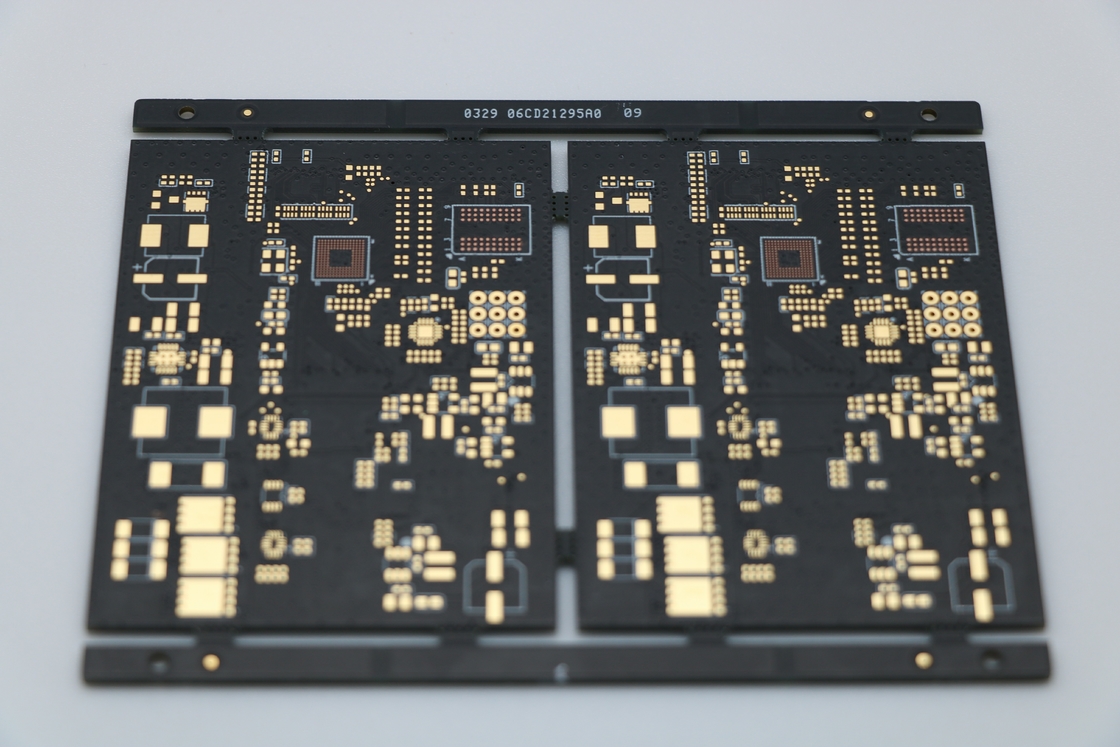

2. Pictures
FAQ
Q: What files do you use in PCB fabrication?
A: Gerber or Eagle, BOM listing, PNP and Components Position
Q:Is it possible you could offer sample?
A: Yes, we can custom you sample to test before mass production
Q: When will I get the quotation after sent Gerber, BOM and test procedure?
A: Within 6 hours for PCB quotation and around 24-48 hours for PCBA quotation.
Q: How can I know the process of my PCB production?
A: 5-7days for PCB production and components purchasing, and 14 days for PCB assembly and Testing.
Q: How can I make sure the quality of my PCB?
A: We ensure that each piece of PCB products work well before shipping. We'll test all of them according to your test procedure.
