4 - 10 слой FR4 HDI Печатная плата

Подробная информация о продукции:

Происхождение: Китай
Название марки: Электронный PCB Kingsum
Сертификация: UL, ROHS, REACH, TS16949
Модель: ПХБ - HDI - 006

Условия оплаты и перевозки:

Минимальное количество заказов: 1
Цены: Запрошено
Детали упаковки: Вакуумный мешок
Время поставки: 15 - 18 дней
Условия оплаты: Т / Т, аккредитив
Потенциал предложения: 10 000 в месяц


Получить предложение

Общий обзор

Detailed Product Description
PCB Material: FR4 Size: As Per Gerber
Thickness: 0.8-3.2mm Layers: 4-10layers
Copper: 1OZ Surface: ENIG/HASL/OSP
Soldermask: Red/Green/Black/White Standard: IPC Class 2
Silkscreen: White/Black
High Light: lead free pcb,hdi pcb


4-10 layers FR4 1OZ ENIG/HASL/OSP HDI Printed Circuit Boards With Blind&Burried holes

Detail Specifications:

Layers 4-10Layers
Material FR-4
Board Thickness 1.6mm
Copper Thickness 1oz
Surface Treatment ENIG/HASL/OSP
Soldmask & Silkscreen Green & White
Quality Standard IPC Class 2, 100% E-testing
Certificates TS16949, ISO9001, UL, RoHS

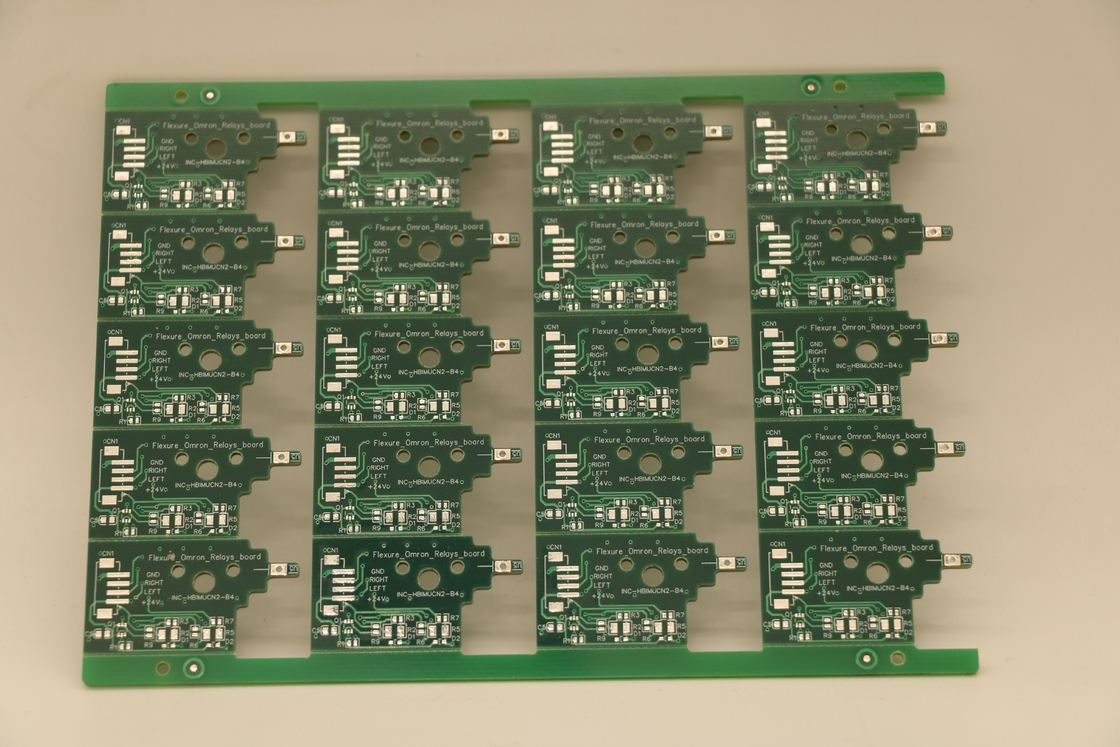

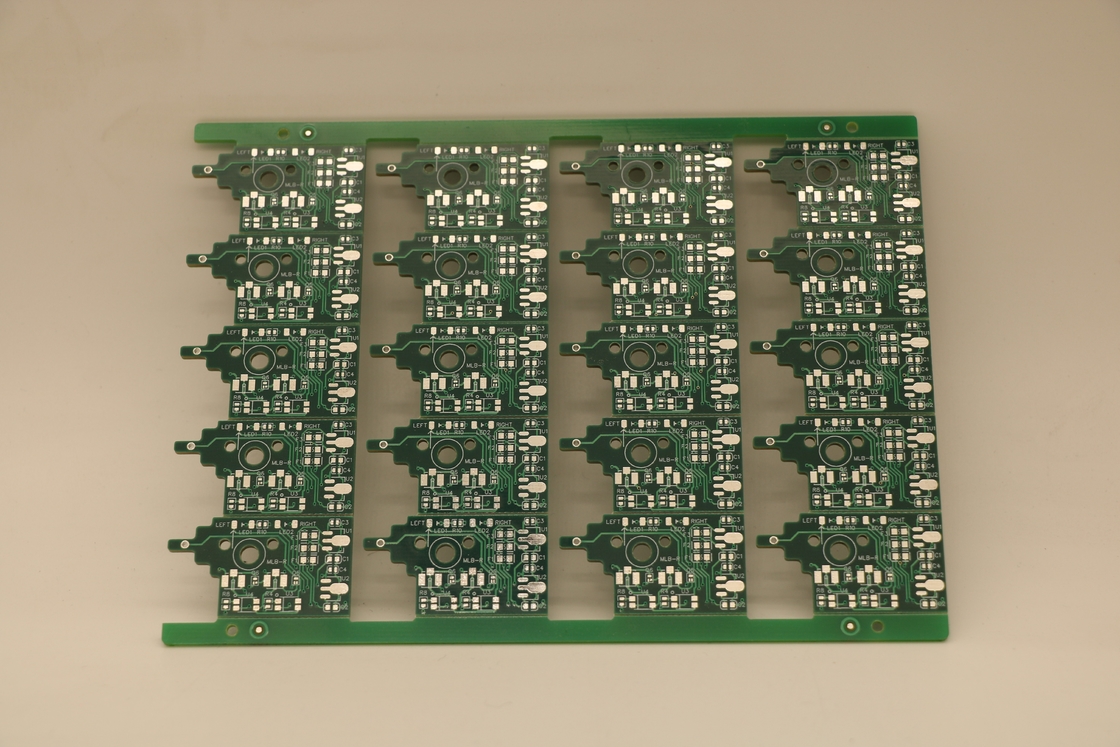

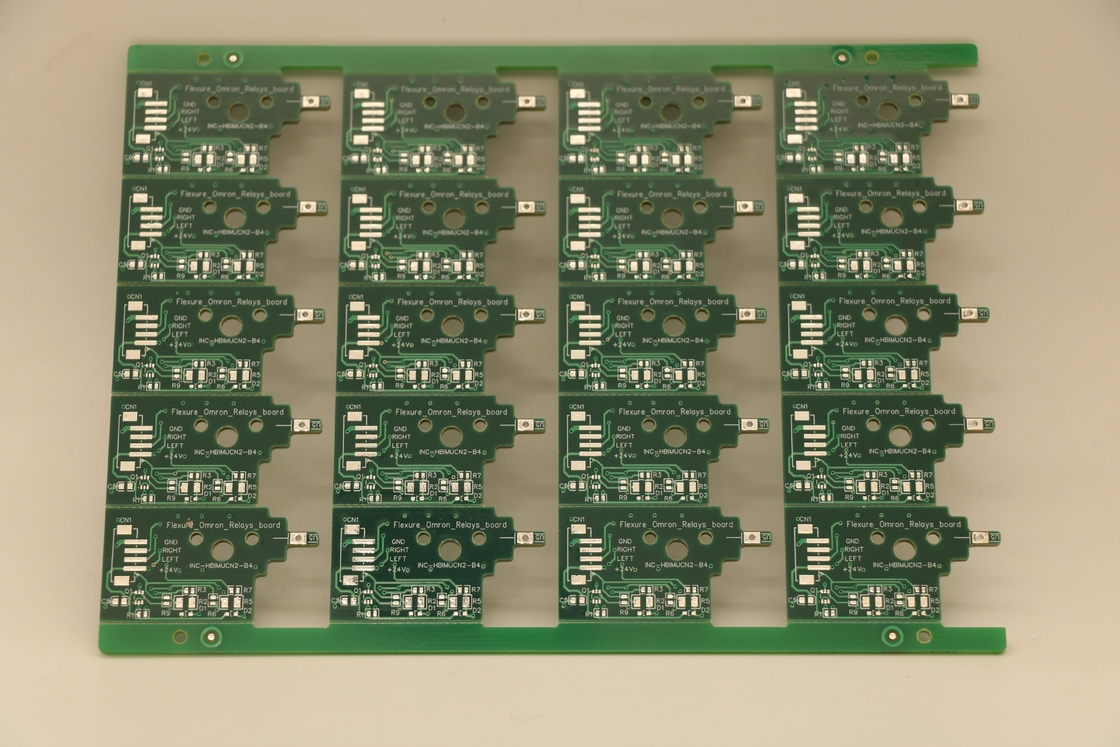

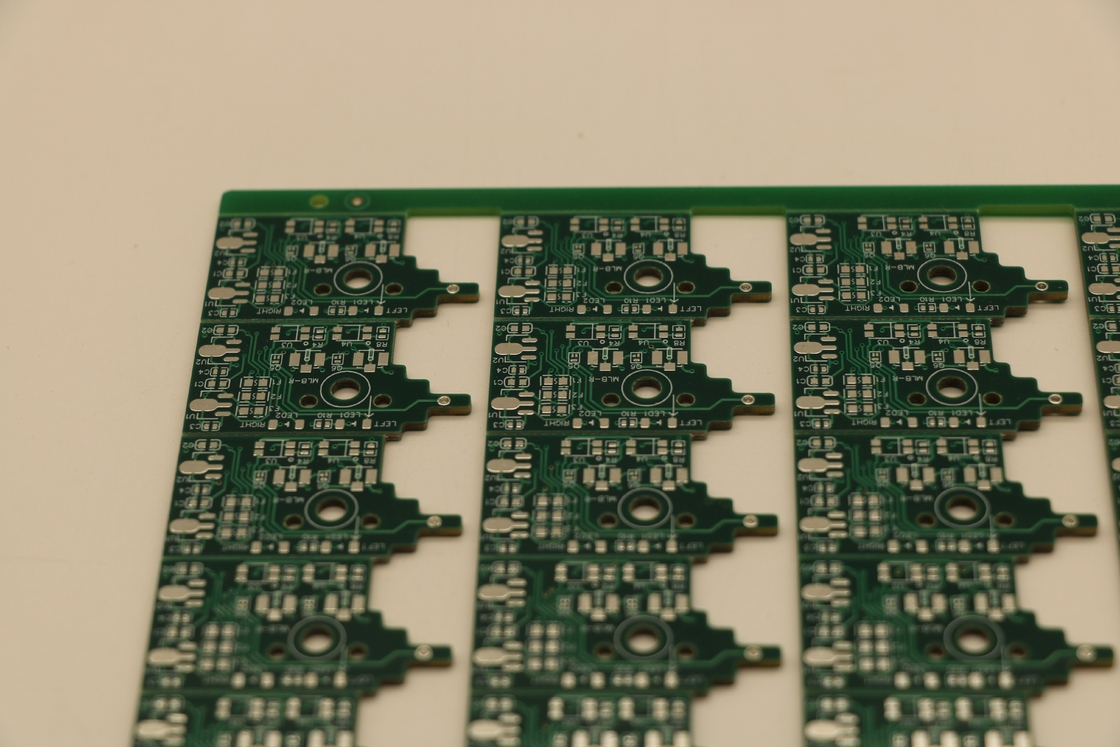

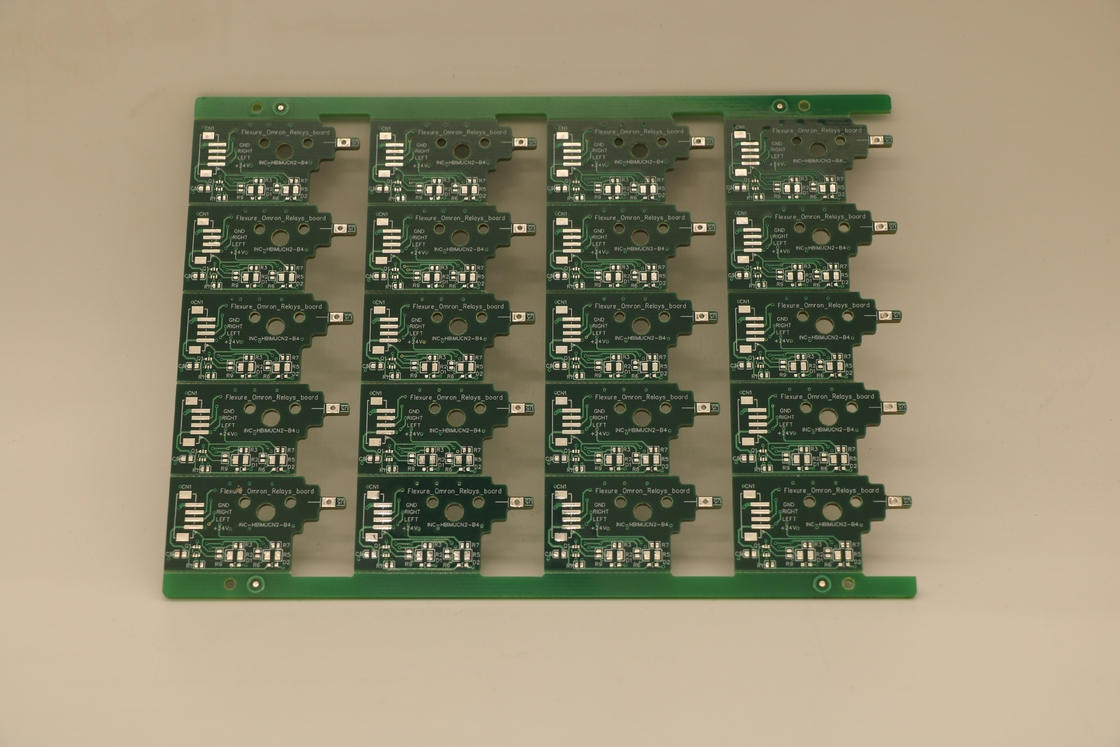

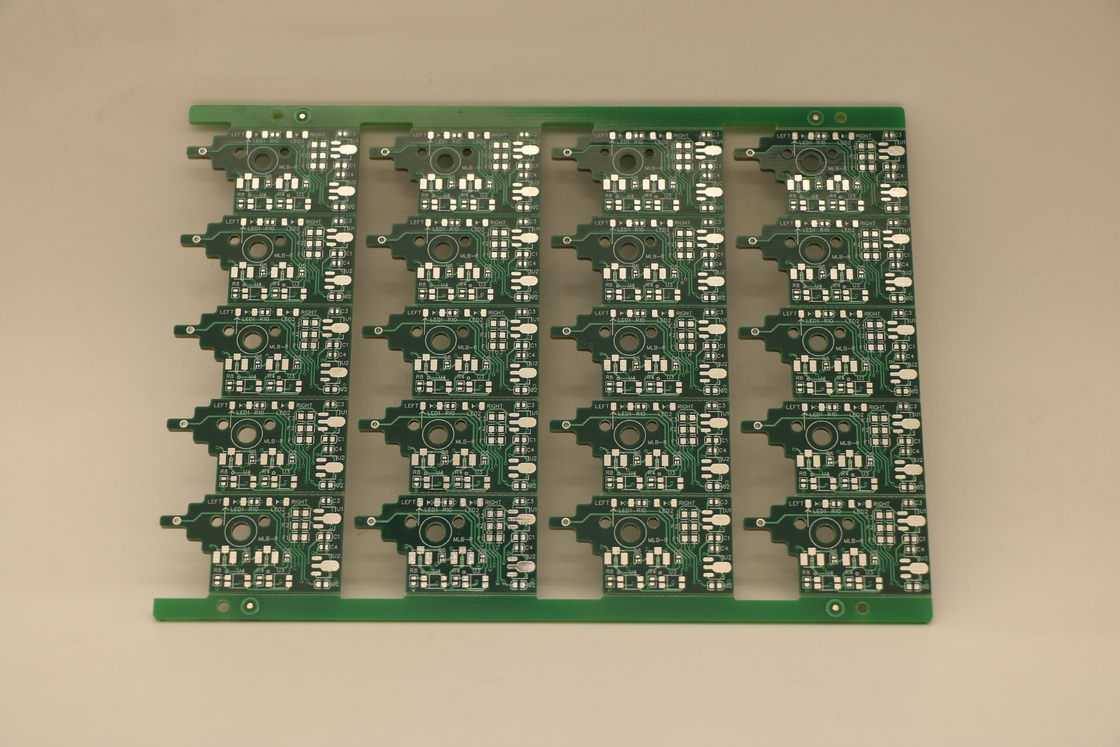

Photoes of this 4-10 layers FR4 1OZ ENIG/HASL/OSP HDI Printed Circuit Boards With Blind&Burried holes

4-10 layers FR4 HDI Printed Circuit Boards Blind holes Burried holes impedance control BGA4-10 layers FR4 HDI Printed Circuit Boards Blind holes Burried holes impedance control BGA4-10 layers FR4 HDI Printed Circuit Boards Blind holes Burried holes impedance control BGA4-10 layers FR4 HDI Printed Circuit Boards Blind holes Burried holes impedance control BGA4-10 layers FR4 HDI Printed Circuit Boards Blind holes Burried holes impedance control BGA4-10 layers FR4 HDI Printed Circuit Boards Blind holes Burried holes impedance control BGA

What Kingsum Electronic Circuit can do for you:

  • PCB manufacturing (prototype, small to medium, mass production)
  • Components Sourcing
  • PCB Assembly/SMT/DIP


To get a full quotation of the PCB/PCBA, pls provide the information as below:

  • Gerber File, with detail specification of the PCB
  • BOM List (Better with excel fomart)
  • Photoes of the PCBA (If you have done this PCBA before)


Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:

Capacity Double Sided: 12000 sq.m / month
Multilayers: 8000sq.m / month
Min Line Width/Gap 4/4 mil (1mil=0.0254mm)
Board Thickness 0.3~4.0mm
Layers 1~20 layers
Material FR-4, Aluminum, PI
Copper Thickness 0.5~4oz
Material Tg Tg140~Tg170
Max PCB Size 600*1200mm
Min Hole Size 0.2mm (+/- 0.025)
Surface Treatment HASL, ENIG, OSP
