| Происхождение: | Китай |
|---|---|
| Название марки: | Электронные схемы Kingsum |
| Сертификация: | ISO9001, TS16949, UL, RoHS |
| Модель: | РСБ - S - 25942 |
| Минимальное количество заказов: | Один. |
|---|---|
| Цены: | Доллар США / шт. |
| Детали упаковки: | Вакуумная упаковка |
| Время поставки: | Пять рабочих дней |
| Условия оплаты: | T / T, Western Union Переводы, Paypal |
| Потенциал предложения: | 20 000 м2 / месяц |
| Layers: | 2 | Thickness: | 1.6mm |
|---|---|---|---|
| Copper: | 1/1 Oz | Surface: | HASL LF |
| Soldmask: | Blue | Silkcreen: | White |
| High Light: | electronics circuit board,rigid flex circuit board | ||
What is double sided PCB?
The double sided PCB is a printed circuit board which is coated with copper on both sides of the top layer and the bottom layer, and both sides can be soldered with a layer of insulating layer in the middle, which is a commonly used printed circuit board. Both sides can be routed, which greatly reduces the difficulty of wiring, and is therefore widely used.
Detail Specifications for this double sided FR4 PCB with blue soldmask HASL Lead Free 10 pcs panelization
| Layers | 2 |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1/1 oz |
| Surface Treatment | ENIG 1u" |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
Kingsum Electronic provide the service as below:
In order to get a full quotation of the PCB/PCBA, pls provide below information:

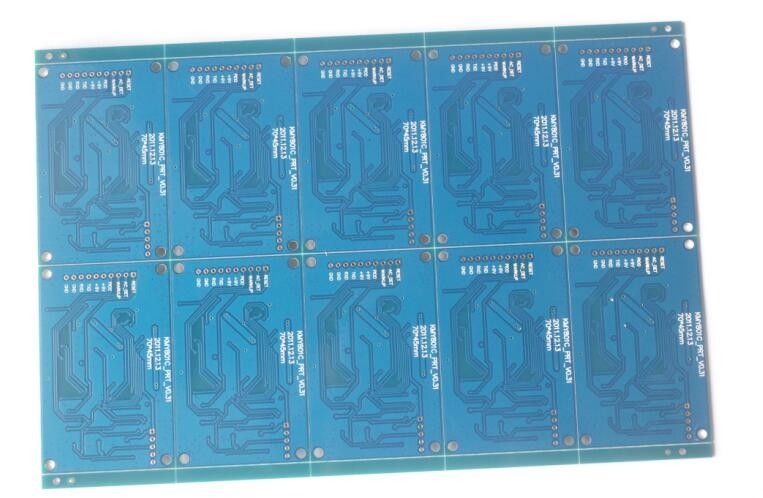

To see more detail photoes for this double sided FR4 PCB with blue soldmask HASL Lead Free 10 pcs panelization, pls refer to below:
