4 - слойная электронная печатная плата, пропитанная золотом IPC класс 3

Подробная информация о продукции:

Происхождение: Китай
Название марки: Электронные схемы Kingsum
Сертификация: ISO9001, TS16949, UL, RoHS
Модель: РСБ - S - 01658456

Условия оплаты и перевозки:

Минимальное количество заказов: Один.
Цены: Доллар США / шт.
Детали упаковки: Вакуумная упаковка
Время поставки: От 7 до 8 рабочих дней
Условия оплаты: T / T, Western Union Переводы, Paypal
Потенциал предложения: 20 000 м2 / месяц


Получить предложение

Общий обзор

Detailed Product Description
Layers: 4 Thickness: 1.6mm
Test: IPC Class 3 ENIG: 2u"
Min Track: 0.15mm Copper: 1.5oz
High Light: electronics circuit board,flex pcb prototype
IPC Class 3 4 layers 1.6mm Immersion Gold 2u" min 0.15mm track large size PCB


Detail Specifications:

 Layers  4
 Material  FR-4
 Board Thickness  1.6 mm
 Copper Thickness  1.5 oz
 Surface Treatment  Immersion Gold 2u"
 Soldmask & Silkscreen  Green & White
 Quality Standard  IPC Class 3, 100% E-testing
 Certificates  TS16949, ISO9001, UL, RoHS

We provide one-stop service including:
  • PCB manufacturing
  • Components sourcing
  • SMT,DIP, PCB assembly

To get a full quotation of the PCB/PCBA, pls provide the information as below:

  • Gerber File, with detail specification of the PCB such as the layers, material, board thickness, copper thickness, surface treatment, etc.
  • BOM List (Better with excel fomart with detail information for each components)
  • Photoes of the PCBA (If you have done this PCBA before, that would help us confirm better for the exact components)

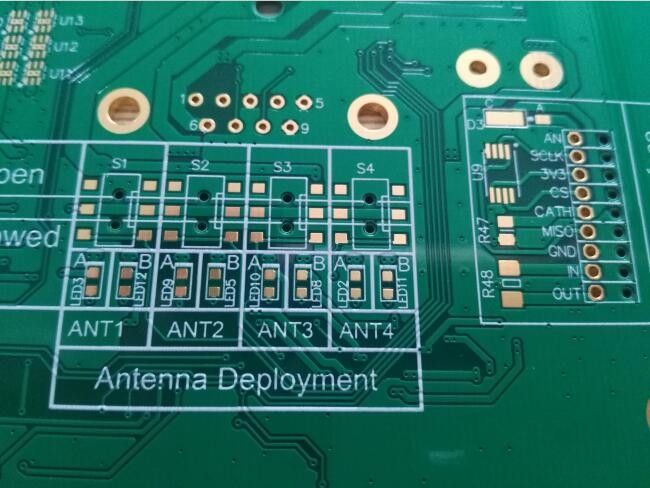

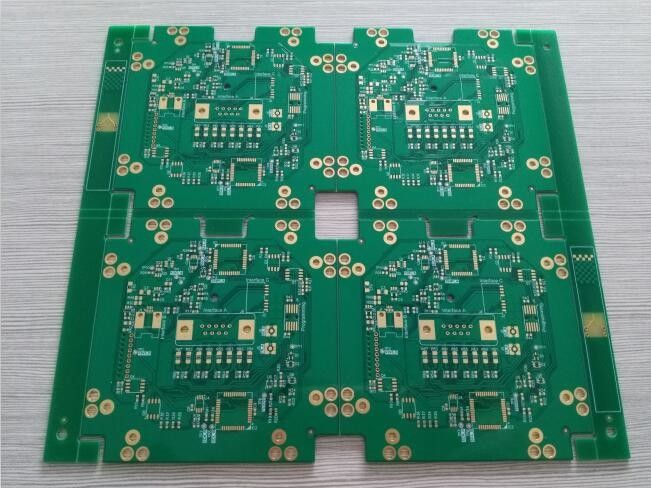

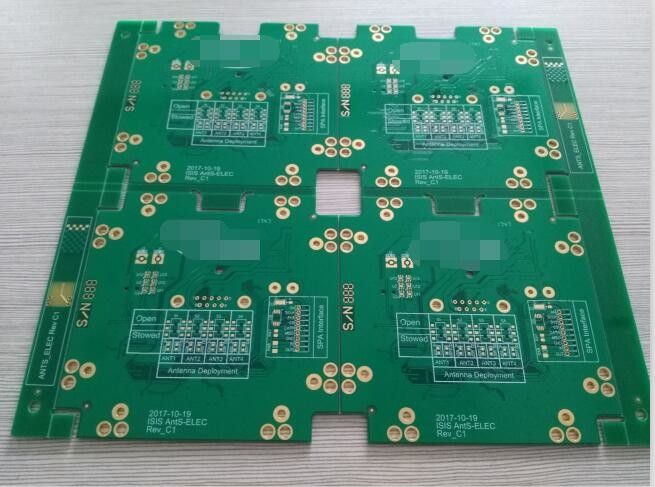

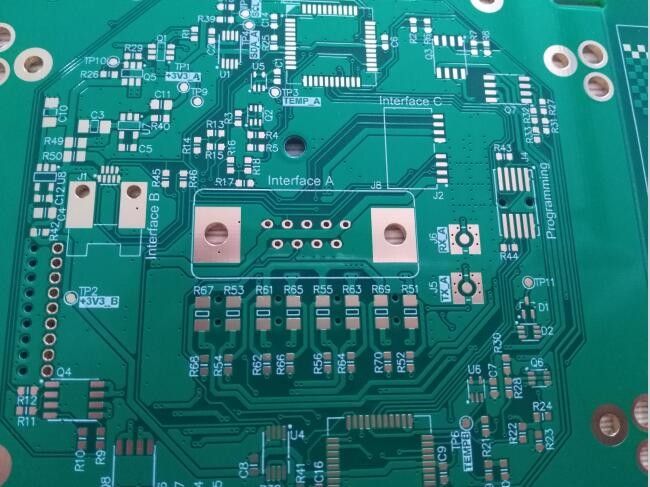

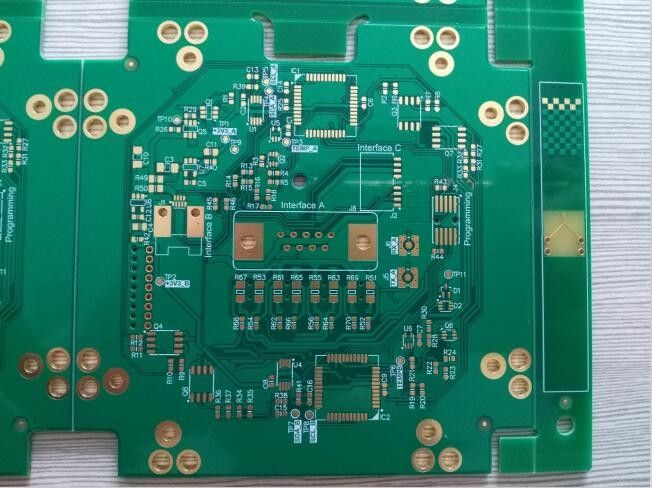

More photoes for this
IPC Class 3 4 layers 1.6mm Immersion Gold 2u" min 0.15mm track large size PCB

4 Layers Electronic Printed Circuit Board Immersion Gold IPC Class 3

4 Layers Electronic Printed Circuit Board Immersion Gold IPC Class 3
