| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum ElectronicPCB |
| Certification: | UL, ROHS, REACH, TS16949 |
| Model Number: | CCTV-PCB-J-008 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Vacuum bag |
| Delivery Time: | 8-10days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000pcs/month |
| PCB Material: | FR4 | Spec: | As Per Customer Gerber Files |
|---|---|---|---|
| Layers: | 4Layers | Board Thickness: | 0.8-1.6mm |
| Surface Finish: | ENIG 1-2U" | Quality Standard: | IPC Class 2 Or 3 |
| High Light: | cctv camera circuit board,ip camera pcb | ||

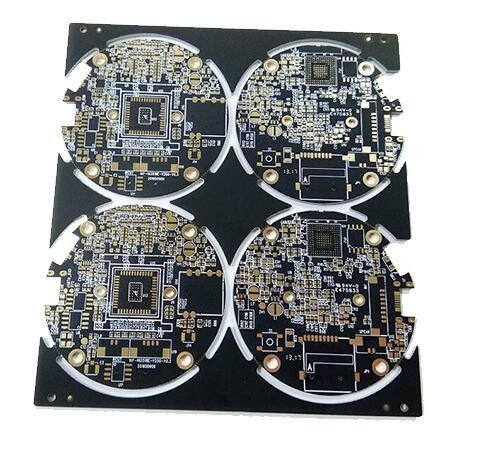

CCTV Camera PCB board
Layer: 2-6Layers
Materials: FR4 laminate, RoHS Directive-compliant
PCB thickness: 0.8-1.6mm
Final copper: 1-3oz
Min hole: 0.2mm
Min line width/space: 5/5 mil
Solder masks: Black
Legend: White
Surface: OSP/HAL lead-free/immersion gold/immersion tin/immersion silver
Outline: rout and score/V-cut
E-test: 100%
Inspection standard: IPC-A-600H/IPC-6012B, class 2/3
Outgoing reports: final Inspection, E-test, solderability test, micro section
Certifications: UL, SGS, RoHS Directive-compliant, ISO/TS16949:2009
What Kingsum Electronic Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
