| Place of Origin: | China |
|---|---|
| Brand Name: | OEM ODM |
| Certification: | ISO9001, TS16949, UL, RoHS |
| Model Number: | PCBA-J-075 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD/pc |
| Packaging Details: | Bubble Wrap |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20,000 Square Meters / Month |
| Categary: | SMT PCBA Assembly | Material: | FR-4 |
|---|---|---|---|
| Layers: | 2 Layers | Board Thickness: | 1.6mm |
| Copper: | 1oz | Surface: | HASL LF |
| Soldmask: | Green | Silk Screen: | White |
| Standard Testing: | IPC Class 2 | Used For Products: | As Customer Design |
| High Light: | fr4 printed circuit board,multilayer circuit board | ||
OEM ODM SMT FR4 1OZ ENIG Printed Circuit Board Assembly with customer BOM
Detail Specifications:
| Layers | 2 |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Surface Treatment | HASL LF |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |

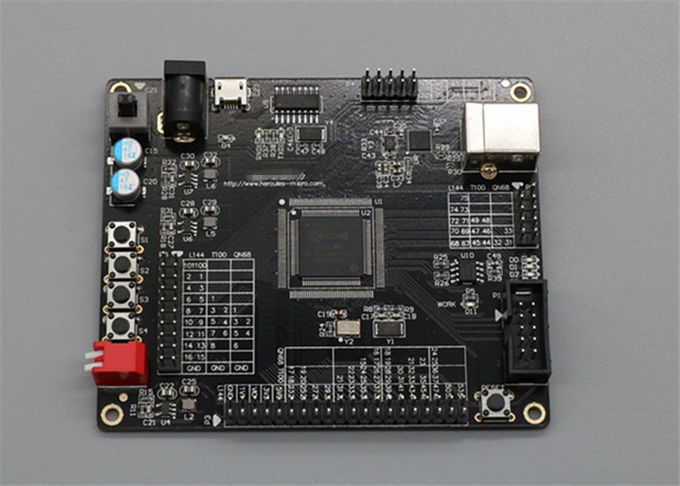

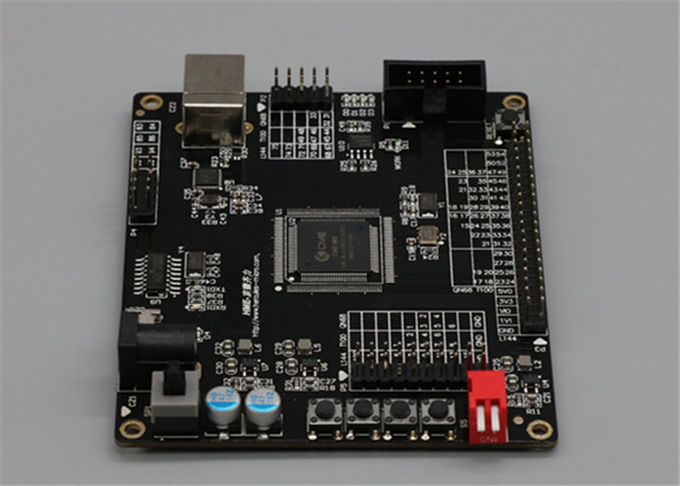

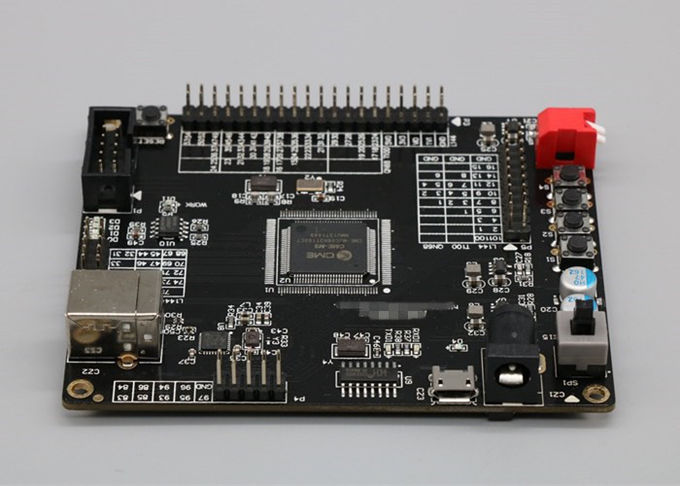

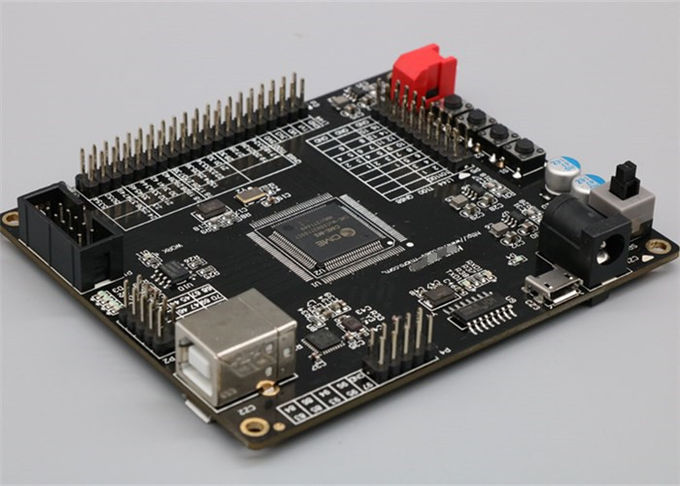

Photoes of this OEM ODM SMT FR4 1OZ ENIG Printed Circuit Board Assembly with customer BOM
What Kingsum Electronic Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
