| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronic |
| Certification: | UL/ROHS/ ISO9001 |
| Model Number: | Kingsum ElectronicA-0198 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Packaging Details: | P/P |
| Delivery Time: | 10 Work days |
| Payment Terms: | Western Union, T/T, L/C, D/P, MoneyGram |
| Supply Ability: | 100000 pieces |
| Product Name: | PCBA | Place Of Origin: | Guangdong , China |
|---|---|---|---|
| Min. Line Spacing: | 3 Mil (0.075 Mm) | Min. Hole Size: | 3mil (0.075mm) |
| Brand Name: | OEM | SMT DIP Assembly: | Support |
| Type: | SMT Assembly | ||
| High Light: | fr4 printed circuit board,multilayer circuit board | ||
Smart Electronics Pcba Printed Circuit Board Pcb Industrial Control Board PCBA
1. Features
1. One Stop OEM Service, Made in Shenzhen of China
2. Manufactured by Gerber File and BOM List from Customer
3. FR4 Material, Meet 94V0 standard
4. SMT, DIP technology suport
5. Lead Free HASL, Environmental Protection
6. UL, CE, ROHS Compliant
7. Shipping By DHL,UPS, TNT, EMS or Customer requirement
2. PCBA Technical capability
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
| Max. component height::25mm | |
| Max. PCB size:680×500mm | |
| Min. PCB size:no limited | |
| PCB thickness:0.3 to 6mm | |
| PCB weight:3KG | |
| Wave-Solder | Max. PCB width:450mm |
| Min. PCB width: no limited | |
| Component height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum | |
| Surface Finish:plating Au, plating sliver , plating Sn | |
| Air bladder rate:less than20% | |
| Press-fit | Press range:0-50KN |
| Max. PCB size:800X600mm | |
| Testing | ICT,Probe flying,burn-in,function test,temperature cycling |

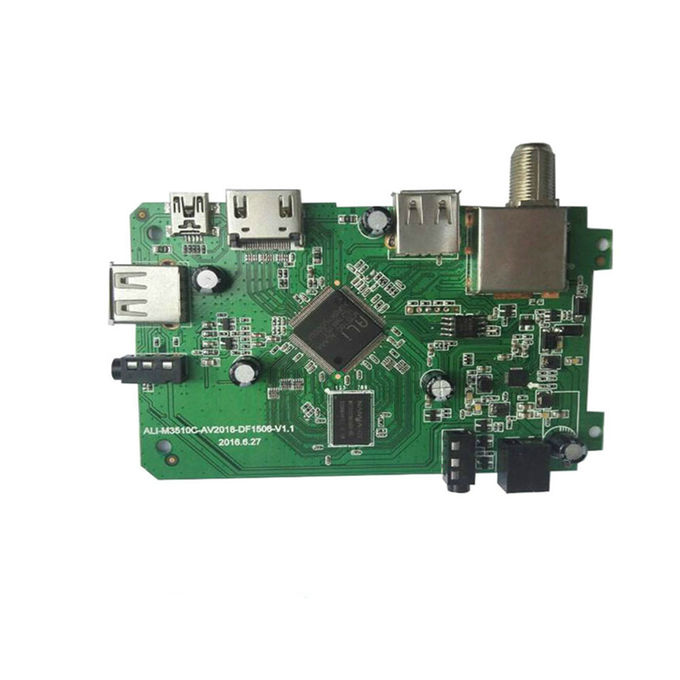

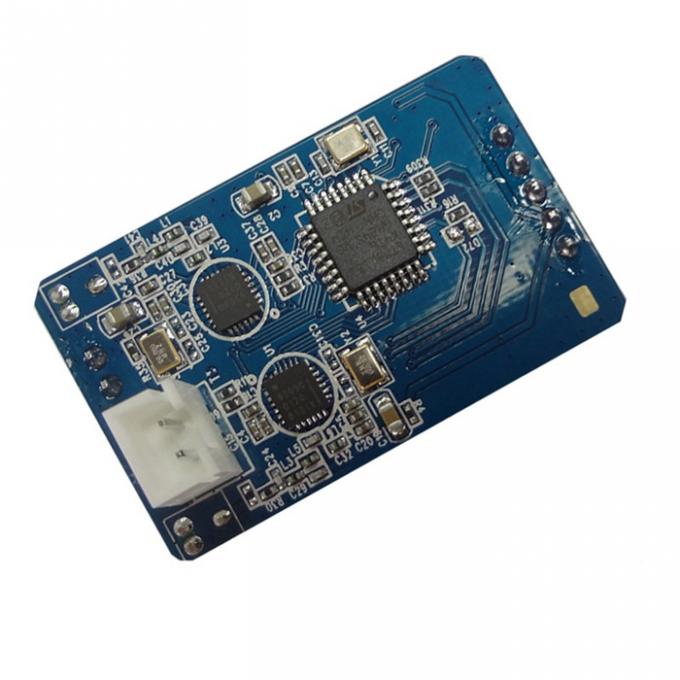

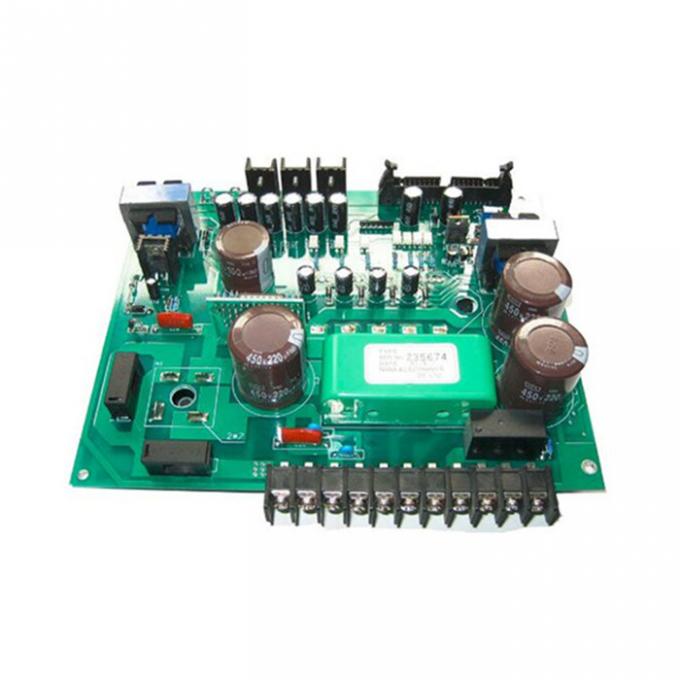

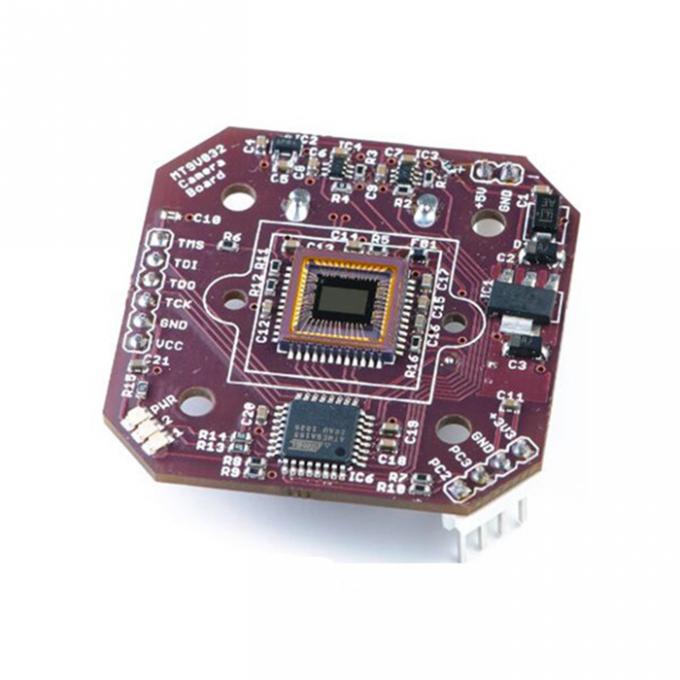

3. PCBA Pictures
