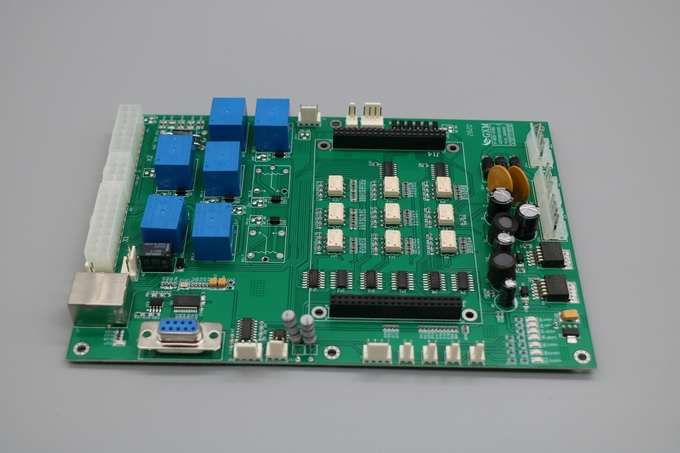

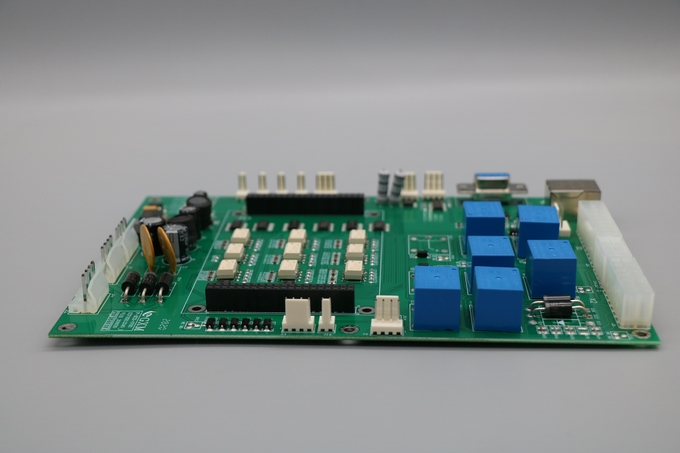

Detail Specifications:

Layers	2
Material	FR-4
Board Thickness	1.6mm
Copper Thickness	5oz
Surface Treatment	HASL LF
Soldmask & Silkscreen	Blue & White
Quality Standard	IPC Class 2, 100% E-testing
Certificates	TS16949, ISO9001, UL, RoHS

What Kingsum Electronic Circuit can do for you:

• PCB & PCBA Design
• PCB manufacturing (prototype, small to medium, mass production)
• Components Sourcing
• PCB Assembly/SMT/DIP

To get a full quotation of the PCB/PCBA, pls provide the information as below:

• Gerber File, with detail specification of the PCB
• BOM List (Better with excel fomart)
• Photoes of the PCBA (If you have done this PCBA before)

Company Informaiton:

Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!

Manufacturer Capacity:

Capacity	Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month
Min Line Width/Gap	4/4 mil (1mil=0.0254mm)
Board Thickness	0.3~4.0mm
Layers	1~20 layers
Material	FR-4, Aluminum, PI
Copper Thickness	0.5~4oz
Material Tg	Tg140~Tg170
Max PCB Size	600*1200mm
Min Hole Size	0.2mm (+/- 0.025)
Surface Treatment	HASL, ENIG, OSP

SMT Capacity

Advantage Of PCB Assembly Service

• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test



OEM/ODM/EMS Services For PCBA:

PCBA, PCB Board assembly: SMT & PTH & BGA

PCBA and enclosure design

Components sourcing and purchasing

Quick prototyping

Plastic injection molding

Metal sheet stamping

Final assembly

Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

Custom clearance for material importing and product exporting

Now we have been a factory which can provide one-stop service,
from the PCB production, the components purchasing to the components assemble.



With years of experience in PCB manufacturing and PCB assembly, Jingbang provides flexible manufacturing options that adapt to cost targets, delivery requirements and fluctuating demands in volume. We cover a range of services such as:



FAQ

Q1: Are you a factory or trading company?

-----We are a factory,Our company is electronics manufacturers.

Q2: Do you accept sample order?

------Yes, we can accept sample order.

Q3: What's your warranty policy?

-----We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.

Q4: What's your payment terms?

------We accept T/T 100%.

Q5:What's the lead time for mass order?

------Normally, it takes about 20-35 days, depends on the order quantity.
