| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronic |
| Certification: | UL/ROHS/ ISO9001 |
| Model Number: | Kingsum ElectronicA-080 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Packaging Details: | P/P |
| Delivery Time: | 10 ~ 20 Work days |
| Payment Terms: | Western Union, T/T, L/C, D/P, MoneyGram |
| Supply Ability: | 100000 pieces |
| Product Name: | PCBA | Place Of Origin: | Guangdong , China |
|---|---|---|---|
| Min. Line Spacing: | 3 Mil (0.075 Mm) | Min. Hole Size: | 3mil (0.075mm) |
| Brand Name: | OEM | Components Purchasing: | OK |
| SMT DIP Assembly: | Support | Type: | SMT Assembly |
| Silkscreen: | White | Soldmask: | Red/black/green |
| Material: | FR4 | Surface: | ENIG/HASL |
| Copper: | 2OZ | Layer: | 6 Layer |
| High Light: | DIP PCBA Assembly Service,4 Layers FR4 Printed Circuit Board,HASL FR4 Printed Circuit Board | ||
PCB Electronic Circuit Board Assembly SMT
1. Features
1. One Stop OEM Service, Made in Shenzhen of China
2. Manufactured by Gerber File and BOM List from Customer
3. FR4 Material, Meet 94V0 standard
4. SMT, DIP technology suport
5. Lead Free HASL, Environmental Protection
6. UL, CE, ROHS Compliant
7. Shipping By DHL,UPS, TNT, EMS or Customer requirement
2. PCBA Technical capability
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
| Max. component height::25mm | |
| Max. PCB size:680×500mm | |
| Min. PCB size:no limited | |
| PCB thickness:0.3 to 6mm | |
| PCB weight:3KG | |
| Wave-Solder | Max. PCB width:450mm |
| Min. PCB width: no limited | |
| Component height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum | |
| Surface Finish:plating Au, plating sliver , plating Sn | |
| Air bladder rate:less than20% | |
| Press-fit | Press range:0-50KN |
| Max. PCB size:800X600mm | |
| Testing | ICT,Probe flying,burn-in,function test,temperature cycling |
3 . Specification Of PCB Assembly Service
| 1 | Layer | 1-30 layer |
| 2 | Material | FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum |
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 500mm*500mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing, Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076, NTPH:±0.05 |
| 14 | Certificate | UL, ISO9001, ISO14001, ROHS, CQC |
| 15 | Profiling Punching | Routing, V-CUT, Beveling |
| 16 | Assembly Service | Providing OEM service to all sorts of printed circuit board assembly |

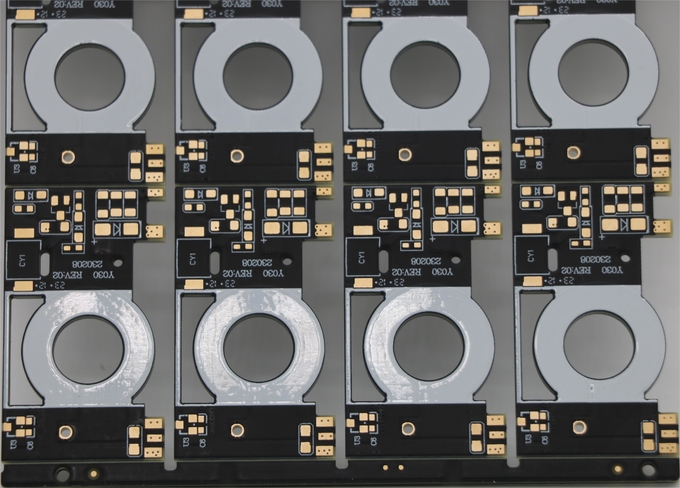

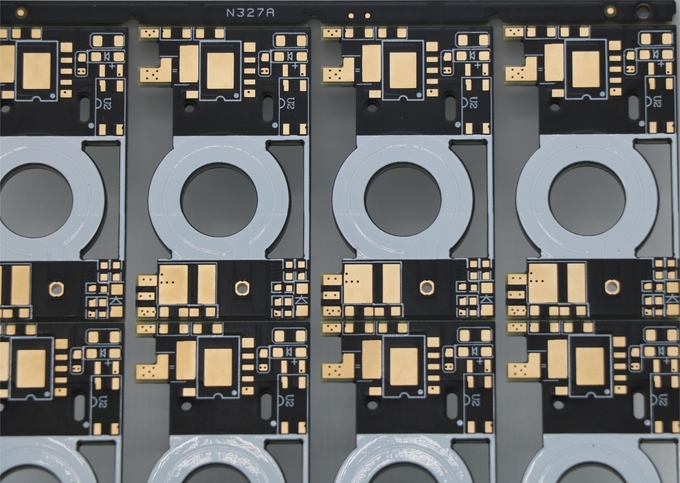

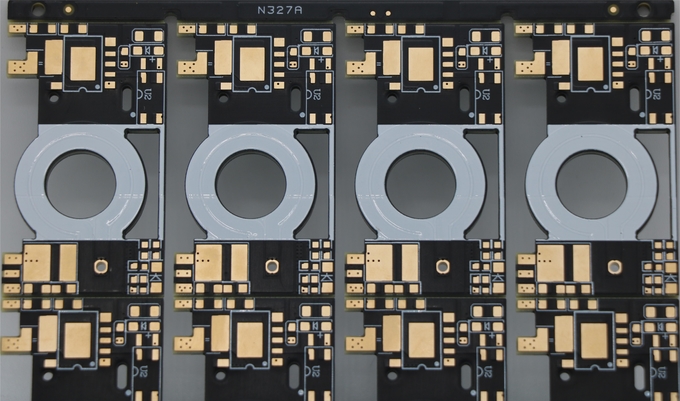

4. PCBA Pictures
Products Application:
1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense
8, Automotive
9, Smart Home
10, Industrial Automation
11, Medical Devices
12, New Energy
And so on
FAQ
Q1: Are you a factory or trading company?
-----We are a factory,Our company mainly sells PCB Assembly Service
Q2: Do you accept sample order?
------Yes, we can accept sample order.
Q3: What's your warranty policy?
-----We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.
Q4: What's your payment terms?
------We accept T/T in advance, paypal, or alibaba trade assurance.
Q5:What's the lead time for mass order?
------Normally, it takes about 20-35 days, depends on the order quantity.
