8 Layers ITEQ FR4 PCB Manufacturer 1OZ 2oz Copper PCBA Printed Circuit Board

Product Details:

Place of Origin:	China
Brand Name:	OEM ODM
Certification:	ISO9001, TS16949, UL, RoHS
Model Number:	PCB-J-030

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD/pc
Packaging Details:	Vacuum package
Delivery Time:	9~10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	20,000 Square Meters / Month

GET A QUOTE

Detailed Product Description

Size:	As Per Gerber	Material:	FR-4 ITEQ
Layers:	8 Layers	Board Thickness:	1.6 Mm
Copper:	1 Oz	Surface:	ENIG
Soldmask:	Green	Silk Screen:	White
Standard Testing:	IPC Class 2	Hard Gold:	Golden Finger
Use For Products:	Medical Equipment
High Light:	rigid flex pcb,pcb printed circuit board

8Layers ITEQ FR4 High TG 1OZ 2OZ ENIG Multilayer PCB board

Detail Specifications:

Layers	8
Material	FR-4
Board Thickness	1.6mm
Copper Thickness	1oz
Surface Treatment	ENIG
Soldmask & Silkscreen	Green & White
Quality Standard	IPC Class 2, 100% E-testing
Certificates	TS16949, ISO9001, UL, RoHS

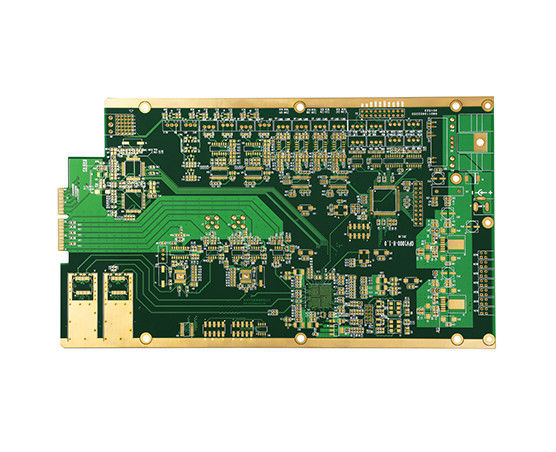

Details photo: 8Layers ITEQ FR4 High TG 1OZ 2OZ ENIG Multilayer PCB board

What Kingsum Electronic Circuit can do for you:

PCB manufacturing (prototype, small to medium, mass production)
Components Sourcing
PCB Assembly/SMT/DIP

To get a full quotation of the PCB/PCBA, pls provide the information as below:

Gerber File, with detail specification of the PCB
BOM List (Better with excel fomart)
Photoes of the PCBA (If you have done this PCBA before)

Company Informaiton:

Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!

Manufacturer Capacity:

Capacity	Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month
Min Line Width/Gap	4/4 mil (1mil=0.0254mm)
Board Thickness	0.3~4.0mm
Layers	1~20 layers
Material	FR-4, Aluminum, PI
Copper Thickness	0.5~4oz
Material Tg	Tg140~Tg170
Max PCB Size	600*1200mm
Min Hole Size	0.2mm (+/- 0.025)
Surface Treatment	HASL, ENIG, OSP
