| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronic Circuit |
| Certification: | ISO9001, TS16949, UL, RoHS |
| Model Number: | PCB-S-019 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD/pc |
| Packaging Details: | Vacuum package |
| Delivery Time: | 9~10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20,000 Square Meters / Month |
| Size: | 180mm*220.5mm | Material: | FR-4 |
|---|---|---|---|
| Layers: | 10 Layers | Board Thickness: | 2.6 Mm |
| Copper: | 4oz | Surface: | ENIG 1U" |
| High Light: | rigid flex pcb,pcb printed circuit board | ||
Detail Specifications:
| Layers | 10 |
| Material | FR-4 |
| Board Thickness | 2.6mm |
| Copper Thickness | 4oz |
| Surface Treatment | ENIG 1u" |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
What Kingsum Electronic Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL LF, ENIG, OSP |
SMT Capacity

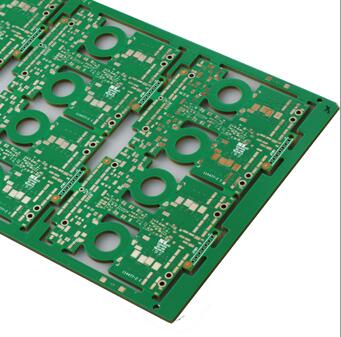

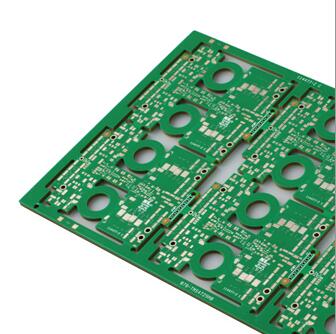

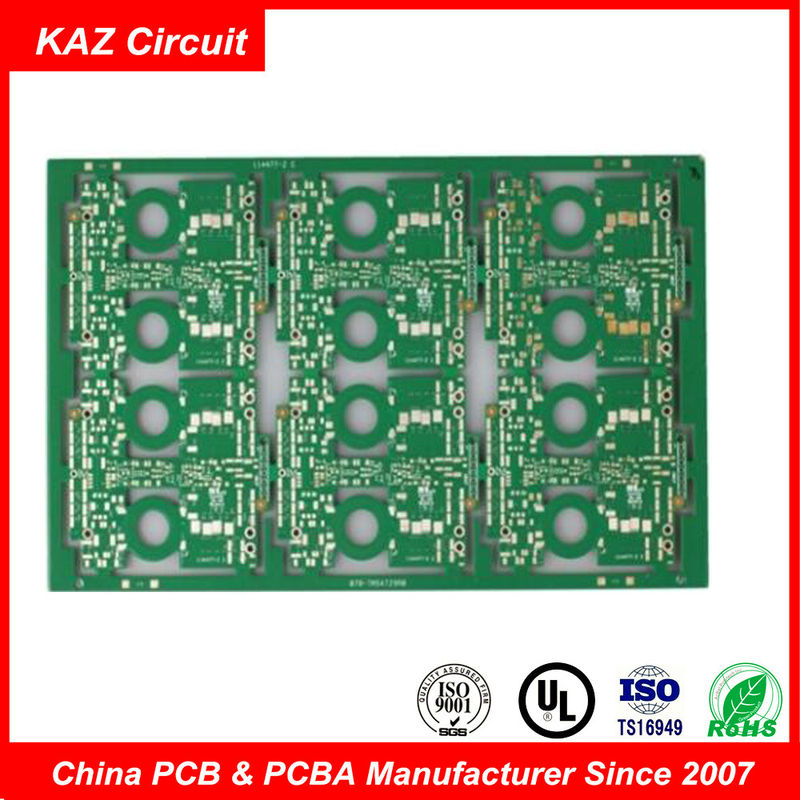

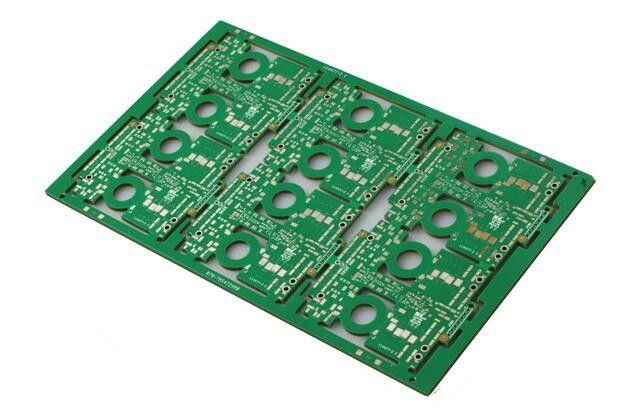

10 layers FR-4 2.6mm 4oz copper ENIG PCB for power supply manufacturer
