| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronic Circuit |
| Certification: | ISO9001, TS16949, UL, RoHS |
| Model Number: | PCB-S-017 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD/pc |
| Packaging Details: | Vacuum package |
| Delivery Time: | 9~10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20,000 Square Meters / Month |
| Size: | 97mm*192.8mm | Material: | FR-4 Shengyi S1000-2 |
|---|---|---|---|
| Layers: | 4 Layers | Board Thickness: | 1.0 Mm |
| Copper: | 1oz | Surface: | HASL |
| High Light: | custom printed circuit board,pcb printed circuit board | ||
Detail Specifications:
| Layers | 4 |
| Material | FR-4 Shengyi S1000-2 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Surface Treatment | HASL |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
What Kingsum Electronic Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
SMT Capacity

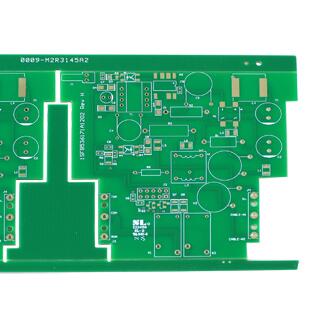

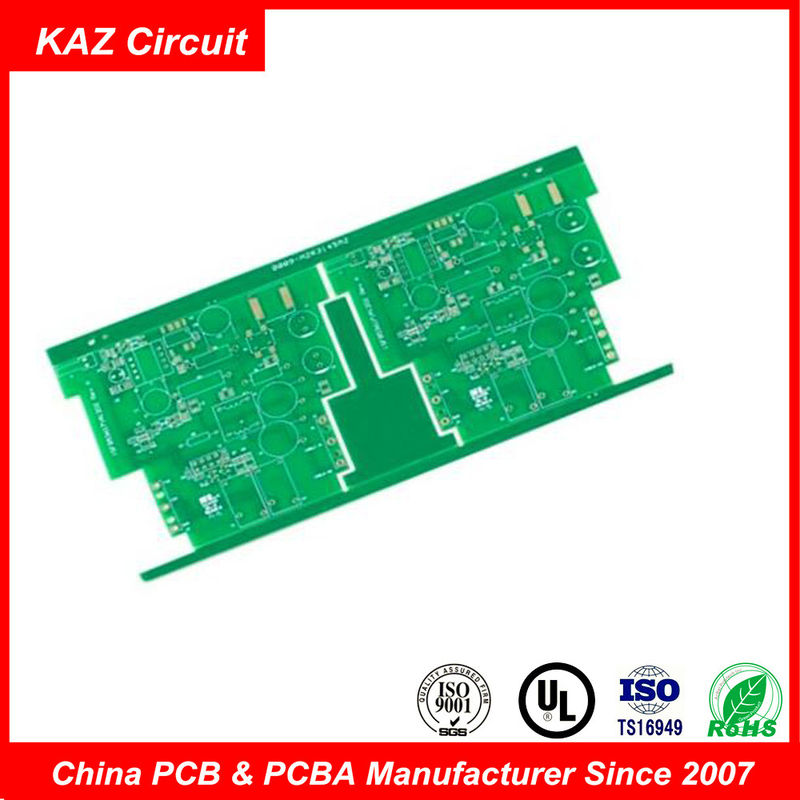

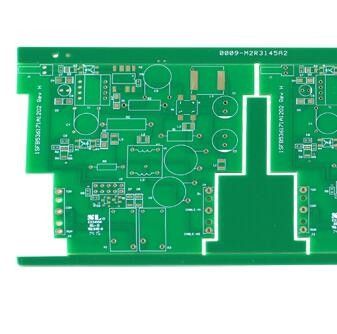

4 layers FR-4 Shengyi S1000-2 1oz HASL PCB for high frequency power supply
