| 原产地： | 中国 |
|---|---|
| 品牌名称： | Kingsum电子电路 |
| 认证： | ISO9001、TS16949、UL、RoHS |
| 型号： | PCB-S-02642 |
| 最小订单数量： | 1个 |
|---|---|
| 价格： | 美元/个 |
| 包装细节： | 真空包装 |
| 交货时间： | 7~8个工作日 |
| 付款条件： | T/T，西联汇款，Paypal |
| 供应能力： | 20000平方米/月 |
| Material: | FR-4 | Layers: | 10 Layers |
|---|---|---|---|
| Board Thickness: | 1.6mm | Copper: | 2 Oz |
| Surface: | ENIG 1u" | Standard Testing: | IPC Class 2 |
| High Light: | rigid flex pcb,pcb printed circuit board | ||

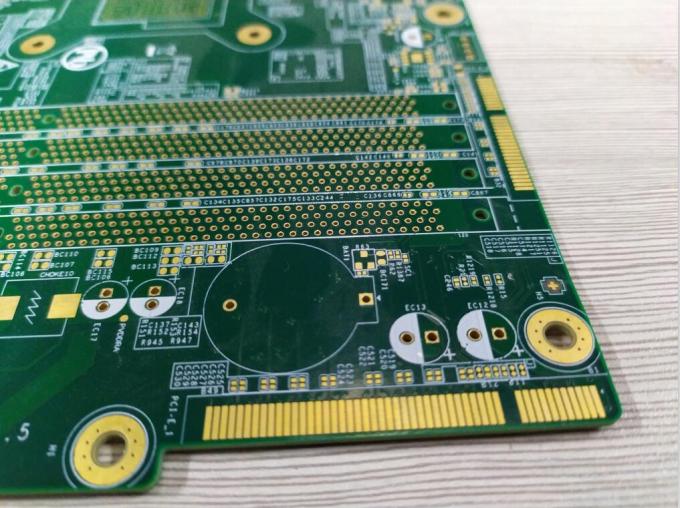

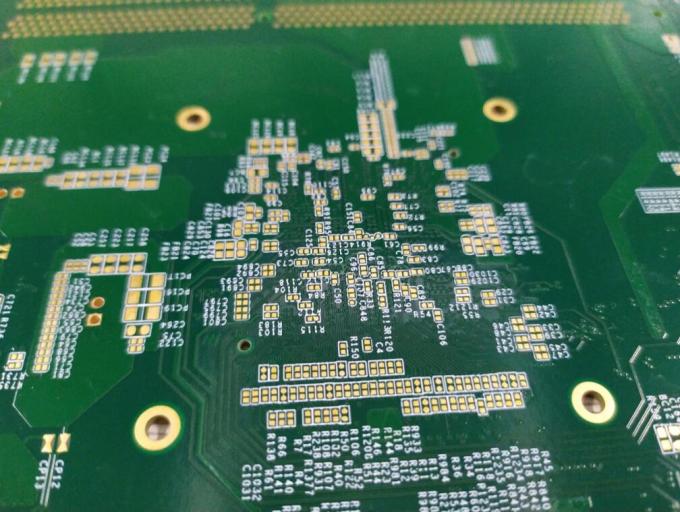

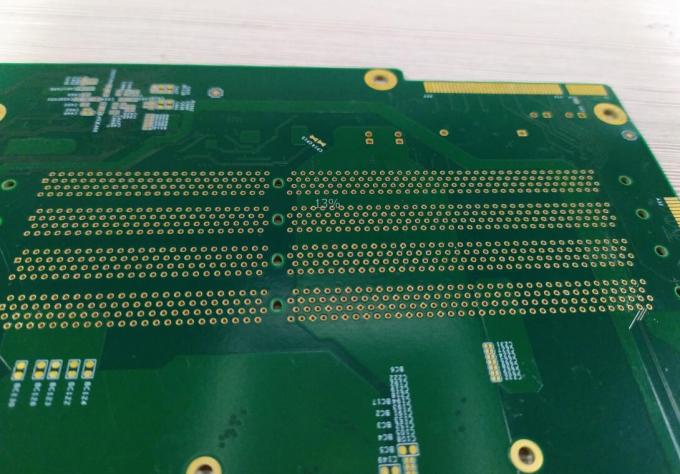

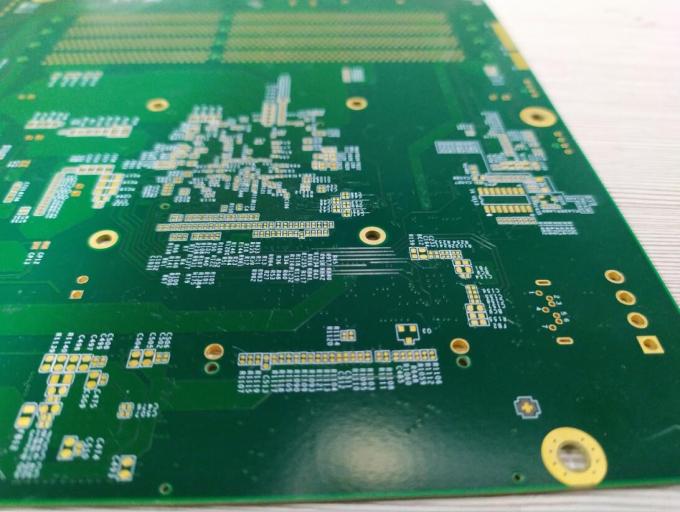

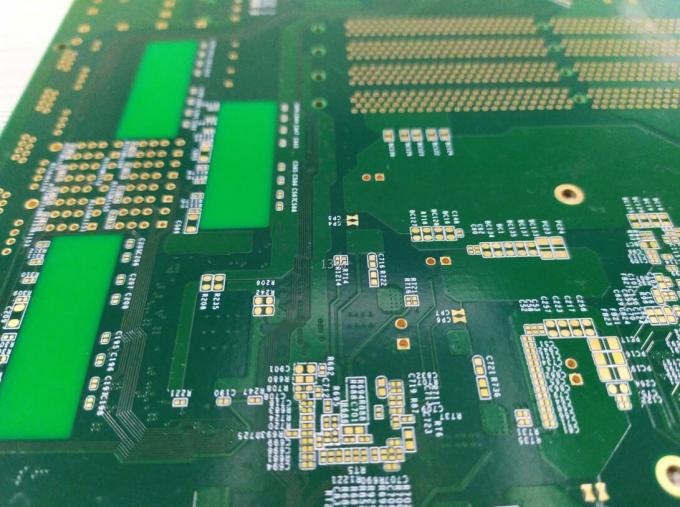

Detail Specifications:
| Layers | 10 |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 2oz |
| Surface Treatment | ENIG 1u" |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
What Kingsum Electronic Circuit can do for you:
PCB Assembly/SMT/DIP
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
SMT Capacity
