10 layers HDI FR4 PCB Circuit board ENIG green soldmask min drill hole 0.1mm

Product Details:

Place of Origin: China
Brand Name: Kingsum Electronic Circuit
Certification: ISO9001, TS16949, UL, RoHS
Model Number: PCB-S-041932

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD/pc
Packaging Details: Bubble Wrap
Delivery Time: 2~3 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 20,000 Square Meters / Month




GET A QUOTE

Overview

Detailed Product Description
Categary: Multilayer PCB Material: FR-4
Layers: 10 Layers Board Thickness: 1.6mm
Copper: 1oz Surface: ENIG 1u"
High Light: rigid flex pcb,pcb printed circuit board
10 layers HDI FR4 PCB Circuit board ENIG green soldmask min drill hole 0.1mm



Detail Specifications:

 Layers  10
 Material  FR-4
 Board Thickness  1.6mm
 Copper Thickness  1oz
 Surface Treatment  ENIG 1u"
 Soldmask & Silkscreen  Green & White
 Quality Standard  IPC Class 2, 100% E-testing
 Certificates  TS16949, ISO9001, UL, RoHS

What we can do:

  • PCB manufacturing (prototype, small to medium, mass production)
  • Components Sourcing
  • PCB Assembly/SMT/DIP



How to get a full quotation of the PCB/PCBA:

  • Gerber File, with detail specification of the PCB
  • BOM List (Better with excel fomart)
  • Photoes of the PCBA (If you have done this PCBA before)



Company Informaiton:

Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now  the manufacturer is with about 300 experienced employees. With ISO9001,TS16949, UL, RoHS approved. Kingsum Electronic TEAM are confident to provide you quality products with factory-directed price within the fastest delivery time!


Kingsum Electronic manufacturer Capacity:

Capacity Double Sided: 12000 sq.m / month
Multilayers: 8000sq.m / month
Min Line Width/Gap 4/4 mil (1mil=0.0254mm)
Board Thickness 0.3~4.0mm
Layers 1~20 layers
Material FR-4, Aluminum, PI
Copper Thickness 0.5~4oz
Material Tg Tg140~Tg170
Max PCB Size 600*1200mm
Min Hole Size 0.2mm (+/- 0.025)
Surface Treatment HASL, ENIG, OSP

SMT Capacity

10 layers HDI FR4 PCB Circuit board ENIG green soldmask min drill hole 0.1mm

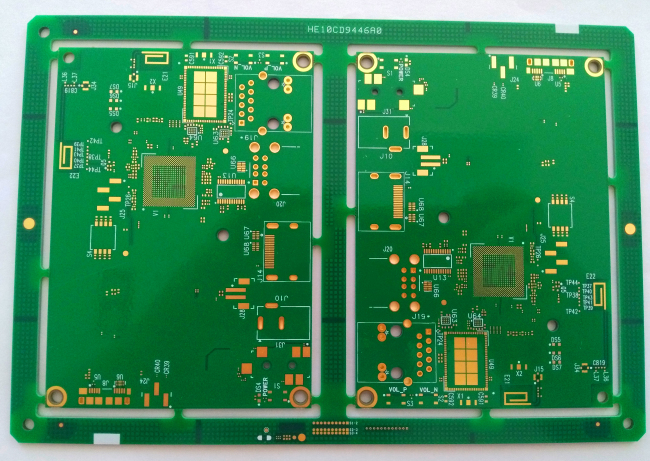

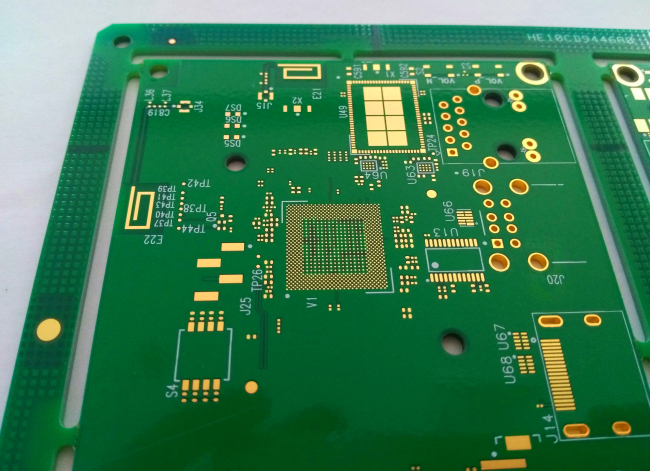

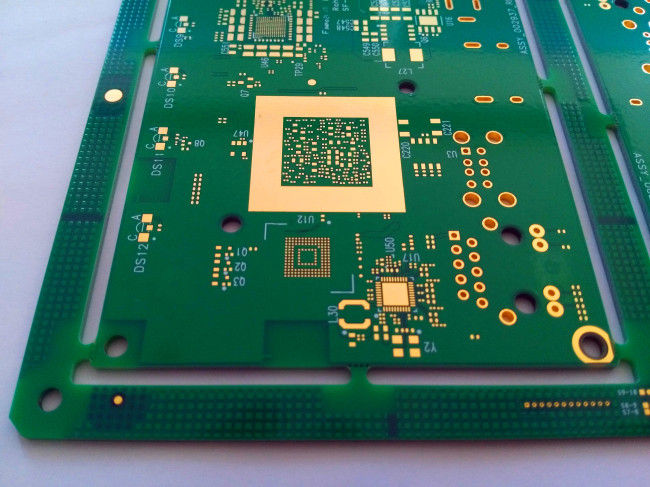

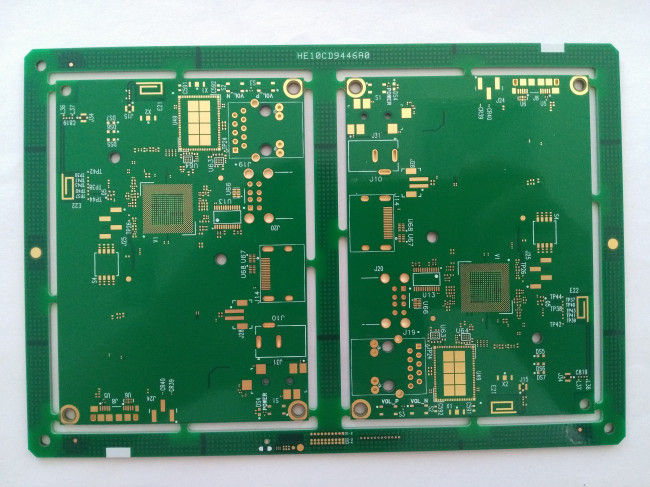

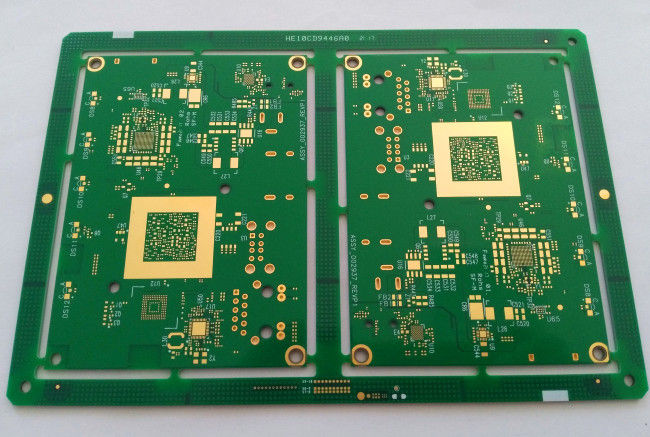

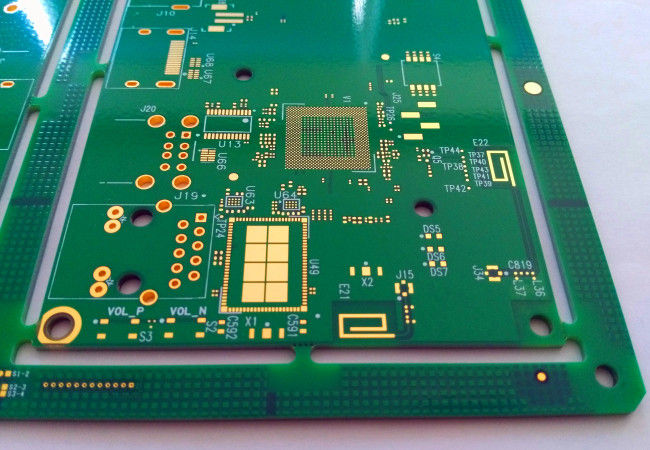

More photoes of this 10 layers HDI FR-4 PCB ENIG green soldmask white silkscreen min drill hole 0.1mm
