| Place of Origin: | China |
|---|---|
| Brand Name: | OEM ODM |
| Certification: | UL,ROHS, REACH,TS16949 |
| Model Number: | PCBA-J-010 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be inquired |
| Delivery Time: | 15-18working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs/month |
| Material: | FR4 TG170 | Categary: | Industry PCB |
|---|---|---|---|
| Layers: | 4Layers | Board Thickness: | 1.6mm |
| Copper: | 1-6OZ | Surface: | ENIG |
| Soldermask: | White/Green/black/red | Standard: | IPC Class 2 |
| High Light: | double sided pcb board,immersion gold pcb | ||
FR4 TG150 1oz ENIG Industrial Control Board PCB
Detail Specifications:
| Layers | 4 |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Surface Treatment | ENIG |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |

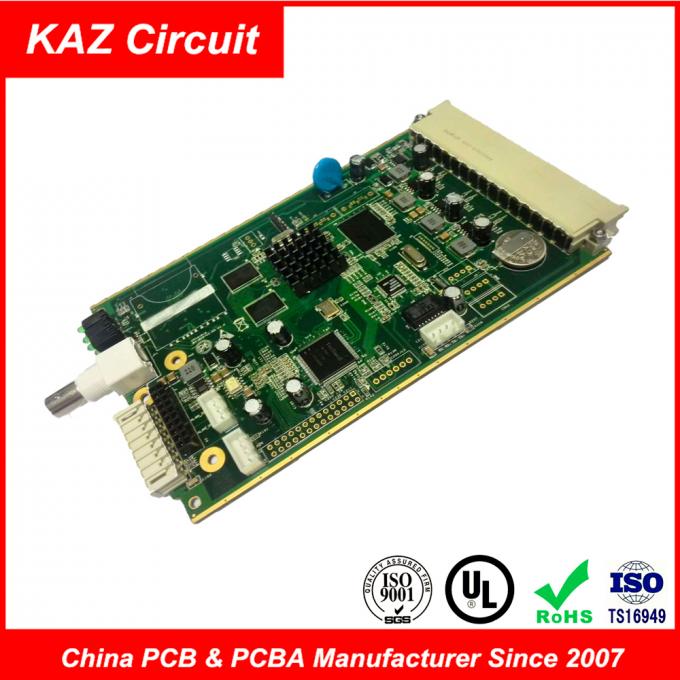

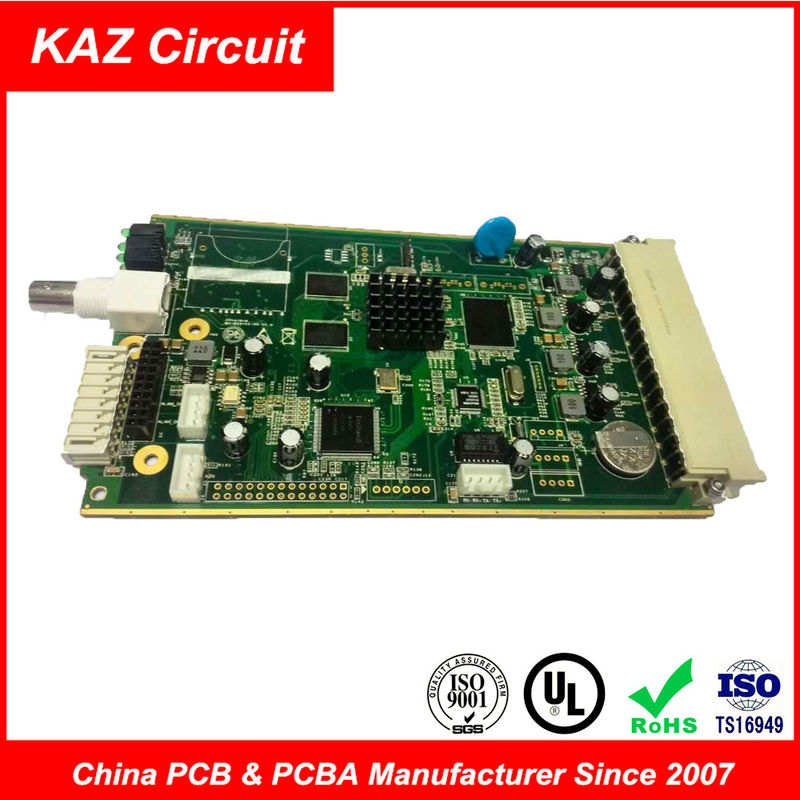

Photoes of this 4layer FR4 TG150 1oz ENIG 1-2U" Industrial PCB for Media decoders Board
What Kingsum Electronic Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
