ENIG TG170多层PCB板/FR4用于自动扶梯控制板的Pcba电路板工业控制板

产品详细信息：

原产地：	中国
品牌名称：	OEM ODM
认证：	UL，ROHS，REACH，TS16949
型号：	PCBA-J-009

付款和运输条件：

最小订单数量：	1.
价格：	待查询
交货时间：	15-18个工作日
付款条件：	T/T，信用证
供应能力：	10000件/月

GET A QUOTE

Detailed Product Description

Material:	FR4 TG170	Categary:	Industry PCB
Layers:	4Layers	Board Thickness:	1.6mm
Copper:	1-6OZ	Surface:	ENIG
Soldermask:	White/Green/black/red	Standard:	IPC Class 2
High Light:	enig finish pcb,double sided pcb board

4layer FR4 1oz ENIG TG170 Industrial PCB for Escalator control board

Detail Specifications:

Layers	4
Material	FR-4
Board Thickness	1.6mm
Copper Thickness	1oz
Surface Treatment	ENIG
Soldmask & Silkscreen	Green & White
Quality Standard	IPC Class 2, 100% E-testing
Certificates	TS16949, ISO9001, UL, RoHS

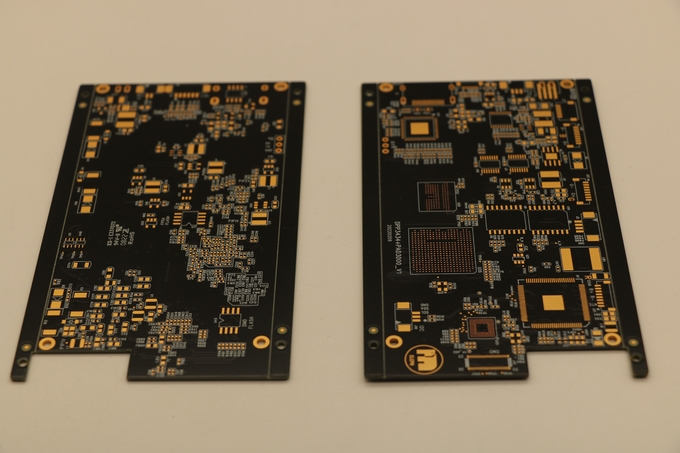

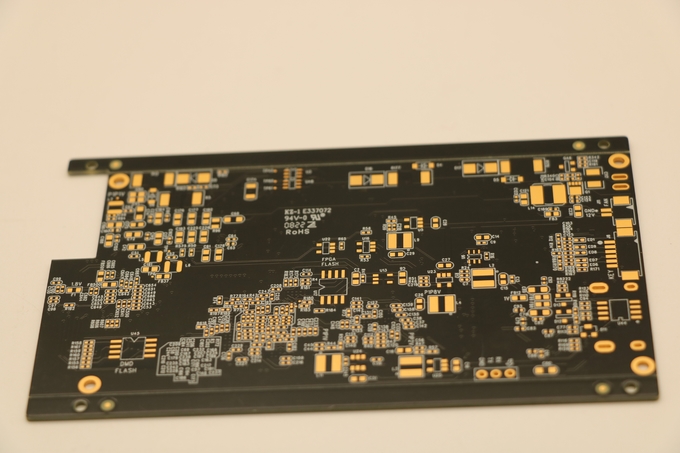

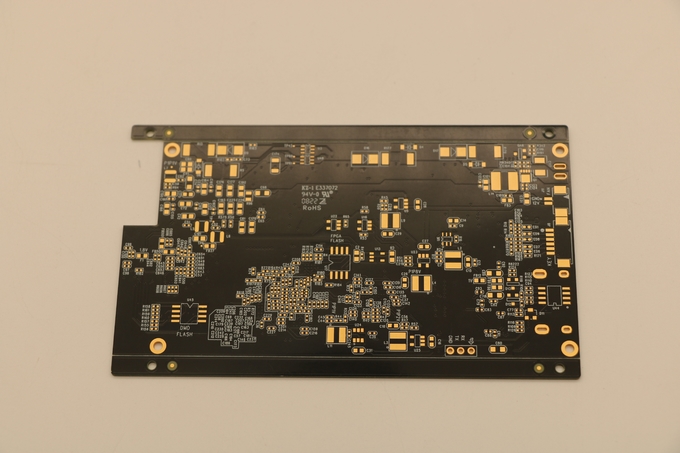

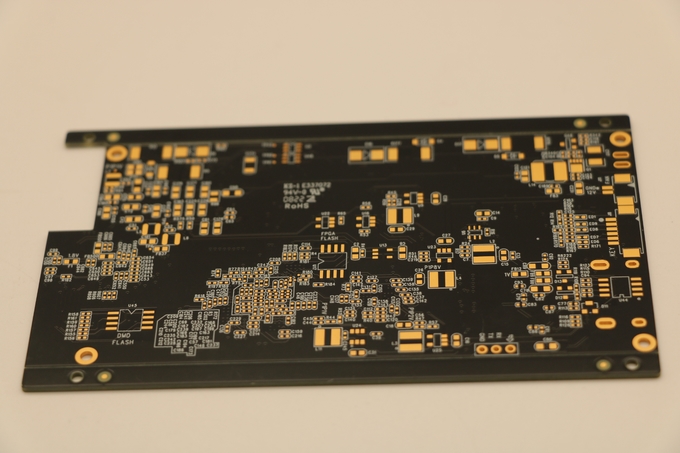

Photoes of this 4layer FR4 1oz ENIG TG170 Industrial PCB for Escalator control board

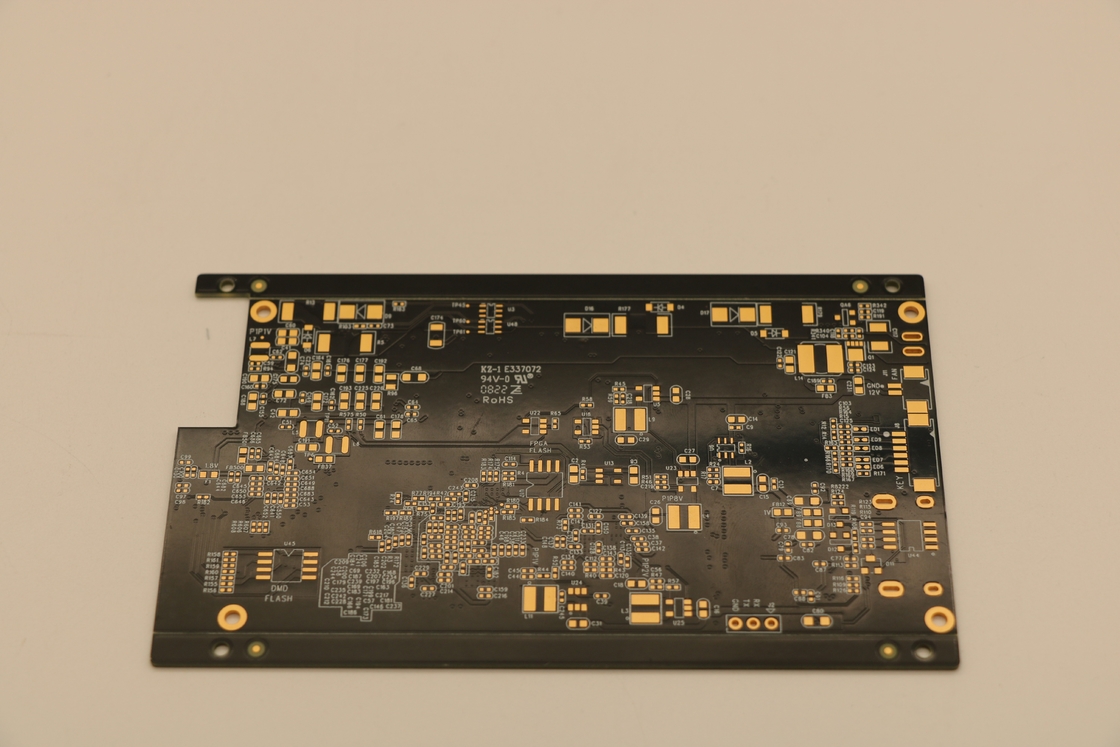

ENIG TG170 Multilayer PCB Board / FR4 Pcba Circuit Boardfor Escalator control board Industrial Control Board

What Kingsum Electronic Circuit can do for you:

PCB manufacturing (prototype, small to medium, mass production)
Components Sourcing
PCB Assembly/SMT/DIP

To get a full quotation of the PCB/PCBA, pls provide the information as below:

Gerber File, with detail specification of the PCB
BOM List (Better with excel fomart)
Photoes of the PCBA (If you have done this PCBA before)

Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!

Manufacturer Capacity:

Capacity	Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month
Min Line Width/Gap	4/4 mil (1mil=0.0254mm)
Board Thickness	0.3~4.0mm
Layers	1~20 layers
Material	FR-4, Aluminum, PI
Copper Thickness	0.5~4oz
Material Tg	Tg140~Tg170
Max PCB Size	600*1200mm
Min Hole Size	0.2mm (+/- 0.025)
Surface Treatment	HASL, ENIG, OSP
