| Place of Origin: | China |
|---|---|
| Brand Name: | OEM ODM |
| Certification: | UL,ROHS, REACH,TS16949 |
| Model Number: | PCBA-J-008 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be inquired |
| Delivery Time: | 15-18working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs/month |
| Material: | FR4 TG170 | Categary: | Industry PCB |
|---|---|---|---|
| Layers: | 4Layers | Board Thickness: | 1.6mm |
| Copper: | 1-6OZ | Surface: | ENIG |
| Soldermask: | White/Green/black/red | Standard: | IPC Class 2 |
| High Light: |
enig finish pcb,double sided pcb board |
||
4layer FR4 1oz ENIG TG170 Industrial PCB for Power monitoring board
Detail Specifications:
| Layers | 4 |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Surface Treatment | ENIG |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |

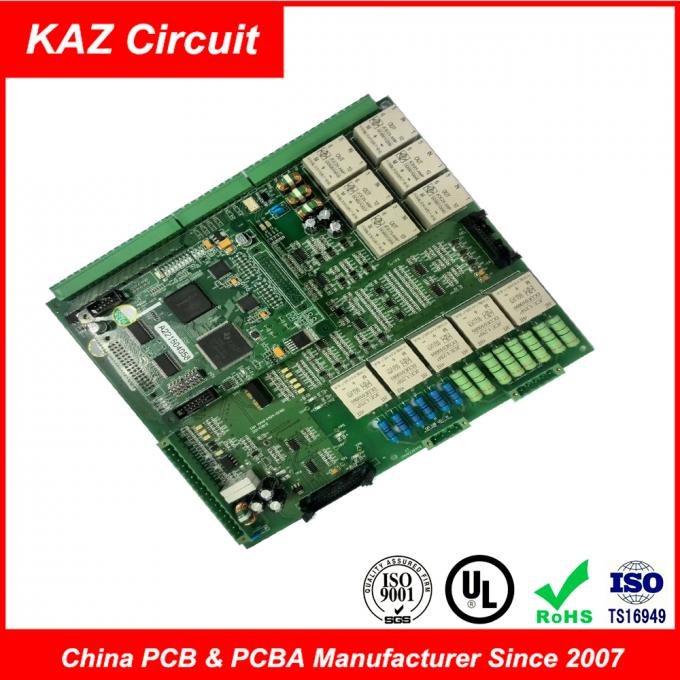

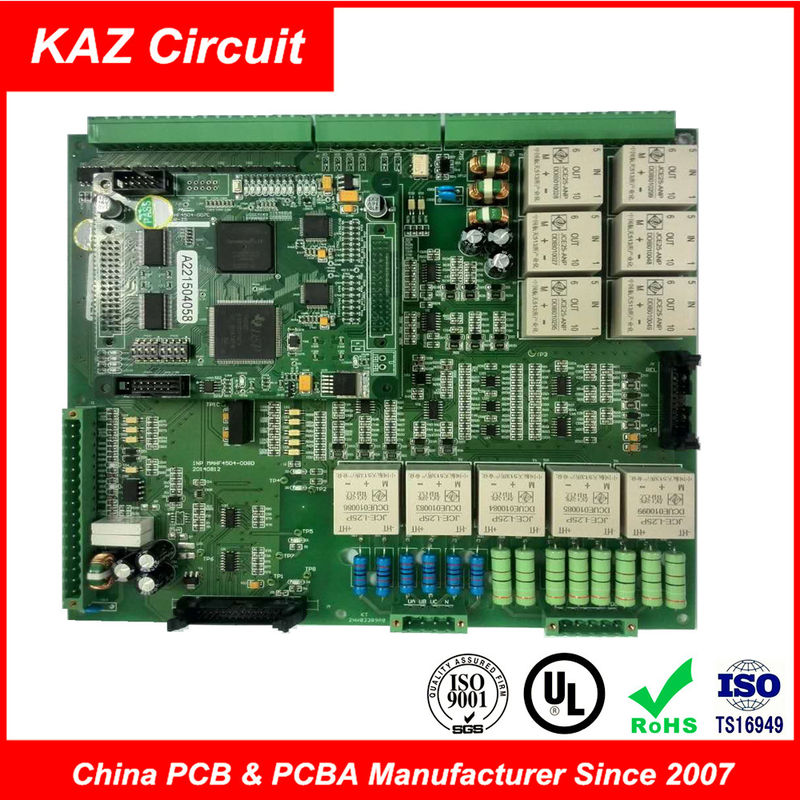

Photoes of this 4layer FR4 1oz ENIG TG170 Industrial PCB for Power monitoring board
What Kingsum Electronic Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
