HDI Printed Circuit Boards Blind Via PCB Burried Vias Impedance Control BGA Gold Finger

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	Kingsum ElectronicPCB
Certification:	IATF16949-2016 \| ISO9001 2015 \| UL 337072 \| ROHS
Model Number:	PCB-HDI-116

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	To be Inquired
Packaging Details:	Vacuum bag
Delivery Time:	12-15days
Payment Terms:	T/T, L/C
Supply Ability:	10000pcs/month

GET A QUOTE

Detailed Product Description

PCB Material:	FR4	Size:	As Per Gerber
Thickness:	0.8-3.2mm	Layers:	4-10layers
Copper:	1-6OZ	Surface:	ENIG/HASL/OSP
Soldermask:	Red/Green/Black/White	Standard:	IPC Class 2
Silkscreen:	White/Black/Red/Green	Impedance Control:	Yes
Gold Finger:	Yes
High Light:	blind via pcb,lead free pcb

4-10 layers FR4 1OZ ENIG/HASL/OSP HDI Printed Circuit Boards With Blind&Burried holes
Detail Specifications:

Layers	4-10Layers
Material	FR-4
Board Thickness	1.6mm
Copper Thickness	1-6oz
Surface Treatment	ENIG/HASL/OSP
Soldmask & Silkscreen	Green & White & Red & Green
Quality Standard	IPC Class 2, 100% E-testing
Certificates	IATF16949-2016 \| ISO9001 2015 \| UL 337072 \| ROHS

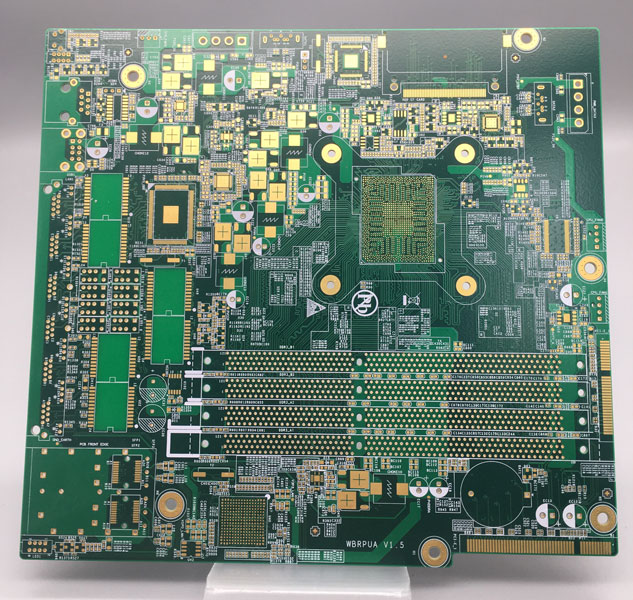

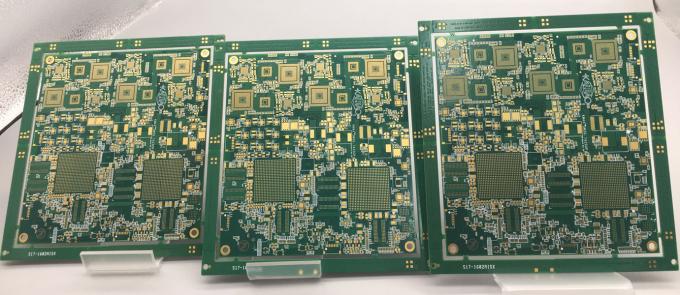

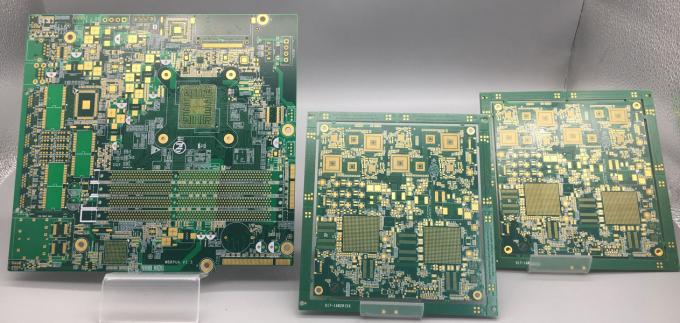

Photoes of this 4-10 layers FR4 1OZ ENIG/HASL/OSP HDI Printed Circuit Boards With Blind&Burried holes
HDI Printed Circuit Boards Blind Via PCB Burried Vias Impedance Control BGA Gold Finger
What Kingsum Electronic Circuit can do for you:

PCB manufacturing (prototype, small to medium, mass production)
Components Sourcing
PCB Assembly/SMT/DIP

To get a full quotation of the PCB/PCBA, pls provide the information as below:

Gerber File, with detail specification of the PCB
BOM List (Better with excel fomart)
Photoes of the PCBA (If you have done this PCBA before)

Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:

Capacity	Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month
Min Line Width/Gap	4/4 mil (1mil=0.0254mm)
Board Thickness	0.3~4.0mm
Layers	1~20 layers
Material	FR-4, Aluminum, PI
Copper Thickness	0.5~4oz
Material Tg	Tg140~Tg170
Max PCB Size	600*1200mm
Min Hole Size	0.2mm (+/- 0.025)
Surface Treatment	HASL, ENIG, OSP
