| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronic |
| Certification: | UL&ROHS |
| Model Number: | Kingsum ElectronicA-102 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | 0.1-20 USD / Unit |
| Packaging Details: | P/P ， Carton |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 2000 m2 / Month |
| Layer Count: | 1 ~ 30 Layers | Max Board Size: | 600 Mm X 1200 Mm |
|---|---|---|---|
| Base Material For PCB: | FR4, CEM-1, TACONIC, Aluminium, High Tg Material, High Frequence ROGERS ,TEFLON, ARLON, Halogen-free Material | Minimum Line Width: | 3mil (0.075mm) |
| Minimum Line Space: | 3mil (0.075mm) | Minimum Hole Diameter: | 0.10 Mm |
| High Light: | blind via pcb,lead free pcb | ||
Controller Outstanding Rigid Aluminium Based PCB
PCB Capabilities:
Rigid PCB up to 30 layers
Flexible PCB up to 6 layers
Rigid flex PCB up to 20 layers
Metal based PCB up to 8 layers
Material : FR4, high TG FR4, Halogen free FR4, high frequency, ceramic,aluminum copper based, polyimide
Surface finish: HAL, lead free HAL, immersion gold, silver, tin, OSP, hard gold plating, ENEPIG, carbon ink, blue mask
DHI technology: 1+n+1,1+1+n+1+1,2+n+2,3+n+3, stacked vias available
Other special technology: conductively (or non-conductively) via filling, edge plating, back drill, heavy copper (up to 14oz), via in PAD filling, extreme large or thick PCB, microwave and RF circuit boards
Competitive Advantage:
Description :
| Layer: | 1 layer-30 layers |
| Board thickness: | 0.2mm-6.0mm |
| Copper thickness: | 0.5oz-6.0 oz |
| Max board size : | 600 x 1200mm |
| Min. hole diameter: | 0.1mm |
| Min. line width: | 0.075mm |
| file format: | pcb,doc,ddb etc |
| MOQ: | 1 piece |
| Base material: | FR-4,TG, CEM-1, CEM-3, Aluminium,94V0, 94HB |
| Solder mask & Silkscreen: | green, red, blue, yellow, black, white etc |
| Surface finish: |
ENIG, ImAg, ImSn, OSP, HASL, lead free,immersion gold,Gold-plate etc |

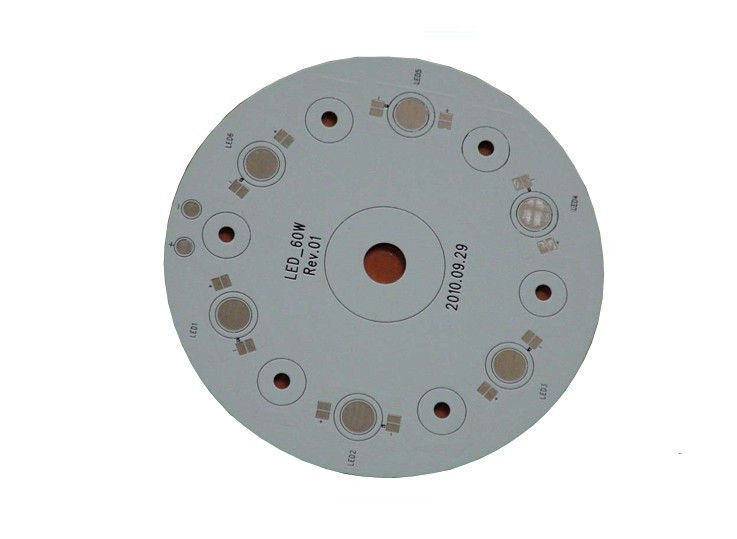

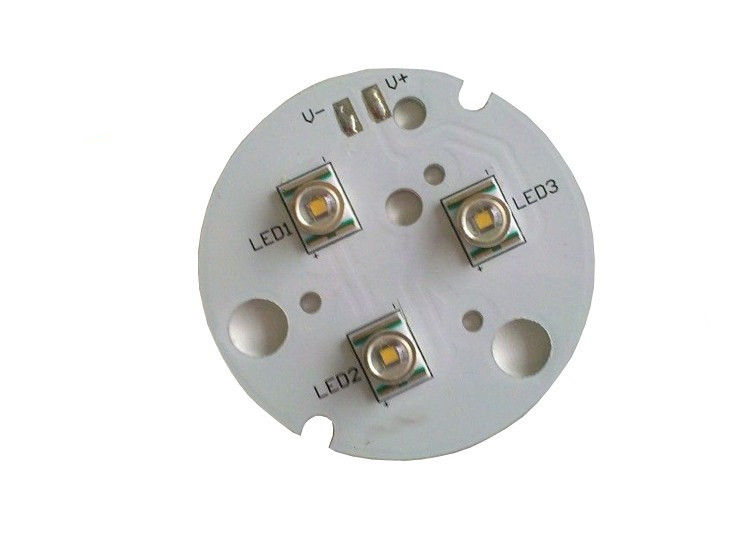

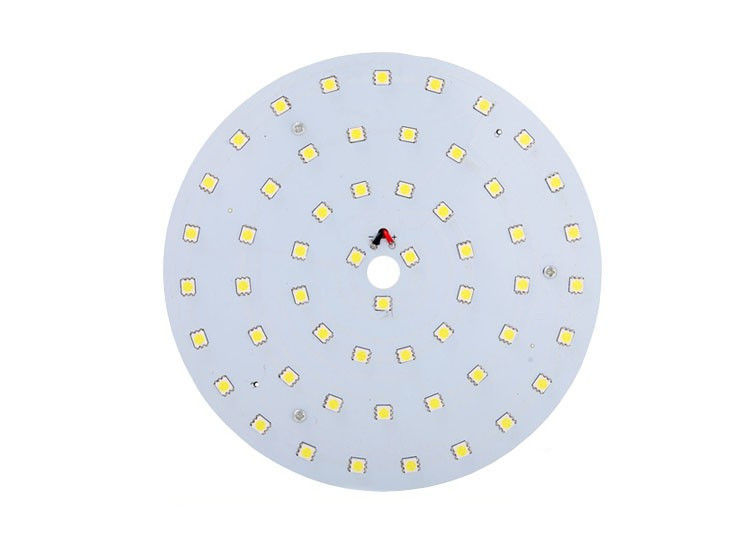

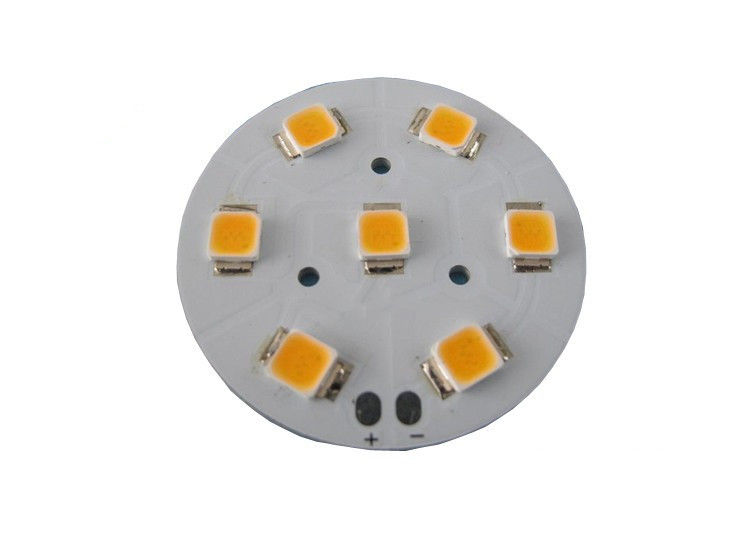

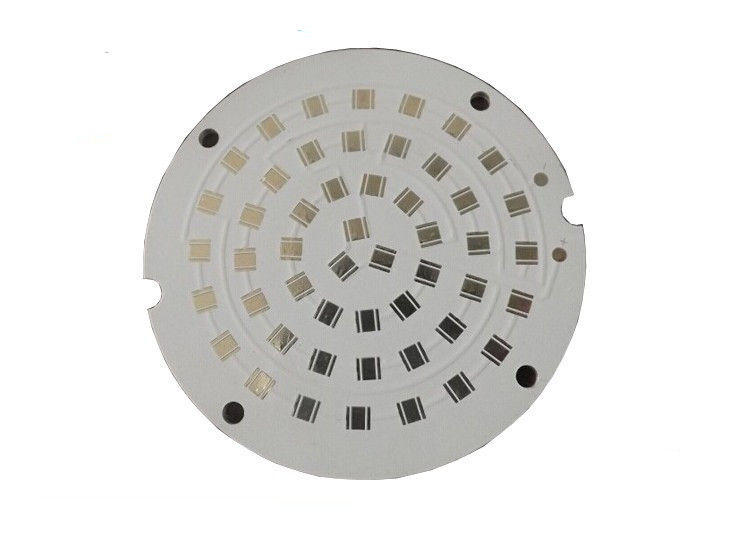

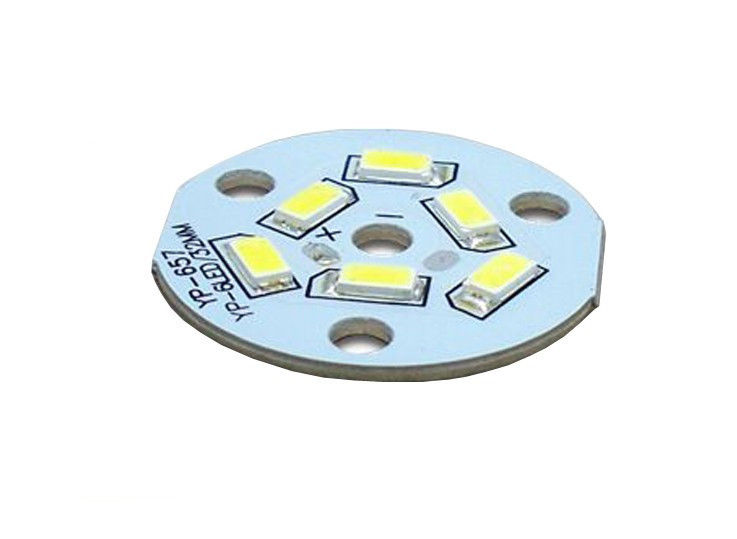

Pictures :
