| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronic |
| Certification: | ISO9001, UL, RoHS |
| Model Number: | PCB-S-HDI-001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 100 |
| Packaging Details: | vacuum |
| Delivery Time: | 25~30 |
| Supply Ability: | 20000 sq.m / month |
| Layers: | 12 | Material: | FR-4 Tg150 |
|---|---|---|---|
| Min Line: | 2 Mil | PCB Type: | HDI |
| Blind & Buried Via: | Yes | Impedance Control: | Yes |
| High Light: | blind via pcb,hdi pcb | ||

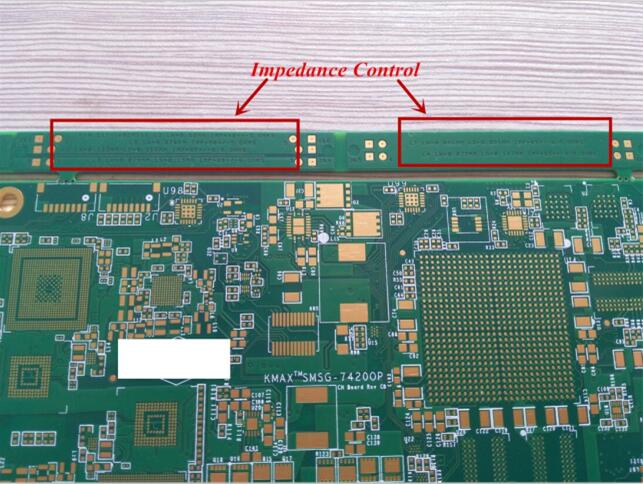

This is a PCB with 12 layers, min line width and space is 2mil/2mil, specialty include impedance control, blind & buried via, BGA wtih soldmask defined,
Detials for this 12 layers min 2 mil line width high Tg High Density Interconnect HDI PCB:
Copper Thickness:
L1-------------------------------1/3OZ + Plating
PP 3.00mil
L2-------------------------------1/3OZ + Plating
PP 2.35mil
L5-------------------------------1/3OZ + Plating
PP 2.97mil
L6-------------------------------1/3OZ + Plating
PP 2.51mil
L5------------------------------H OZ
0.2mm Core
L6------------------------------H OZ
PP 2.75mil
L7-------------------------------H OZ
0.2mm Core
L8-------------------------------H OZ
PP 2.64mil
L9-------------------------------1/3OZ + Plating
PP 2.83mil
L10------------------------------1/3OZ + Plating
PP 2.43mil
L11------------------------------1/3OZ + Plating
PP 3.09mil
L12------------------------------1/3OZ + Plating

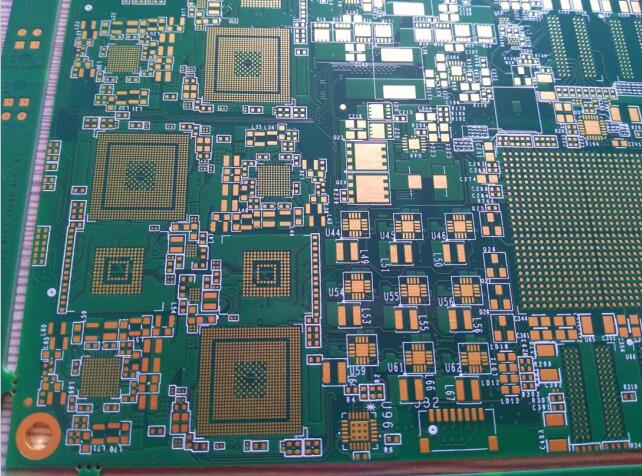

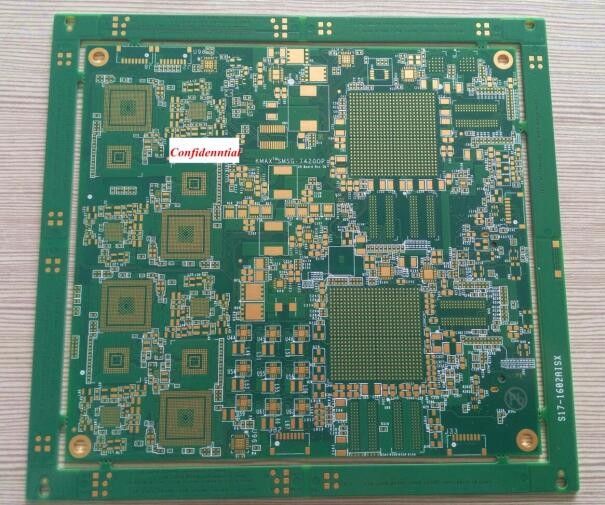

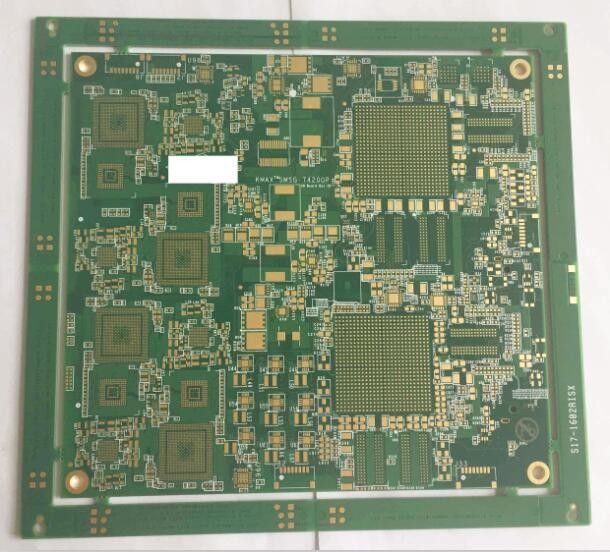

More photoes for this 12 layers HDI PCB
