| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronic |
| Certification: | ISO9001 | UL ( E337072 ) | TS16949 ( 0259279 ) | RoHS |
| Model Number: | PCB D-0000DZ |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 0.1-3USD |
| Packaging Details: | vacuum package |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 20000square meters/month |
| Product Name: | Kingsum Electronic OEM | Min Hole Size: | 3mile(0.075mm) |
|---|---|---|---|
| Type: | HDI PCB | Components: | Qualified |
| SMT DIP Technology: | Support | Material: | FR4/AL |
| High Light: | blind via pcb,hdi pcb | ||
Description of Multilayer HDI Printed Circuit Boards FR4 HASL Lead Free for OEM
1.Description of Kaz
Shenzhen Kingsum Electronic Circuit is a manufacturer of PCB and PCBA. Certificates: ISO 9001, UL (E337072), TS16949 (0259279), RoHS We have over 300 employees and 8,000 square meters building area. Our products include Normal Tg FR4, High Tg FR4, PTFE, Rogers, Low Dk/Df, FPC, Rigid-Flex PCB and Aluminum, Copper base PCB, etc. Assembly service including SMT, DIP with six assembly lines. --Providing one stop service for our clients including: -PCB Production (prototype, small & medium production, mass production) -Components Sourcing -PCB Assembly (SMT, SMD, DIP) Our PCB technology capacity includes 1 to 50 layers, minimum dill hole size of 0.1mm, minimum track/line size of 0.075mm, surface treatment of OSP, HAL, HASL, ENIG, Gold Finger and more. We can make our production capacity of 12,000 square meters/month for double sides and 8,000 square meters/month for multilayer.
2.Detailed Specification of PCB
| The type of board | HDI |
| The number of layers | 2,4,6L |
| Material | FR4,AL |
| The finished copper thickness | 1,2OZ |
| Solder mask color | it can be customized |
| Silkscreen | it can be customized |
| The finished size(PCSandPNL) | it can be cutomized |
| Surface treatment | HASL,ENIG |

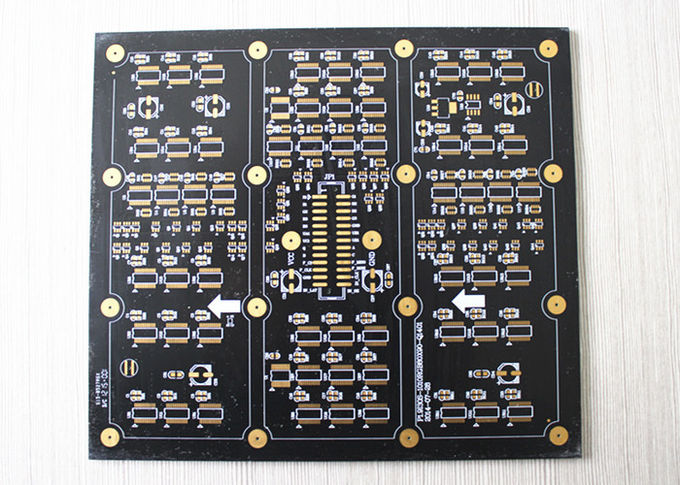

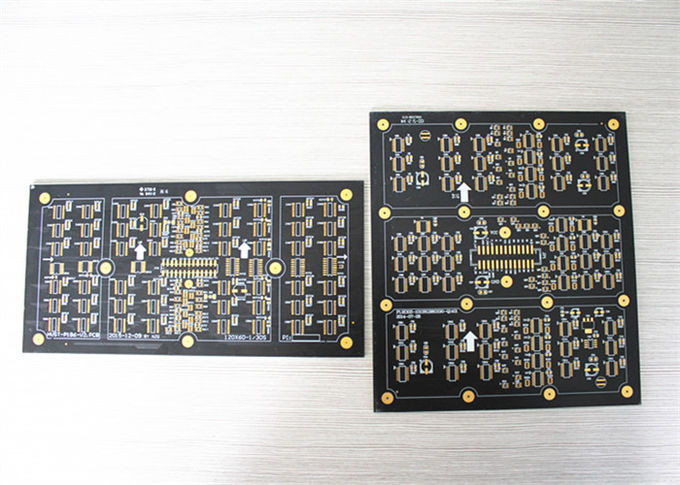

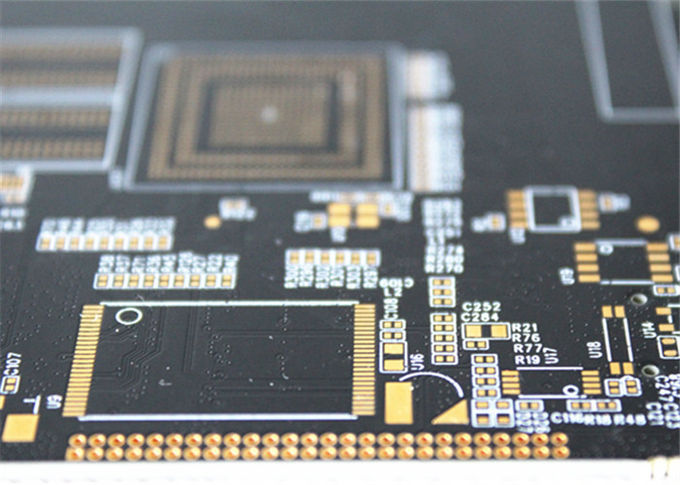

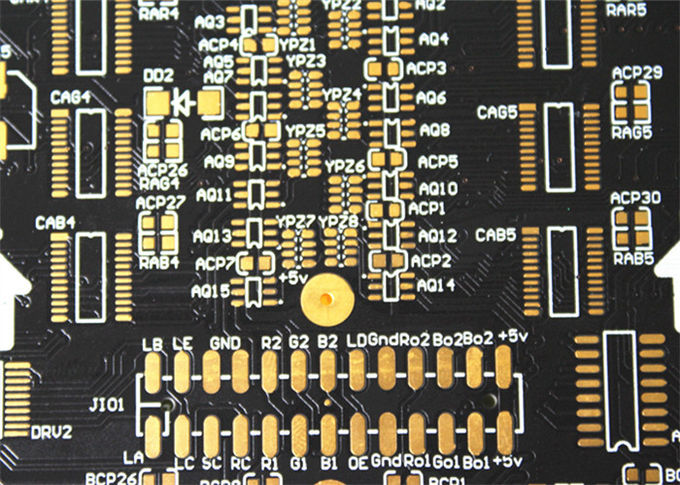

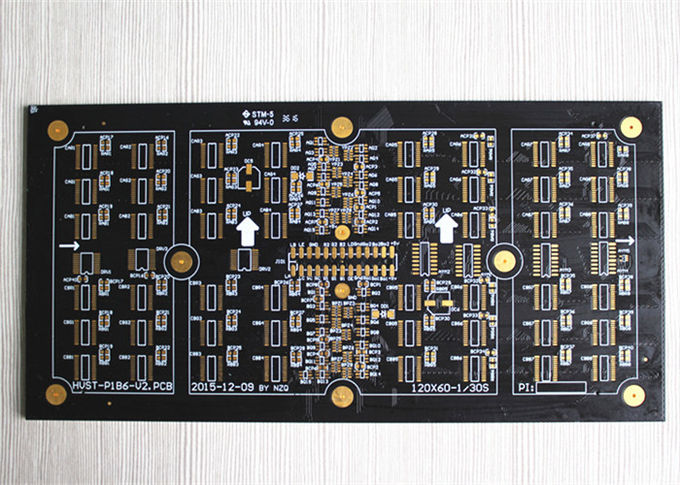

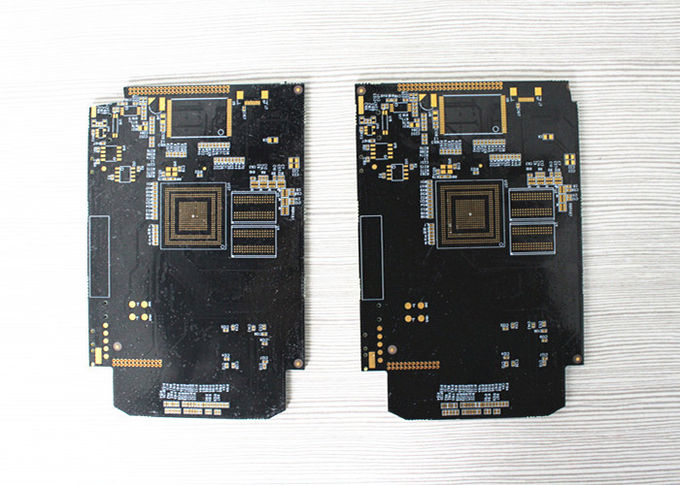

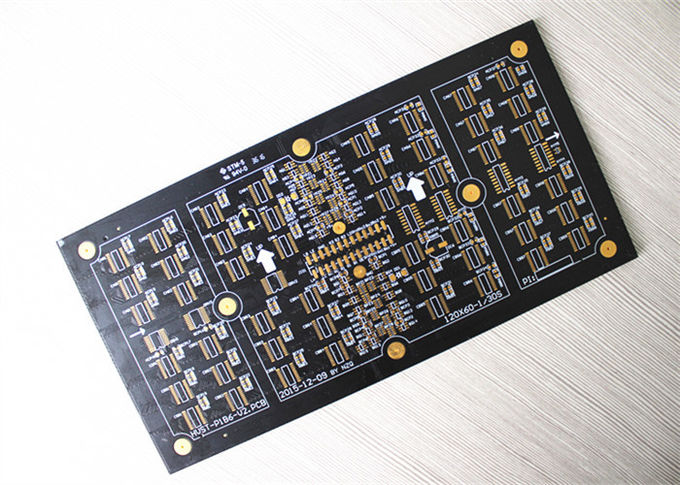

3.Pictures of PCB
