| Place of Origin: | China |
|---|---|
| Brand Name: | OEM ODM |
| Certification: | ISO9001, TS16949, UL, RoHS |
| Model Number: | PCB-J-027 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD/pc |
| Packaging Details: | Vacuum package |
| Delivery Time: | 9~10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20,000 Square Meters / Month |
| Size: | As Per Gerber | Material: | FR-4 |
|---|---|---|---|
| Layers: | 6 Layers | Board Thickness: | 1.6 Mm |
| Copper: | 1 Oz | Surface: | ENIG |
| Soldmask: | Blue | Silk Screen: | White |
| Standard Testing: | IPC Class 2 | Used For Product: | Half Hole Module Communication Circuit Board |
| High Light: |
electronics circuit board,rigid flex circuit board |
||
Detail Specifications:
| Layers | 6 |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Surface Treatment | HASL |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |

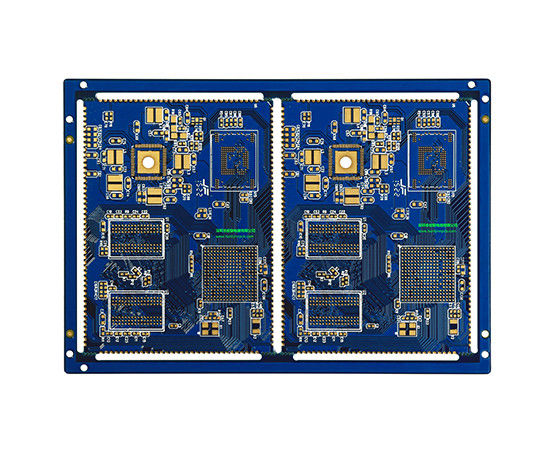

6Layers Electronic Printed Circuit Board with Half hole module communication
What Kingsum Electronic Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
