Custom Printed Circuit Board 2 Layers FR4 Material ENIG Surface

Product Details:

Place of Origin: China
Brand Name: Kingsum Electronic
Certification: ISO9001, UL, RoHS
Model Number: PCB-S-2L-01613

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1
Packaging Details: vacuum
Delivery Time: 5~7
Supply Ability: 20000 sq.m / month


GET A QUOTE

Overview

Detailed Product Description
Layers: 2 Material: FR-4
Copper: 2 Oz Thickness: 1.6mm
Surface: ENIG 1u" ENIG Area: 30%+
High Light: electronics circuit board,rigid flex circuit board

This is a PCB wtih 2 layers FR4 1.6mm 30%+ ENIG 1u" 2oz copper PCB for Audio / Video


Detials for this 2 layers FR4 1.6mm 30%+ ENIG 1u" 2oz copper PCB for Audio / Video

  • 2 layers
  • FR-4
  • ENIG 1u" surface, total area 30+%
  • 1.6mm board thickness
  • 2 oz copper thickness
  • Green soldmask
  • White silkscreen
  • IPC Class 2

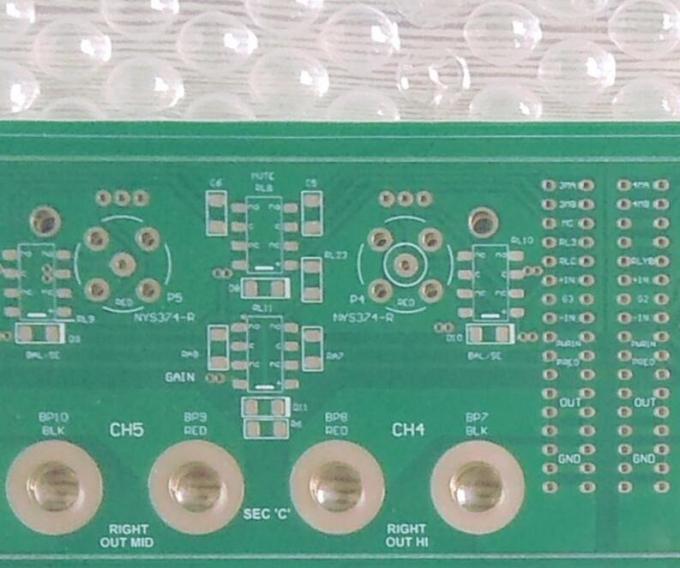

More detail photoes for this 2 layers FR4 1.6mm 30%+ ENIG 1u" 2oz copper PCB for Audio / Video:

Custom Printed Circuit Board 2 Layers FR4 Material ENIG Surface

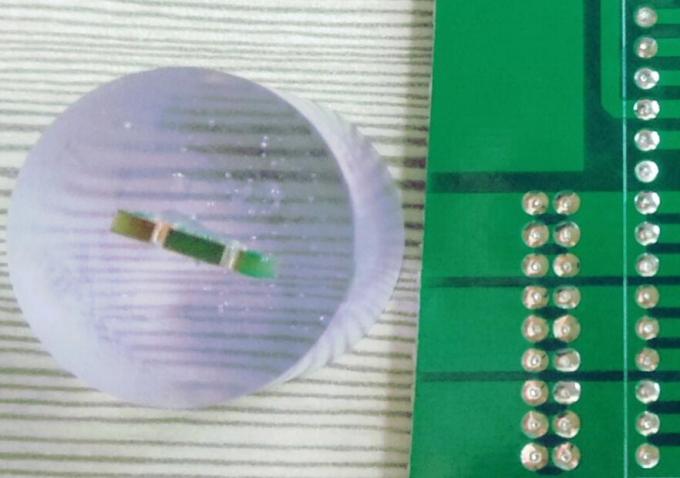

Microsection & Solderbility Test for this
2 layers FR4 1.6mm 30%+ ENIG 1u" 2oz copper PCB for Audio / Video:

Custom Printed Circuit Board 2 Layers FR4 Material ENIG Surface
