Blue Soldmask HASL Lead Free Double Sided FR4 Electronic Printed Circuit Board

Product Details:

Place of Origin: China
Brand Name: Kingsum Electronic Circuit
Certification: ISO9001, TS16949, UL, RoHS
Model Number: PCB-S-25942

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD/pc
Packaging Details: Vacuum package
Delivery Time: 5 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 20,000 Square Meters / Month


GET A QUOTE

Overview

Detailed Product Description
Layers: 2 Thickness: 1.6mm
Copper: 1/1 Oz Surface: HASL LF
Soldmask: Blue Silkcreen: White
High Light: electronics circuit board,rigid flex circuit board

What is double sided PCB?

The double sided PCB is a printed circuit board which is coated with copper on both sides of the top layer and the bottom layer, and both sides can be soldered with a layer of insulating layer in the middle, which is a commonly used printed circuit board. Both sides can be routed, which greatly reduces the difficulty of wiring, and is therefore widely used.


Detail Specifications for this
double sided FR4 PCB with blue soldmask HASL Lead Free 10 pcs panelization

 Layers  2
 Material  FR-4
 Board Thickness  1.6mm
 Copper Thickness  1/1 oz
 Surface Treatment  ENIG 1u"
 Soldmask & Silkscreen  Green & White
 Quality Standard  IPC Class 2, 100% E-testing
 Certificates  TS16949, ISO9001, UL, RoHS


Kingsum Electronic provide the service as below:

  • PCB manufacturing
  • components sourcing
  • PCB Assembly: SMT/DIP services

In order to get a full quotation of the PCB/PCBA, pls provide below information:

  • Gerber, with detail specification of the PCB
  • BOM List with excel fomart
  • Photoes of the PCBA (if you have done this project before, if not, just ignore this)

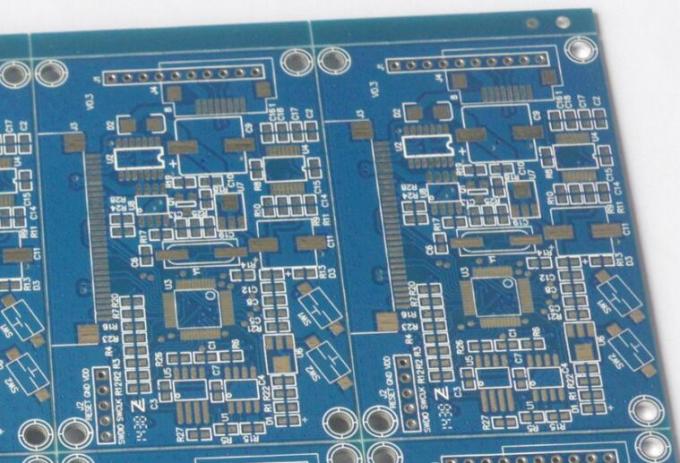

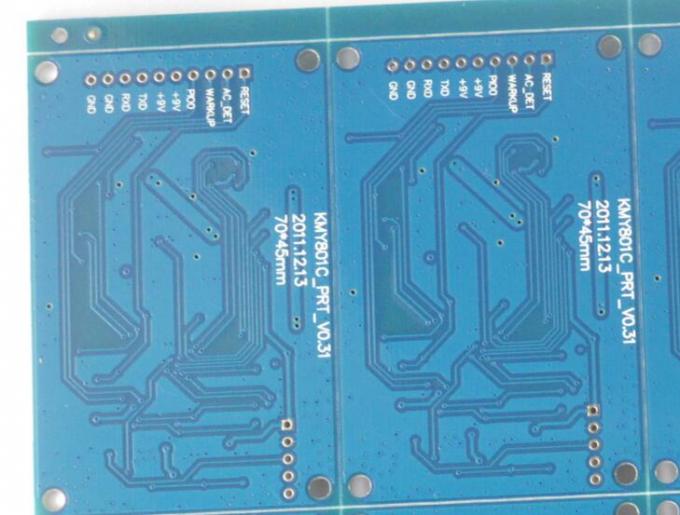

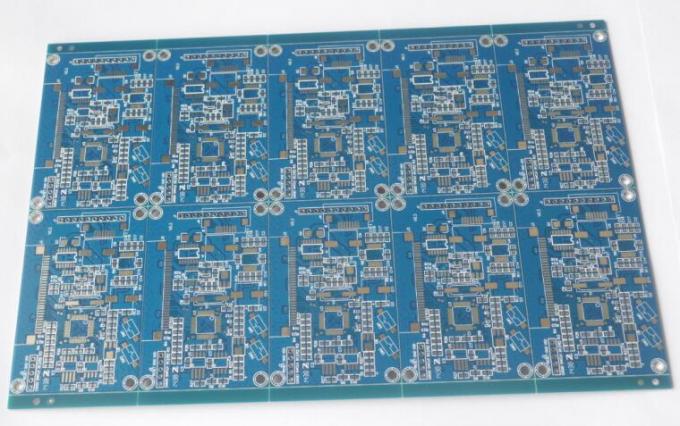

To see more detail photoes for this double sided FR4 PCB with blue soldmask HASL Lead Free 10 pcs panelization, pls refer to below:
