2 Layers 1oz Copper Thickness Green Soldmask FR4 PCB Prototype

Product Details:

Place of Origin: China
Brand Name: Kingsum Electronic Circuit
Certification: ISO9001, TS16949, UL, RoHS
Model Number: PCB-S-2641944672

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD/pc
Packaging Details: Vacuum package
Delivery Time: 5 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 20,000 Square Meters / Month


GET A QUOTE

Overview

Detailed Product Description
Layers: 2 Thickness: 1.6mm
Copper: 1/1 Oz Surface: ENIG 1u"
Soldmask: Green Silkcreen: White
High Light: flex pcb prototype,rigid flex circuit board


Detail Specifications for this
FR4 PCB prototype electronic printed circuit board fabrication

 Layers  2
 Material  FR-4
 Board Thickness  1.6mm
 Copper Thickness  1/1 oz
 Surface Treatment  ENIG 1u"
 Soldmask & Silkscreen  Green & White
 Quality Standard  IPC Class 2, 100% E-testing
 Certificates  TS16949, ISO9001, UL, RoHS

FR-4 is a code name for a flame-resistant material grade. It means a material specification that the resin material must be self-extinguishing after being burned. It is not a material name, but a material grade, so the current general circuit There are many types of FR-4 grades used in the panels, but most are composites made of so-called four-function epoxy plus fillers and fiberglass.


Kingsum Electronic provide the service as below:

  • PCB manufacturing
  • components sourcing
  • PCB Assembly: SMT/DIP services

In order to get a full quotation of the PCB/PCBA, pls provide below information:

  • Gerber, with detail specification of the PCB
  • BOM List with excel fomart
  • Photoes of the PCBA (if you have done this project before, if not, just ignore this)

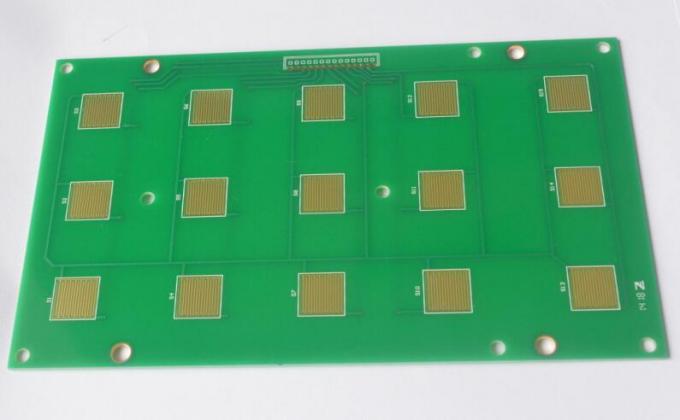

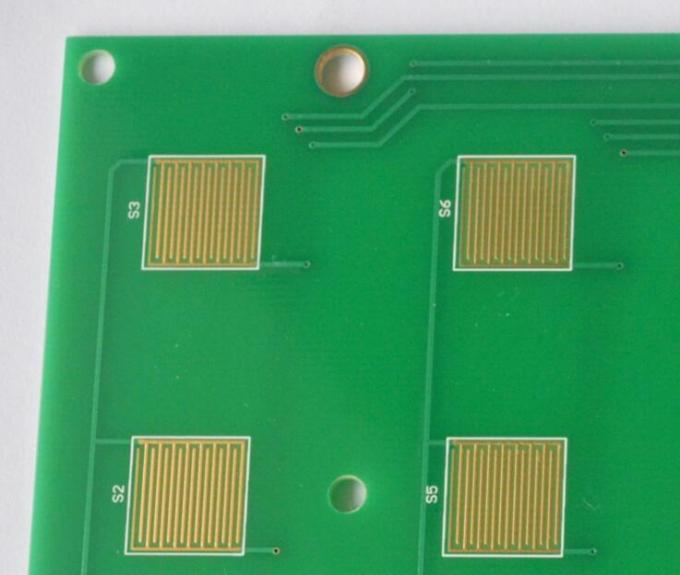

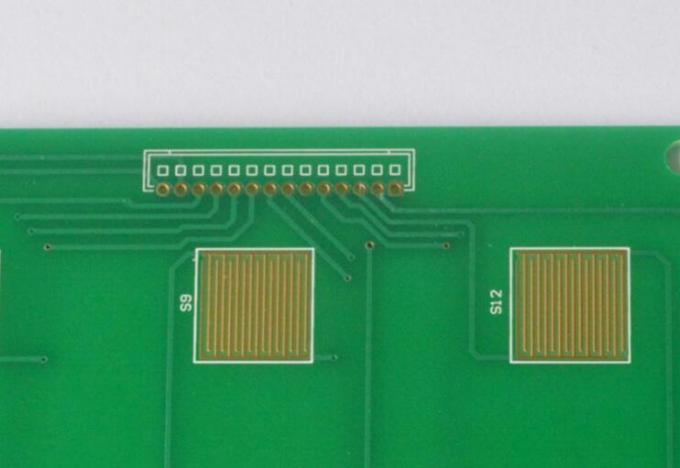

More detail photoes for this FR4 PCB prototype electronic printed circuit board fabrication

2 Layers 1oz Copper Thickness Green Soldmask FR4 PCB Prototype

2 Layers 1oz Copper Thickness Green Soldmask FR4 PCB Prototype

2 Layers 1oz Copper Thickness Green Soldmask FR4 PCB Prototype
