1.6mm Thickness HASL LF Surface Blue Soldmask Electronic Printed Circuit Board

Product Details:

Place of Origin: China
Brand Name: Kingsum Electronic Circuit
Certification: ISO9001, TS16949, UL, RoHS
Model Number: PCB-S-165942

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD/pc
Packaging Details: Vacuum package
Delivery Time: 5 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 20,000 Square Meters / Month


GET A QUOTE

Overview

Detailed Product Description
Layers: 2 Layers Thickness: 1.6mm
Copper: 1/1 Oz Surface: HASL LF
Soldmask: Blue Silkcreen: White
High Light: flex pcb prototype,rigid flex circuit board

In order to get a full quotation of the PCB/PCBA, pls provide below information:

  • Gerber File, with detail specification of the PCB
  • BOM List (Better with excel fomart)
  • Photoes of the PCBA (if you have done this project before)



Detail Specifications for this 1.0mm board thickness 1oz green somdask smart home printed circuit board PCB:

 Layers  2
 Material  FR-4
 Board Thickness  1.6mm
 Copper Thickness  1/1 oz
 Surface Treatment  HASL LF
 Soldmask & Silkscreen  Blue & White
 Quality Standard  IPC Class 2, 100% E-testing
 Certificates  TS16949, ISO9001, UL, RoHS


What Kingsum Electronic can do for you & your company

  • PCB manufacturing
  • components sourcing
  • PCB SMT/DIP services

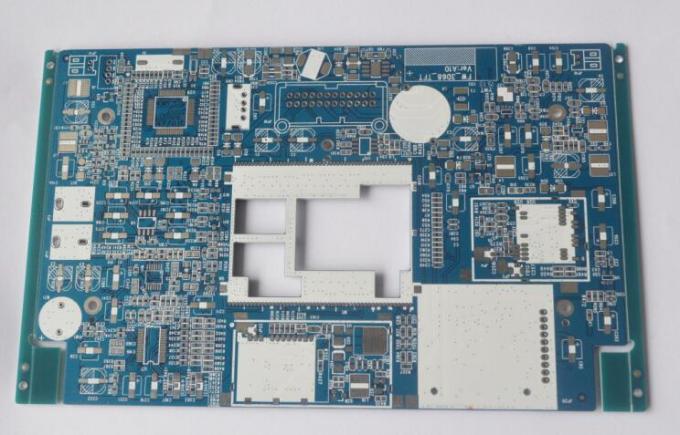

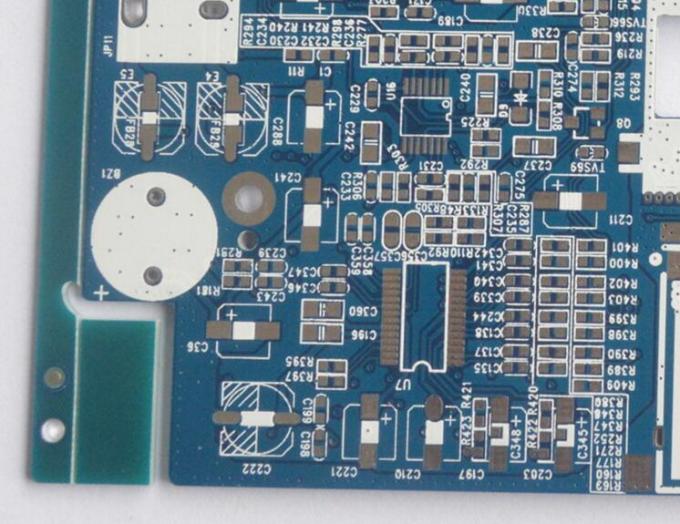

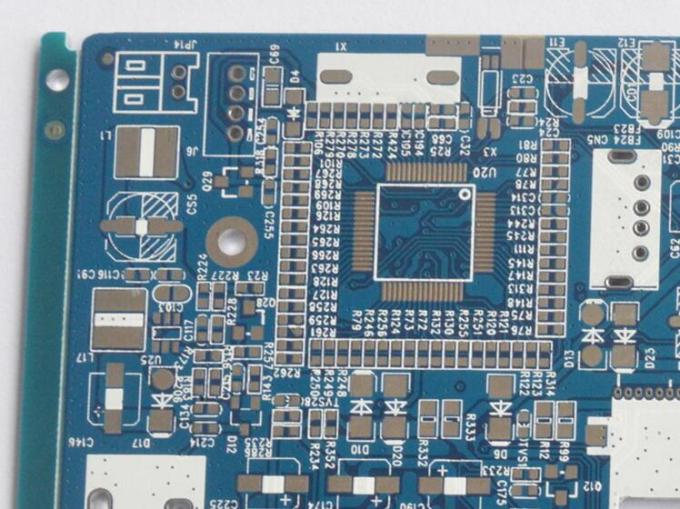

Here are more photoes for this blue soldmask white silkscreen FR4 double sided PCB electronic printed circuit board

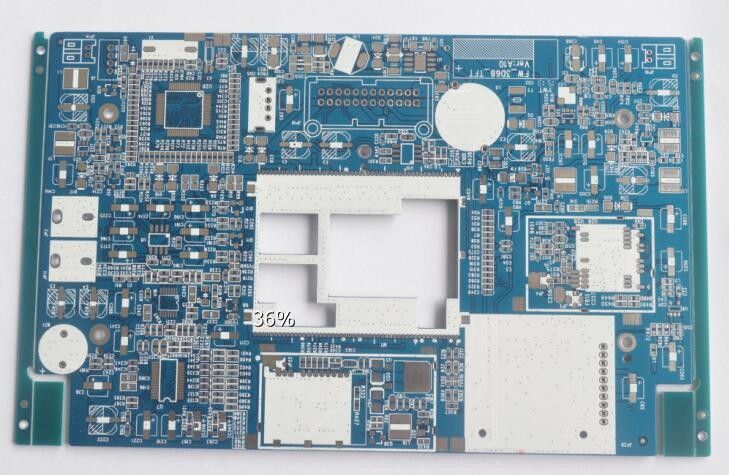

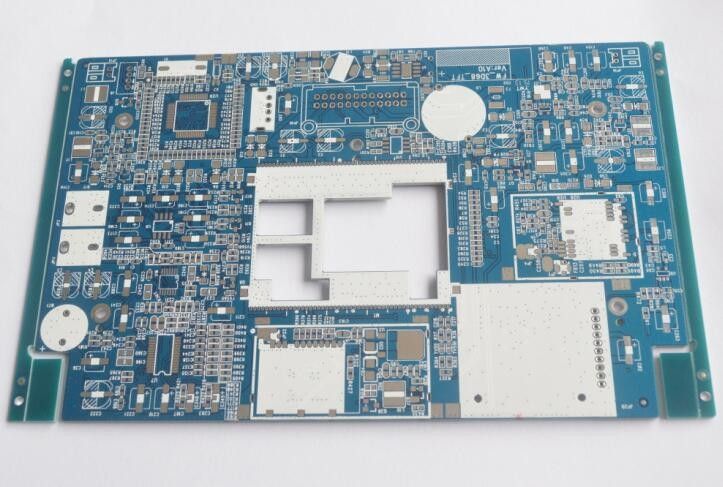

1.6mm Thickness HASL LF Surface Blue Soldmask Electronic Printed Circuit Board

1.6mm Thickness HASL LF Surface Blue Soldmask Electronic Printed Circuit Board

1.6mm Thickness HASL LF Surface Blue Soldmask Electronic Printed Circuit Board
