| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronicpcb |
| Certification: | ISO9001 | UL ( E337072 ) | TS16949 ( 0259279 ) | RoHS |
| Model Number: | PCB-R-005 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 0.1-3usd/pc |
| Packaging Details: | Vacuum packing |
| Delivery Time: | 3-5days |
| Payment Terms: | Paypal, T/T, Western Union |
| Supply Ability: | 10000-20000 square meters per month |
| Material: | FR-4 | Layers: | 1L/2L |
|---|---|---|---|
| Soldermask: | Green | Silkscreen: | White |
| Copper: | 1oz | Surface: | HASL |
| High Light: | flex pcb prototype,rigid flex circuit board | ||

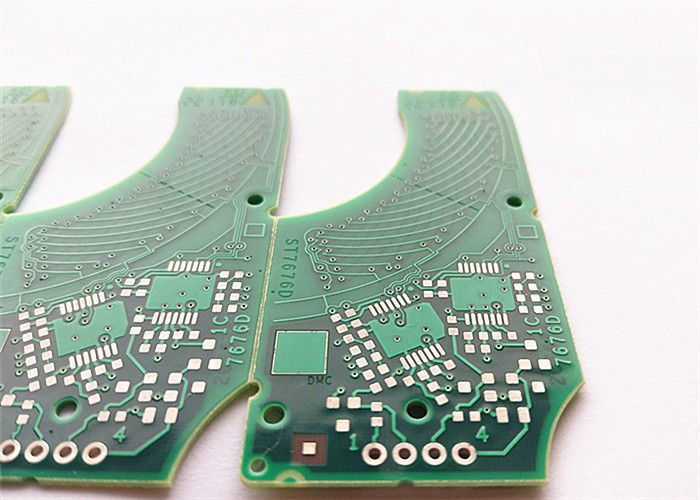

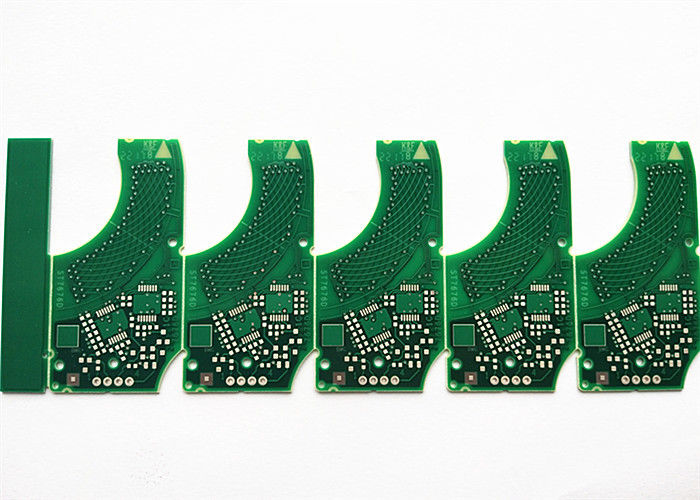

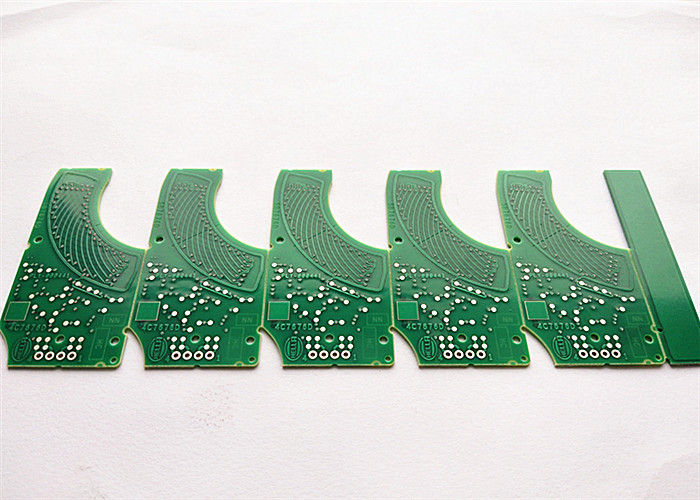

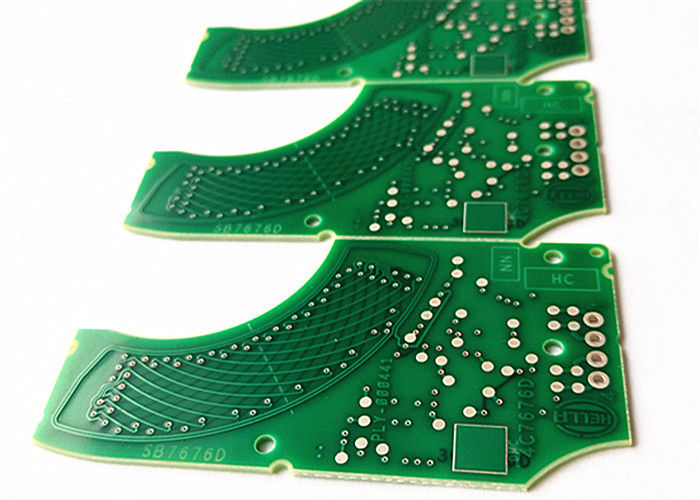

| Product name | Single or double-sided FR-4 green soldermask Electronic PCB with HASL |
| Material | FR-4 |
| Copper thickness | 1oz |
| Board thickness | 0.6-1.6mm |
| Soldermask | Green |
| Silkscreen | White |
2.What Kingsum Electronic Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |

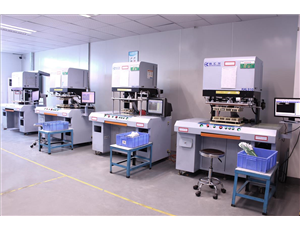

More photos about us
