| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronic Circuit |
| Certification: | ISO9001, TS16949, UL, RoHS |
| Model Number: | PCB-S-023016 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD/pc |
| Packaging Details: | Vacuum package |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20,000 Square Meters / Month |
| Layers: | 2 Layers | Thickness: | 1.6mm |
|---|---|---|---|
| Copper: | 2 Oz | Surface: | HASL |
| Width: | 97.8mm | Length: | 368.3mm |
| High Light: | electronics circuit board,rigid flex circuit board | ||
1.6mm FR-4 3oz copper ENIG with gold finger 30u" green soldmask white silkscreen PCB board
Detail Specifications:
| Layers | 2 |
| Material | FR-4 |
| Board Thickness | 1.6 mm |
| Copper Thickness | 3 oz |
| Surface Treatment | ENIG with gold finger 30mil |
| length & Width | 97.8*368.3mm |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
What Kingsum Electronic Circuit can do for you:

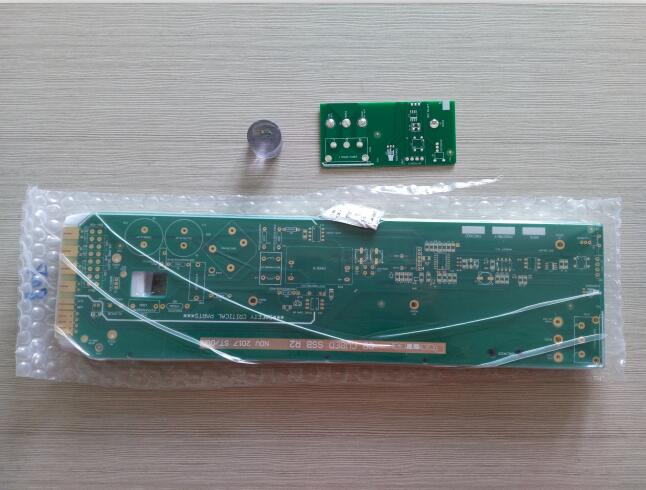

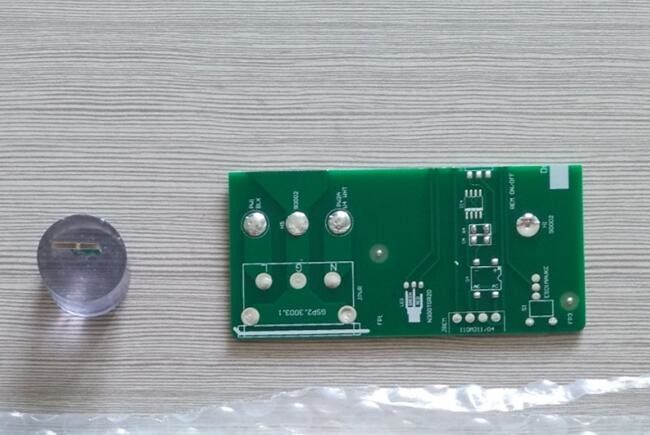

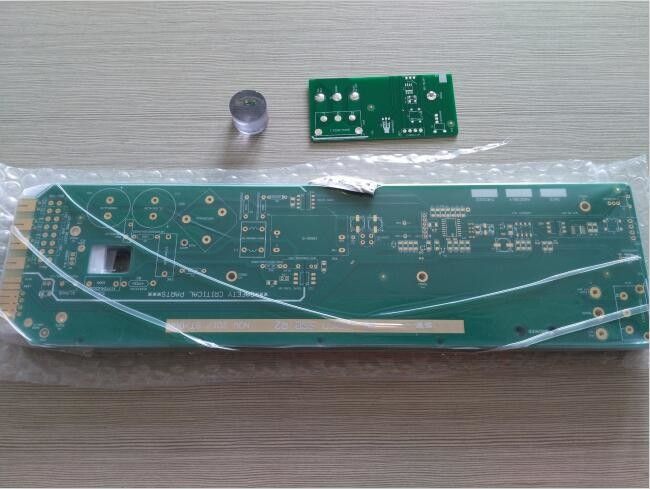

Here are more photoes for this 1.6mm FR-4 3oz copper ENIG with gold finger 30u" green soldmask white silkscreen PCB board
