| Place of Origin: | China |
|---|---|
| Brand Name: | Kingsum Electronic Circuit |
| Certification: | ISO9001, TS16949, UL, RoHS |
| Model Number: | PCB-S-01658456 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD/pc |
| Packaging Details: | Vacuum package |
| Delivery Time: | 7~8 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20,000 Square Meters / Month |
| Layers: | 4 | Thickness: | 1.6mm |
|---|---|---|---|
| Test: | IPC Class 3 | ENIG: | 2u" |
| Min Track: | 0.15mm | Copper: | 1.5oz |
| High Light: | electronics circuit board,flex pcb prototype | ||
Detail Specifications:
| Layers | 4 |
| Material | FR-4 |
| Board Thickness | 1.6 mm |
| Copper Thickness | 1.5 oz |
| Surface Treatment | Immersion Gold 2u" |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 3, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
To get a full quotation of the PCB/PCBA, pls provide the information as below:

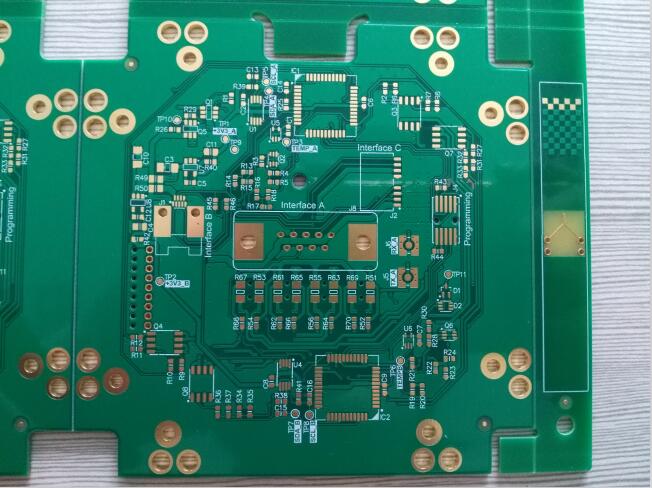

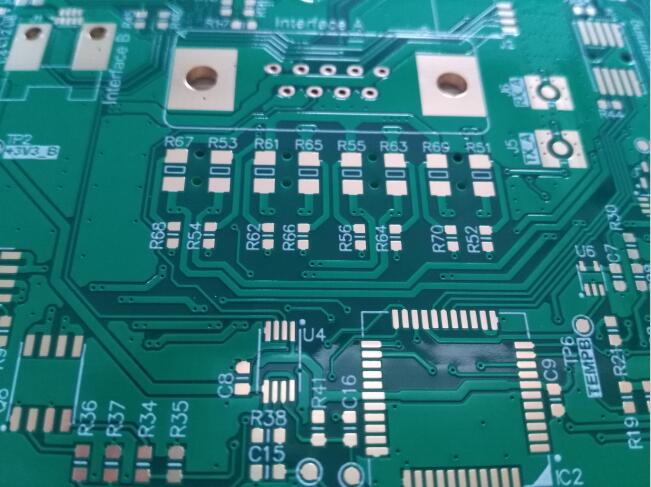

More photoes for this IPC Class 3 4 layers 1.6mm Immersion Gold 2u" min 0.15mm track large size PCB
