Double Sided FR4 HASL Lead Free Surface IPC Class 2 Printed Circuit Boards

Product Details:

Place of Origin:	China
Brand Name:	Kingsum Electronic Circuit
Certification:	ISO9001, TS16949, UL, RoHS
Model Number:	PCB-S-0035

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD/pc
Packaging Details:	Vacuum package
Delivery Time:	7~8 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	20,000 Square Meters / Month

GET A QUOTE

Detailed Product Description

Material:	FR-4	Layers:	Double Sided
Board Thickness:	1.6mm	Copper:	1oz
Surface:	HASL Lead Free	Standard Testing:	IPC Class 2
High Light:	electronics circuit board,flex pcb prototype

Double sided FR4 1.6mm 1oz HASL Lead Free PCB from experienced PCB manufacturer

Detail Specifications:

Layers: 2
Material: FR-4
Board thickness:1oz
Copper thickness:1.6mm
Surface treatment: ENIG
Min drill hole: 0.15mm
Min line track/space:0.15mm
Soldmask color: green
Silkscreen color: white
Quality standard: IPC class 2
Certifications: ISO9001, UL, RoHS Directive-compliant

To get a full quotation of the PCB/PCBA, pls provide the information as below:

Gerber File, with detail specification of the PCB
BOM List (Better with excel fomart)
Photoes of the PCBA (If you have done this PCBA before)

Manufacturer Capacity:

Capacity	Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month
Min Line Width/Gap	4/4 mil (1mil=0.0254mm)
Board Thickness	0.3~4.0mm
Layers	1~20 layers
Material	FR-4, Aluminum, PI
Copper Thickness	0.5~4oz
Material Tg	Tg140~Tg170
Max PCB Size	600*1200mm
Min Hole Size	0.2mm (+/- 0.025)
Surface Treatment	HASL, ENIG, OSP

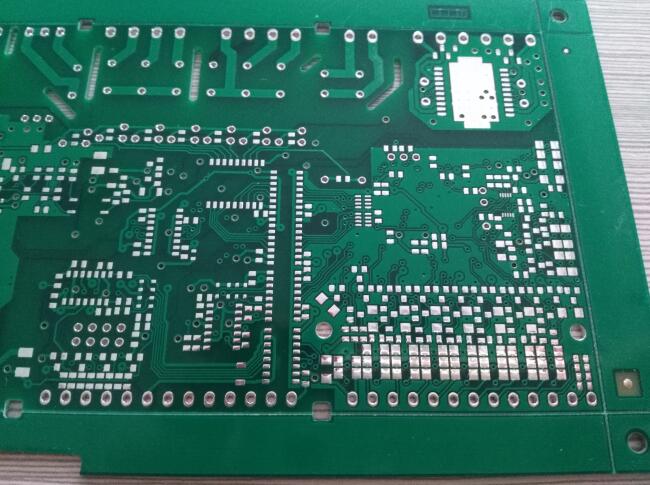

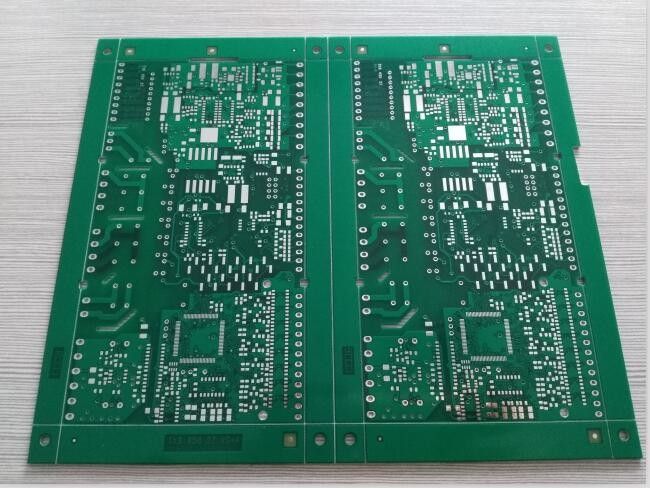

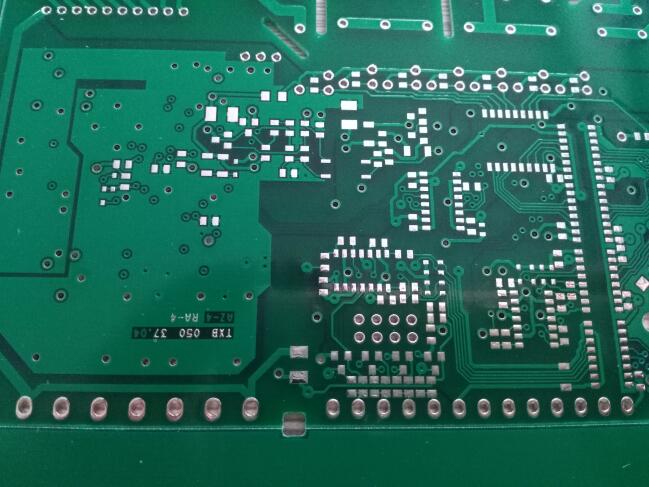

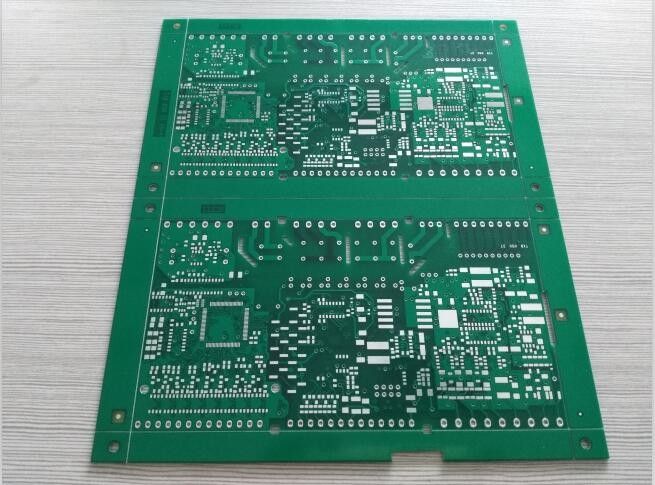

More photoes of double sided FR4 1.6mm 1oz HASL Lead Free PCB from experienced PCB manufacturer
