| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Kingsum Electronic |
| Certification: | IATF16949-2016 | ISO9001 2015 | UL 337072 | ROHS |
| Model Number: | Kingsum Electronic-A-173 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | 0.1-50USD |
| Packaging Details: | P/P,Carton,anti-static bag |
| Delivery Time: | 10 ~ 20 Work days |
| Payment Terms: | Western Union, T/T, L/C, D/P, MoneyGram |
| Supply Ability: | 100000 pieces |
| Product Name: | PCBA | Place Of Origin: | Shenzhen , China |
|---|---|---|---|
| Min. Line Spacing: | 3 Mil (0.075 Mm) | Min. Hole Size: | 3mil (0.075mm) |
| Brand Name: | OEM | Components Purchasing: | Support |
| SMT DIP Assembly: | Support | Type: | SMT&DIP Assembly |
| High Light: | pcb board assembly,pcb prototype assembly | ||
4 Layers FR4 PCB, Electronic Circuit Board Assembly& Multilayer-PCBA Assembly
1. Features
1.Surface Mount PCB assembly (Both rigid PCB, flexible PCB);FR4 Material, Meet 94V0 standard
2.One Stop OEM Service,&PCBA contract manufacturing:
3.Electronic contract manufacturing service
4.Through hole assembly/DIP assembly;
5.Bonding assembly;
6.Final assembly;
7.Full Turnkey Box Build
8.Mechanical / electrical assembly
9.Supply Chain Management/Components procurement
10.PCB fabrication;
11.Technical support/ ODM service
12. Surface treament:OSP, ENIG,Lead Free HASL, Environmental Protection
13. UL, CE, ROHS Compliant
14. Shipping By DHL,UPS, TNT, EMS or Customer requirement
2. PCBA Technical capability
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
| Max. component height::25mm | |
| Max. PCB size:680×500mm | |
| Min. PCB size:no limited | |
| PCB thickness:0.3 to 6mm | |
| PCB weight:3KG | |
| Wave-Solder | Max. PCB width:450mm |
| Min. PCB width: no limited | |
| Component height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum | |
| Surface Finish:plating Au, plating sliver , plating Sn | |
| Air bladder rate:less than20% | |
| Press-fit | Press range:0-50KN |
| Max. PCB size:800X600mm | |
| Testing | ICT,Probe flying,burn-in,function test,temperature cycling |

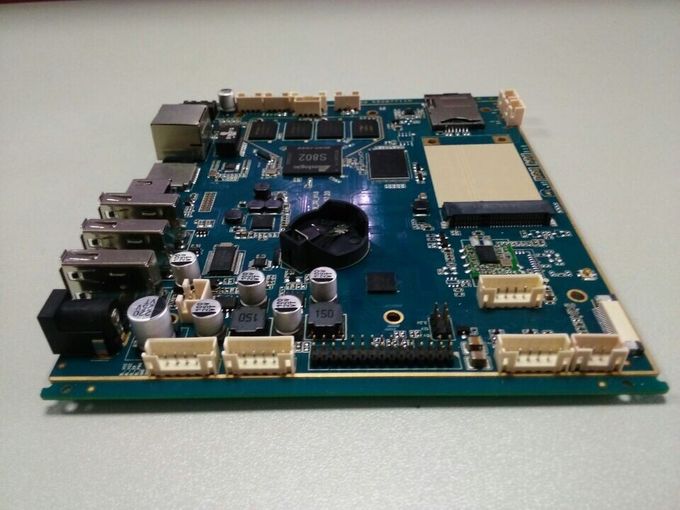

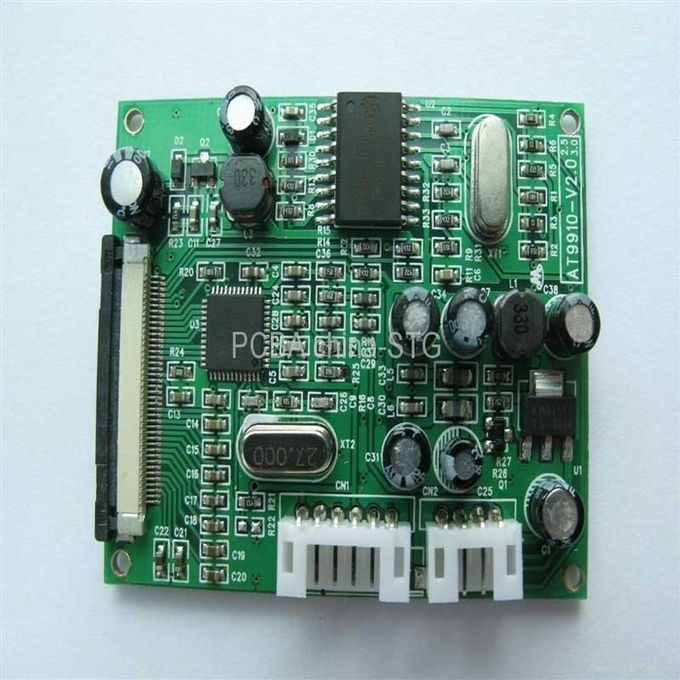

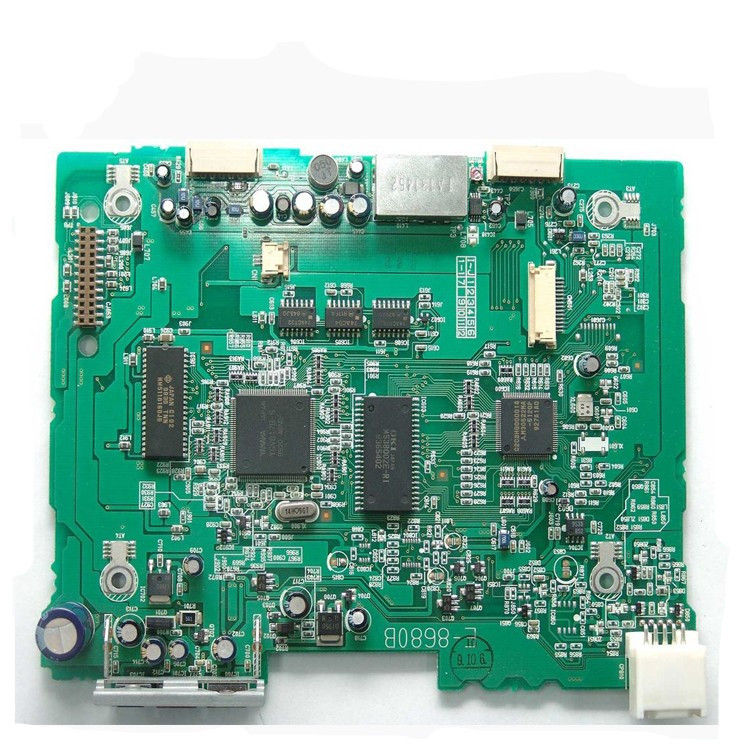

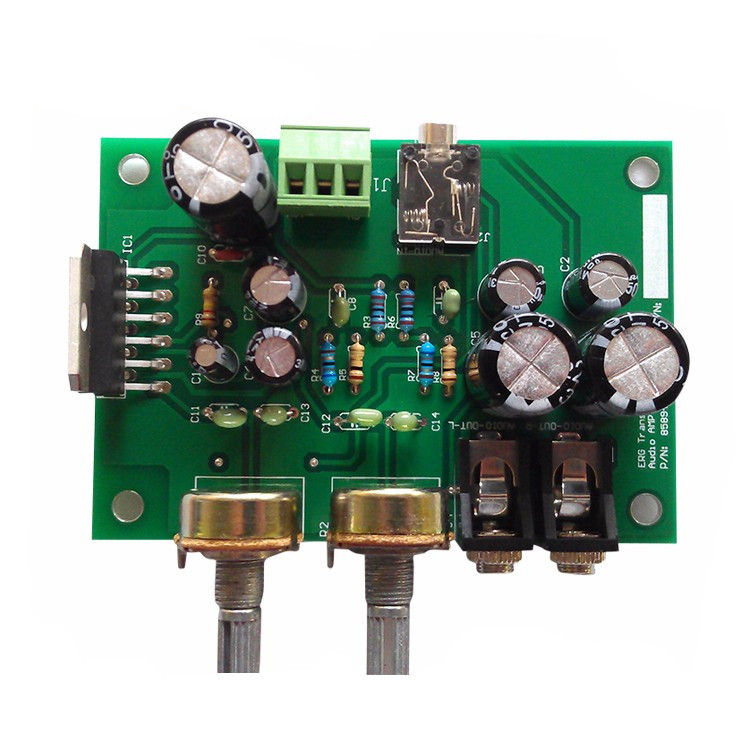

3. PCBA Pictures
