| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Kingsum Electronic |
| Certification: | IATF16949-2016 | ISO9001 2015 | UL 337072 | ROHS |
| Model Number: | Kingsum Electronic-A-227 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | 0.1-20USD |
| Packaging Details: | Carton;P/P,Anti-static Bag. |
| Delivery Time: | 10 ~ 20 Work days |
| Payment Terms: | Western Union, T/T, L/C, D/P, MoneyGram |
| Supply Ability: | 100000 pieces |
| Product Name: | PCBA | Place Of Origin: | Shenzhen, China |
|---|---|---|---|
| Min. Line Spacing: | 3 Mil (0.075 Mm) | Min. Hole Size: | 3mil (0.075mm) |
| Brand Name: | OEM | Components Purchasing: | OK |
| SMT DIP Assembly: | Support | Type: | Multilayer PCB |
| High Light: | electronic pcb assembly,pcb board assembly | ||
SMT#DIP#AOI testing#X-Ray Testing# Printed Circuit Board#PCB Assembly#PCBA Testing#Box Building
1. Features
1. One Stop OEM Service, Made in Shenzhen of China
2. Manufactured by Gerber File and BOM List from Customer
3.Components procument
4.Components Assembly
5.Box building and testing
6. FR4 Material, Meet 94V0 standard
7. SMT, DIP technology suport
8. Lead Free HASL, Environmental Protection
9. UL, CE, ROHS Compliant
10. Shipping By DHL,UPS, TNT, EMS or Customer requirement
2. PCBA Technical capability
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
| Max. component height::25mm | |
| Max. PCB size:680×500mm | |
| Min. PCB size:no limited | |
| PCB thickness:0.3 to 6mm | |
| PCB weight:3KG | |
| Wave-Solder | Max. PCB width:450mm |
| Min. PCB width: no limited | |
| Component height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum | |
| Surface Finish:plating Au, plating sliver , plating Sn | |
| Air bladder rate:less than20% | |
| Press-fit | Press range:0-50KN |
| Max. PCB size:800X600mm | |
| Testing | ICT,Probe flying,burn-in,function test,temperature cycling |

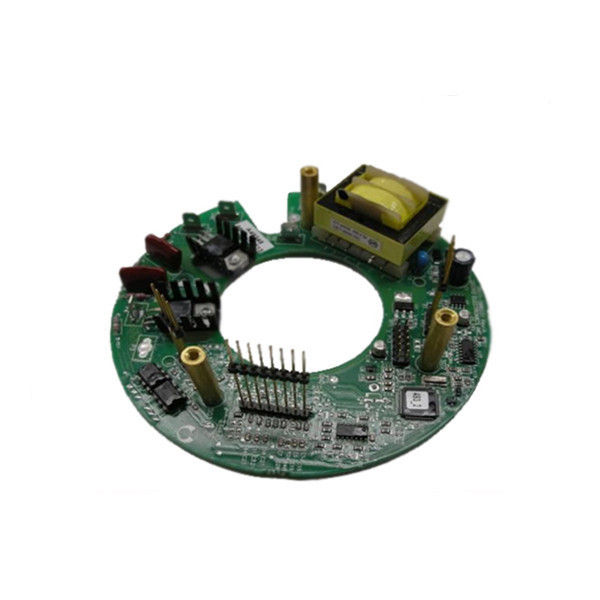

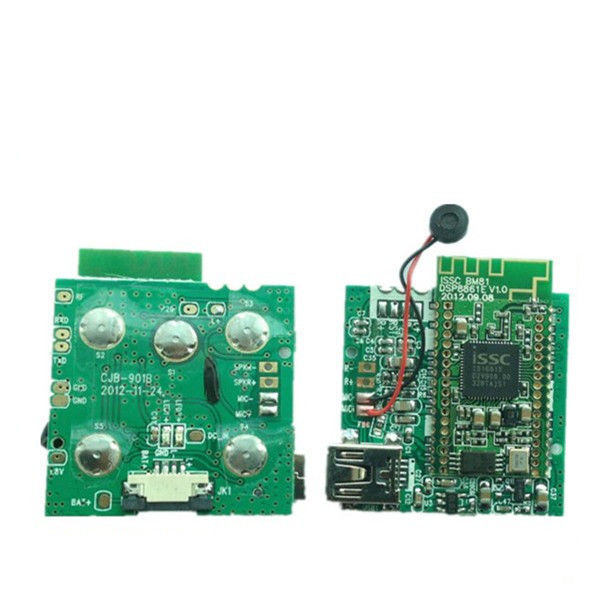

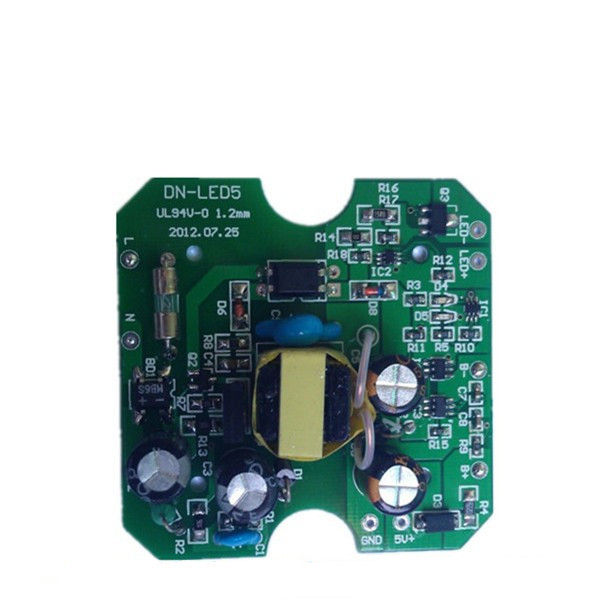

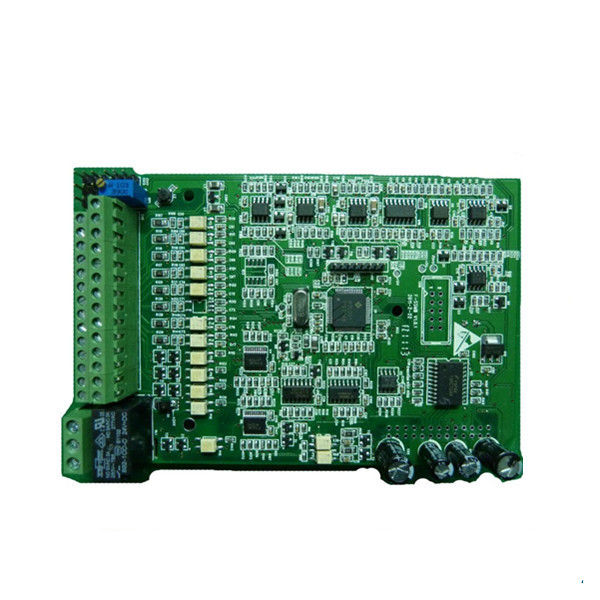

3. PCBA Pictures
