1. Features



1. One Stop OEM Service, Made in Shenzhen of China

2. Manufactured by Gerber File and BOM List from Customer

3. Components procument

4.Components Assembly

5.Box building and testing

6. FR4 Material, Meet 94V0 standard

7. SMT, DIP technology suport

8. Lead Free HASL, Environmental Protection

9. UL, CE, ROHS Compliant

10. Shipping By DHL,UPS, TNT, EMS or Customer requirement



2. PCB&PCBA Technical capability



SMT	Position accuracy:20 um
	Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
	Max. component height::25mm
	Max. PCB size:680×500mm
	Min. PCB size:no limited
	PCB thickness:0.3 to 6mm
	PCB weight:3KG
Wave-Solder	Max. PCB width:450mm
	Min. PCB width: no limited
	Component height:Top 120mm/Bot 15mm
Sweat-Solder	Metal type :part, whole, inlay, sidestep
	Metal material:Copper , Aluminum
	Surface Finish:plating Au, plating sliver , plating Sn
	Air bladder rate:less than20%
Press-fit	Press range:0-50KN
	Max. PCB size:800X600mm
Testing	ICT,Probe flying,burn-in,function test,temperature cycling





2. PCBA Pictures

1/FR4 PCB#OEM #LCD Display#Electronic Circuit Board #Circuit Assembly#PCBA #Multilayer PCB Assembly#PCBA Testing

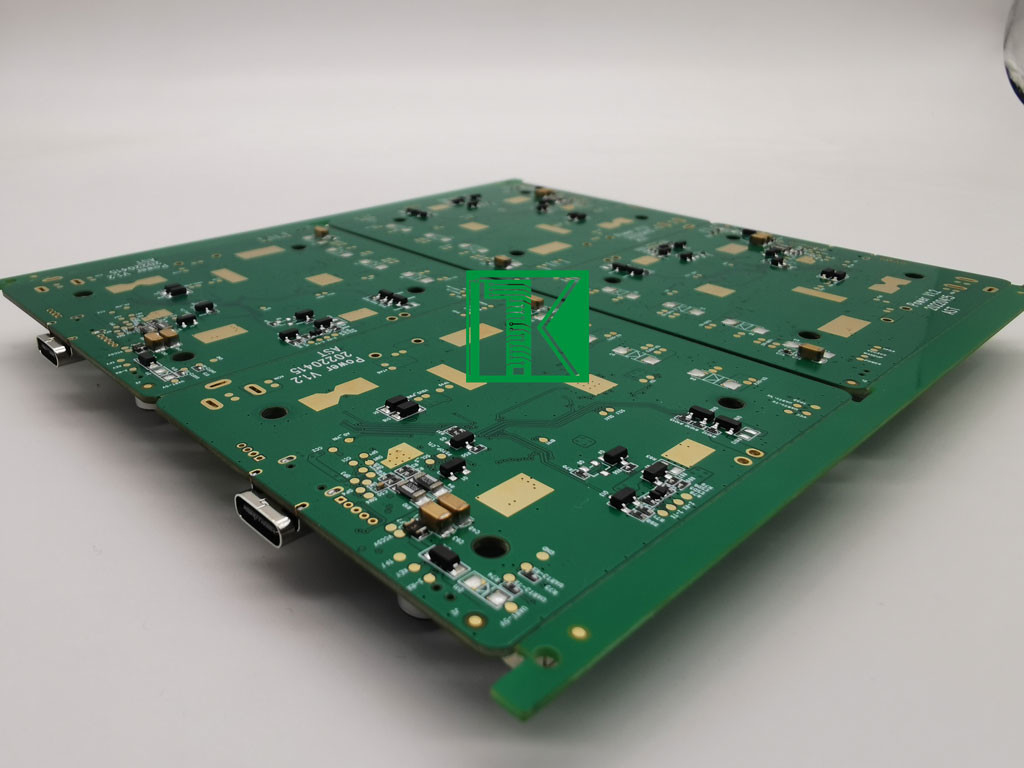

2/OEM/ODM,PCBA Manufacturing;Components sourcing&components Alessembly

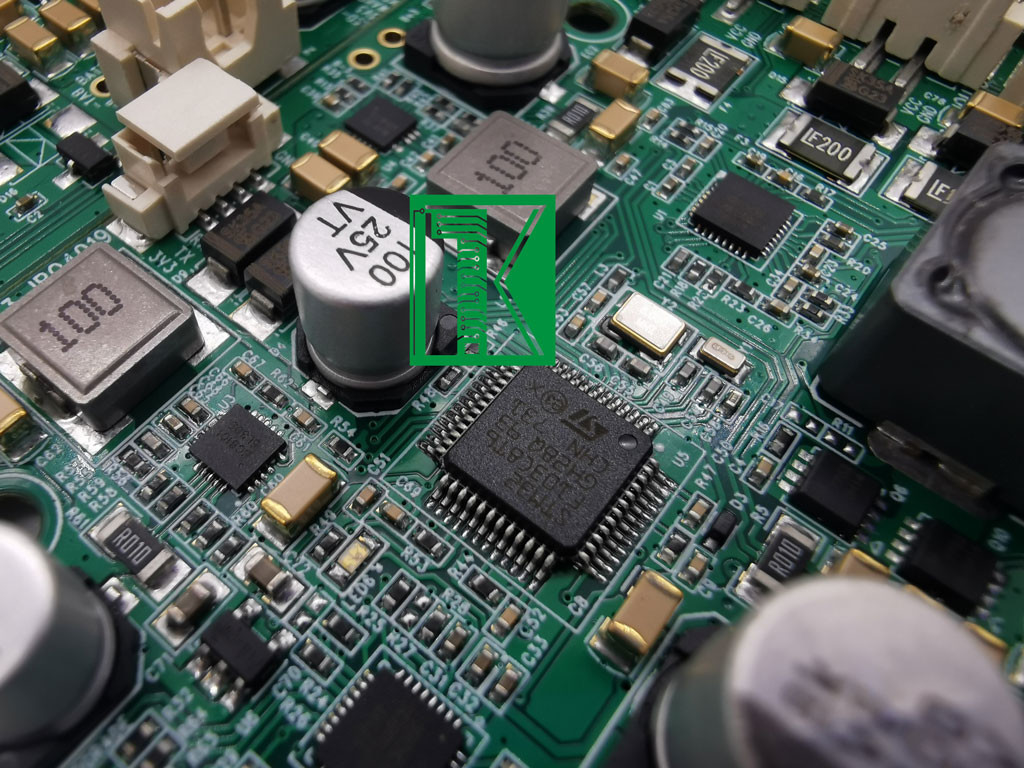

3/Multilayer PCB#FR4 PCB#OEM# Electronic Circuit Board Assembly# SMT#DIP#Components assembly#PCBA Testing

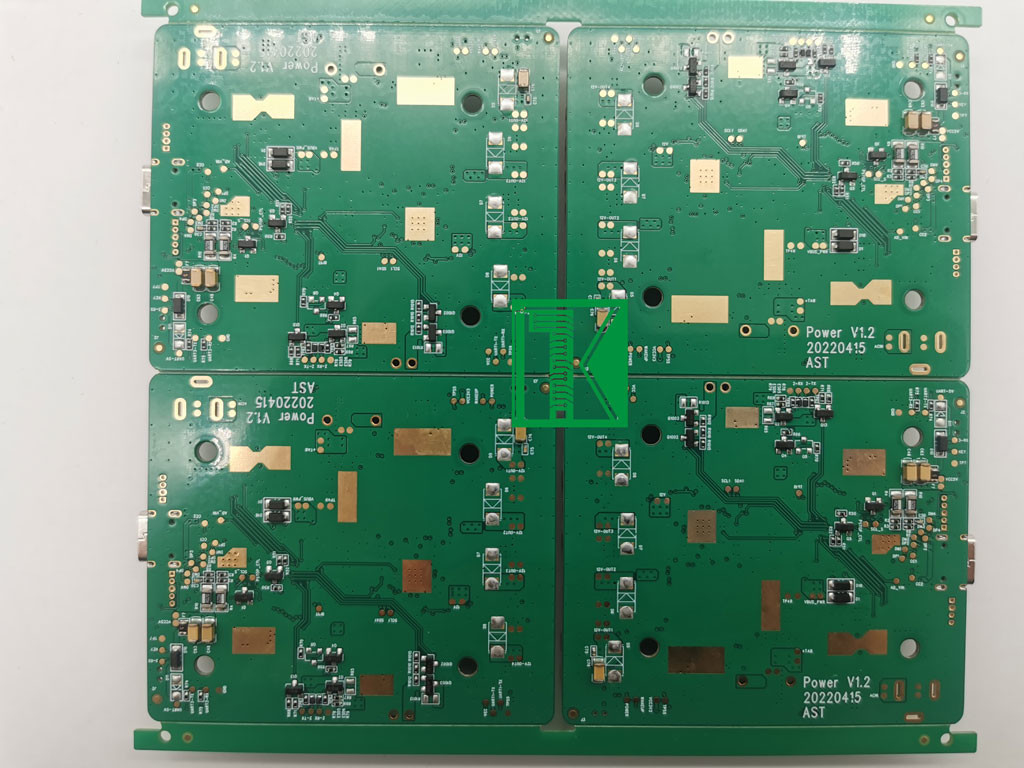

4/SMT#DIP#AOI testing#X-Ray Testing# Printed Circuit Board#PCB Assembly#PCBA Testing#Box Building

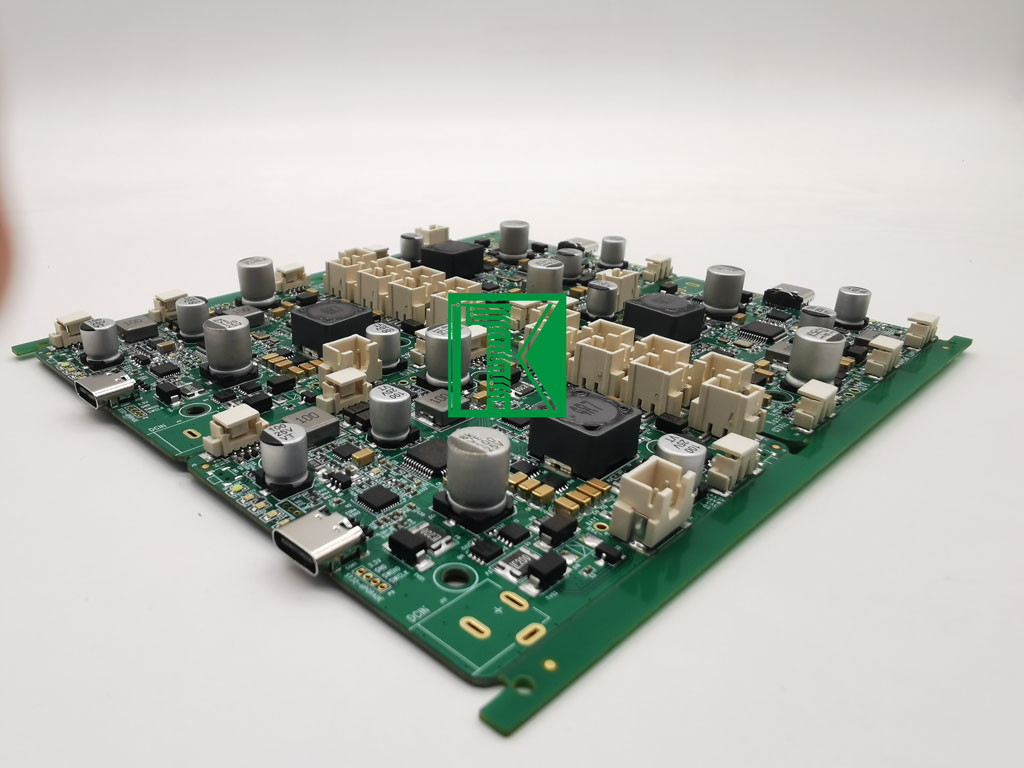

5/FR4 PCB#Prototype Assembly#Small&Medium Volume&Hign Mixed#Quick-Turn#PCB Assembly#Double-sided Printed Circuit Board

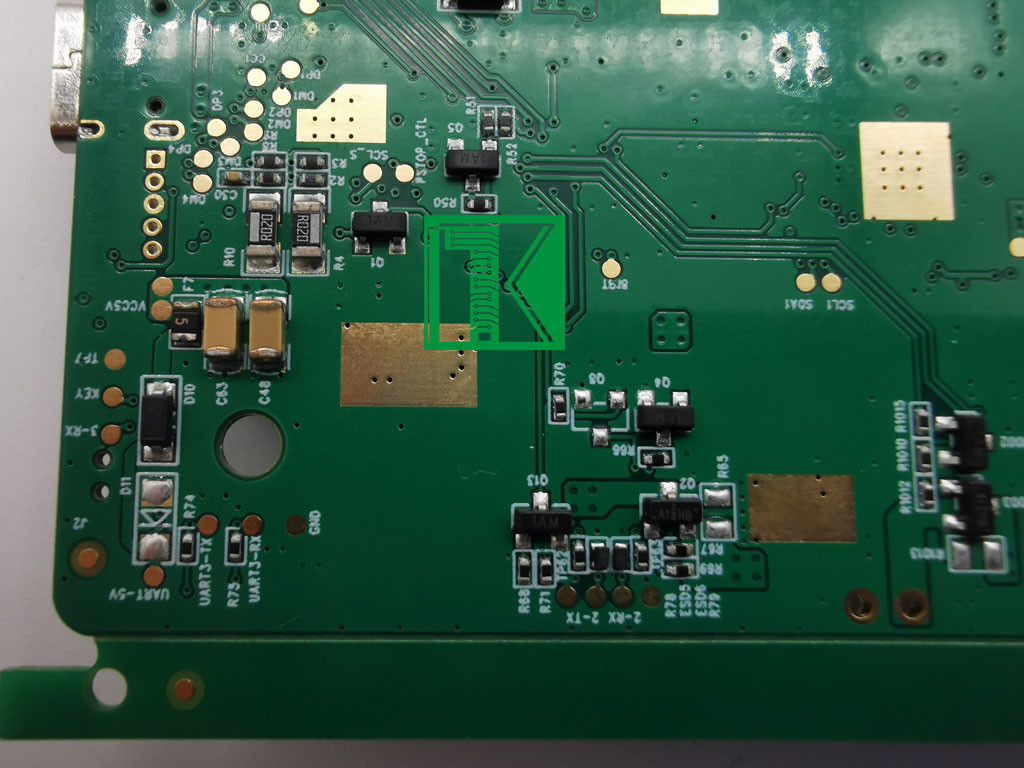

6/Rigid-Flex Printed Circuit Board&Rigid Circuit Board# Multilayer Printed Circuit Board# ENIG / HASL/OSP# Surface treament.Components Sourcing#Components Assembly

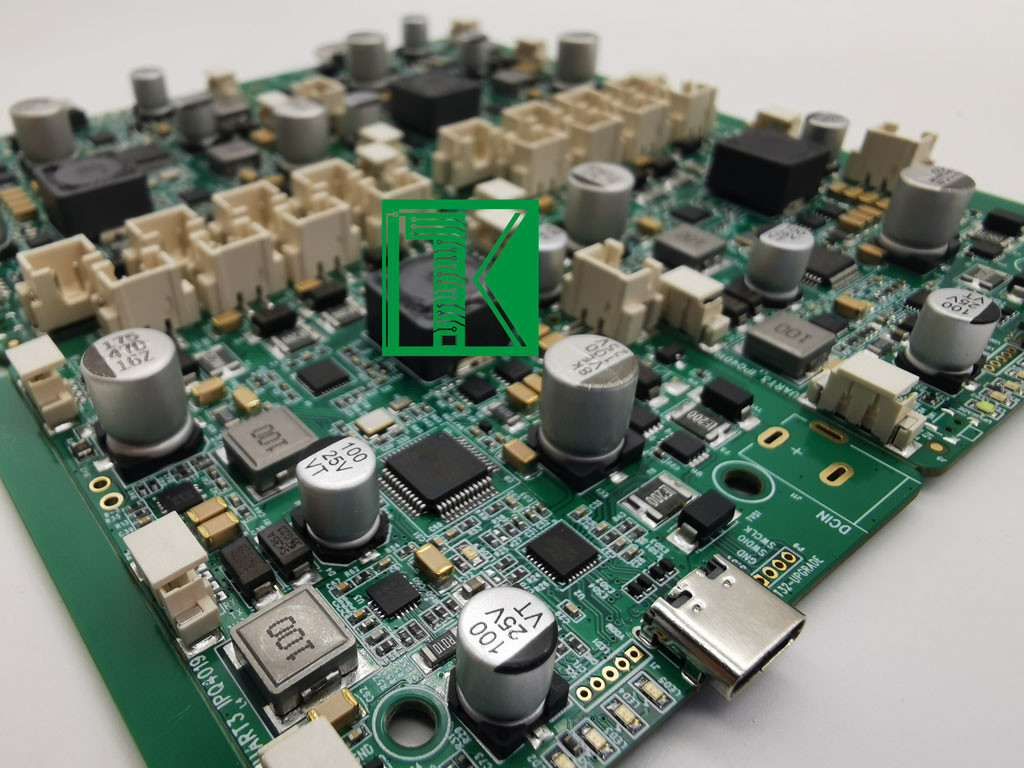

7/TQFP-64 &TQFP-48 *TO DIP& FR4 HDI Printed Circuit Boards adapter Test Board

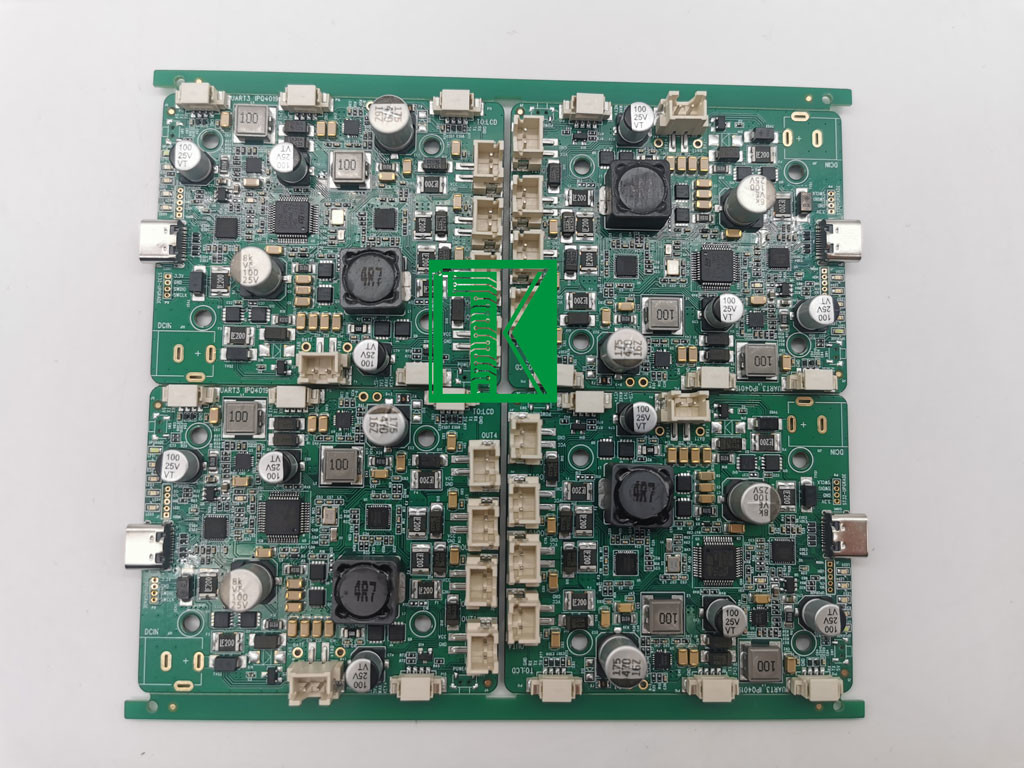

8/Gold Plating Multilayer Pinted Circuit Boards Standalone Access Controller Audio Extractor&NIAU Surfacce Treatment

KAZ Circuit has been operating as a manufacturer of PCB&PCBA since 2007. specialized in quick-turn manufacturing of prototypes and small to middle volume series of rigid, flex, rigid-flex and multilayer boards.

as well as aluminium substrate circuit board.we have a strong strength on fabrication of Roger board, MEGTRON MATERIAL board and 2&3 steps HDI boards and etc.

Beside with six SMT production lines and 2 DIP lines.we provide one-stop service to our customers as well.

Packing:Carton;P/P,Anti-static Bag.



Manufacturer Capacity:

Capacity	Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month
Min Line Width/Gap	4/4 mil (1mil=0.0254mm)
Board Thickness	0.3~4.0mm
Layers	1~30 layers
Material	FR-4, Aluminum, PI,MEGTRON MATERIAL
Copper Thickness	0.5~4oz
Material Tg	Tg135~Tg170
Max PCB Size	600*1200mm
Min Hole Size	0.2mm (+/- 0.025)
Surface Treatment	HASL, ENIG, OSP
