Layer: 2-6Layers
Materials: FR4 laminate, RoHS Directive-compliant
PCB thickness: 0.8-1.6mm
Final copper: 1-3oz
Min hole: 0.2mm
Min line width/space: 4/4 mil
Solder masks: Blue
Legend: White

Surface: OSP/HAL lead-free/immersion gold/immersion tin/immersion silver
Outline: rout and score/V-cut
E-test: 100%
Inspection standard: IPC-A-600H/IPC-6012B, class 2/3
Outgoing reports: final Inspection, E-test, solderability test, micro section
Certifications: IATF16949-2016 | ISO9001 2015 | UL 337072 | ROHS

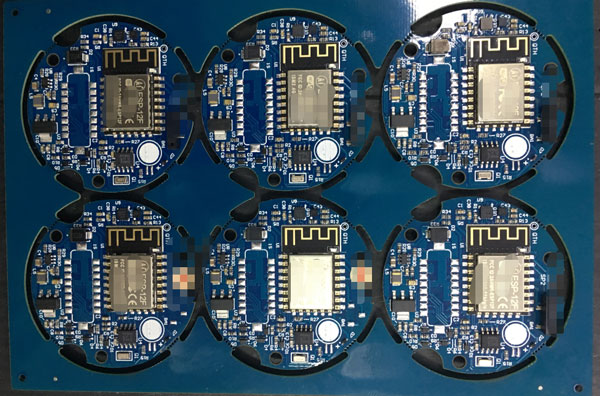

Pictures:

What Kingsum Electronic Circuit can do for you:

• PCB fabrication (prototype, small to medium, mass production)
• Components Sourcing
• PCB Assembly/SMT/DIP
• Box Building and Testing

To get a full quotation of the PCB/PCBA, pls provide the information as below:

• Gerber File, with detail basic specification of the PCB(such as board materials,board thickness,surface treatment,finish copper thickness and etc.)
• BOM List (Better in excel format)

• Photos of the PCBA (If you have produce this PCBA before)





Company Informaiton:
Kingsum Electronic Circuit has been operating as a manufacturer of PCB&PCBA since 2007. specialized in quick-turn manufacturing of prototypes and small to middle volume series of rigid, flex, rigid-flex and multilayer boards.

as well as aluminium substrate circuit board.we have a strong strength on fabrication of Roger board, MEGTRON MATERIAL board and 2&3 steps HDI boards and etc.

Beside with six SMT production lines and 2 DIP lines.we provide one-stop service to our customers.

Manufacturer Capacity:
