| 原产地： | 中国 |
|---|---|
| 品牌名称： | Kingsum Electronic |
| 认证： | UL/ROHS/ISO9001 |
| 型号： | Kingsum ElectronicA-017 |
| 最小订单数量： | 1台 |
|---|---|
| 价格： | 1-20美元 |
| 包装细节： | P/P |
| 交货时间： | 10~20个工作日 |
| 付款条件： | 西联汇款、电汇、信用证、付款交单、速汇金 |
| 供应能力： | 100000件 |
| Product Name: | PCBA | Min. Line Spacing: | 3 Mil (0.075 Mm) |
|---|---|---|---|
| Min. Hole Size: | 3mil (0.075mm) | Brand Name: | OEM |
| Components Purchasing: | OK | SMT DIP Assembly: | Support |
| Type: | SMT Assembly | ||
| High Light: | fr4 circuit board, pcba circuit board | ||
1. Features of SATA PCBA
1. One Stop OEM Service, Made in Shenzhen of China
2. Manufactured by Gerber File and BOM List from Customer
3. FR4 Material, Meet 94V0 standard
4. SMT, DIP technology suport
5. Lead Free HASL, Environmental Protection
6. UL, CE, ROHS Compliant
7. Shipping By DHL,UPS, TNT, EMS or Customer requirement
2. SATA PCBA capability
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
| Max. component height::25mm | |
| Max. PCB size:680×500mm | |
| Min. PCB size:no limited | |
| PCB thickness:0.3 to 6mm | |
| PCB weight:3KG | |
| Wave-Solder | Max. PCB width:450mm |
| Min. PCB width: no limited | |
| Component height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum | |
| Surface Finish:plating Au, plating sliver , plating Sn | |
| Air bladder rate:less than20% | |
| Press-fit | Press range:0-50KN |
| Max. PCB size:800X600mm | |
| Testing | ICT,Probe flying,burn-in,function test,temperature cycling |

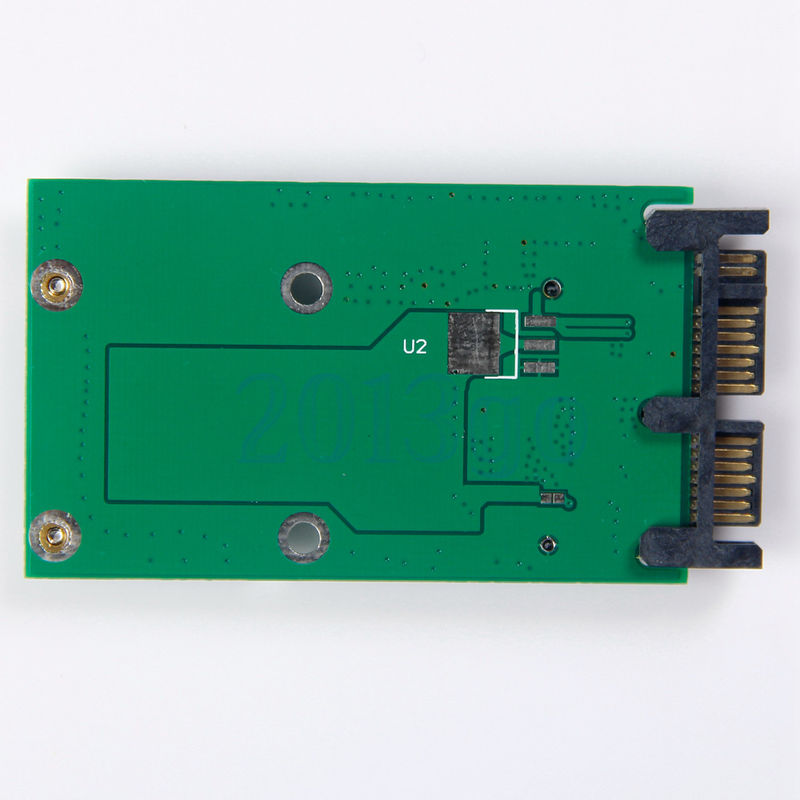

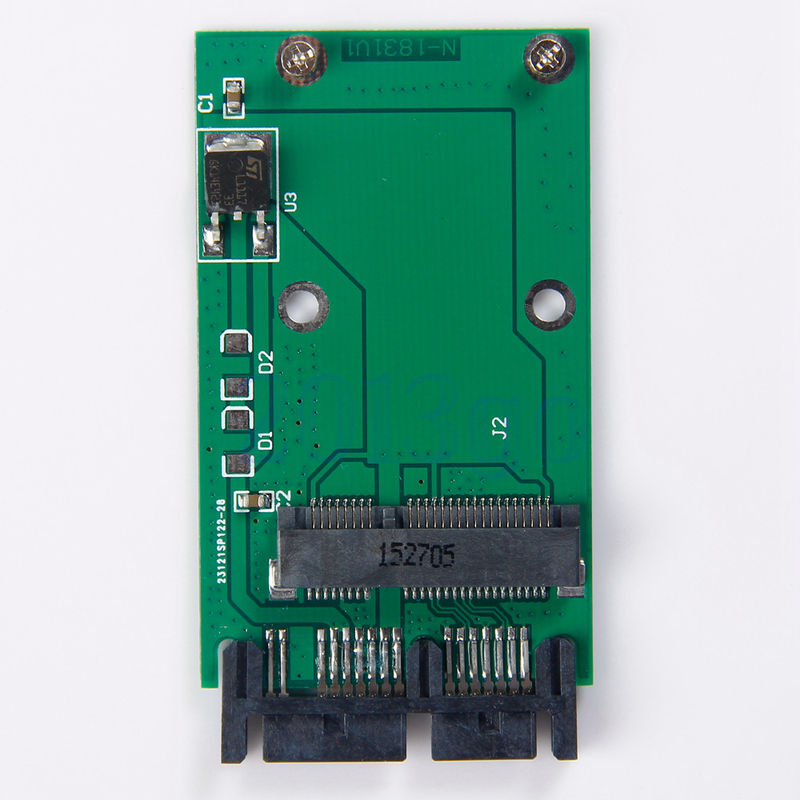

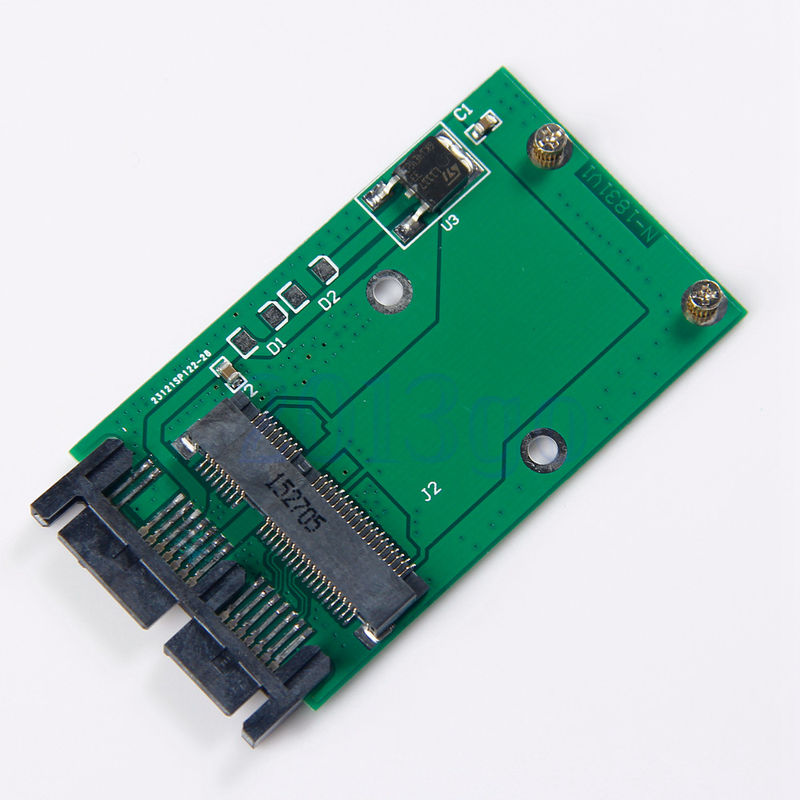

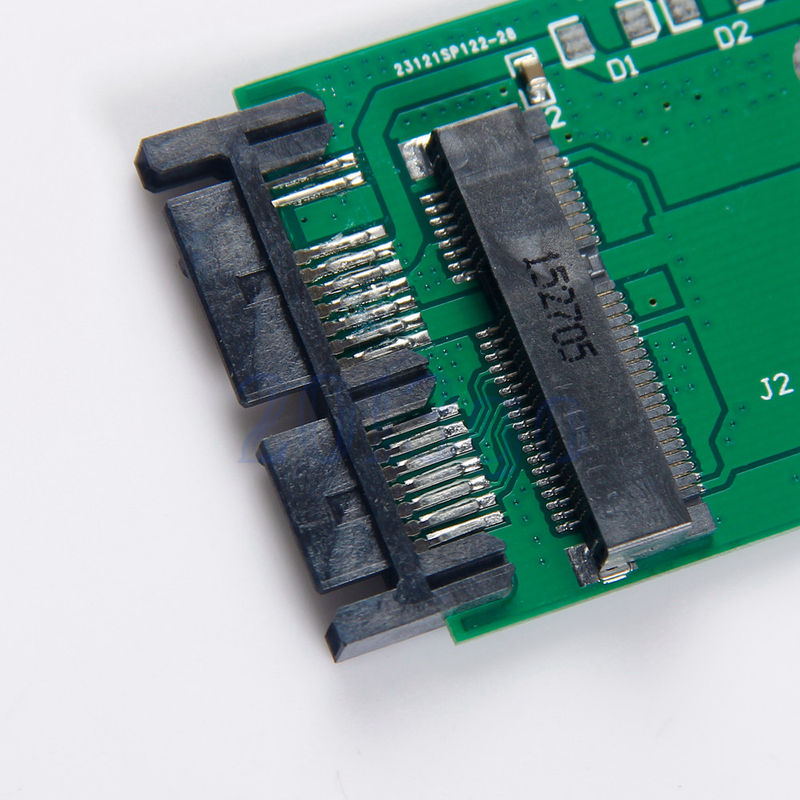

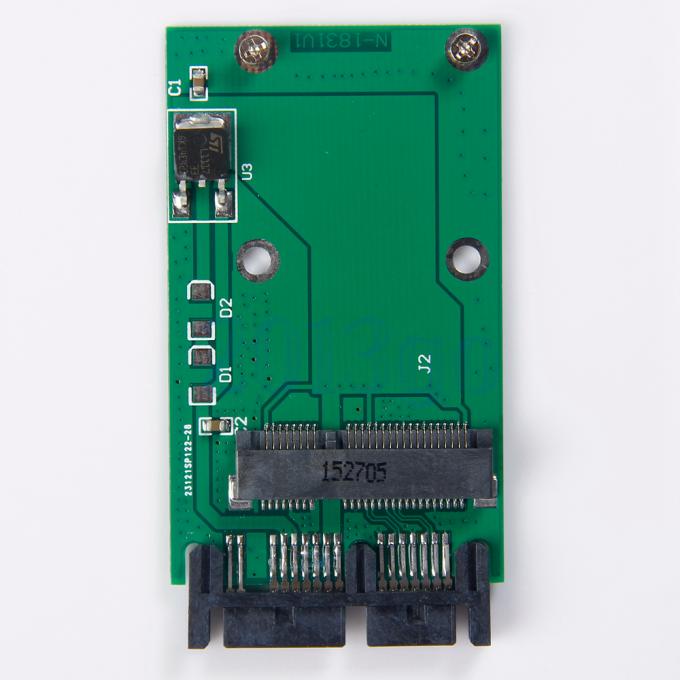

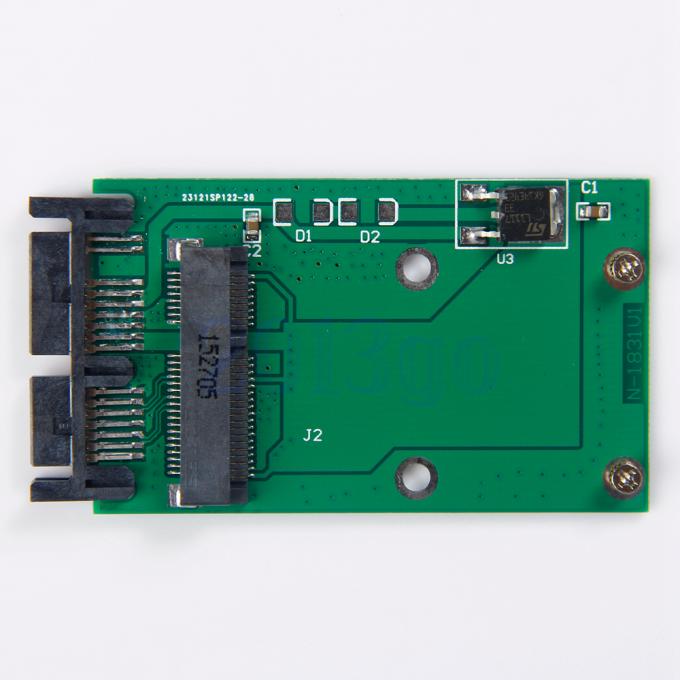

3. SATA PCBA Pictures
