PCB Assembly is 4 layer it is used for security equipment application. we can accept PCB prototype,samll volum, middle and large volume. no MOQ request for new order.all of our PCB are met UL, TS 16949,ROHS, ISO etc. certification.

2. Specification Of PCB Assembly Service

1	Layer	1-30 layer
2	Material	FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum
3	Board thickness	0.2mm-7mm
4	Max.finished board side	500mm*500mm
5	Min.drilled hole size	0.25mm
6	Min.line width	0.075mm(3mil)
7	Min.line spaceing	0.075mm(3mil)
8	Surface finish/treatment	HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
9	Copper thickness	0.5-4.0oz
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vacuum packing, Plastic bag
12	Outer packing	Standard carton packing
13	Hole tolerance	PTH:±0.076, NTPH:±0.05
14	Certificate	UL, ISO9001, ISO14001, ROHS, CQC
15	Profiling Punching	Routing, V-CUT, Beveling
16	Assembly Service	Providing OEM service to all sorts of printed circuit board assembly

3. Products Application:

1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense

8, Automotive

9, Smart Home

10, Industrial Automation

11, Medical Devices

12, New Energy

And so on

4. Advantage Of PCB Assembly Service

• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test

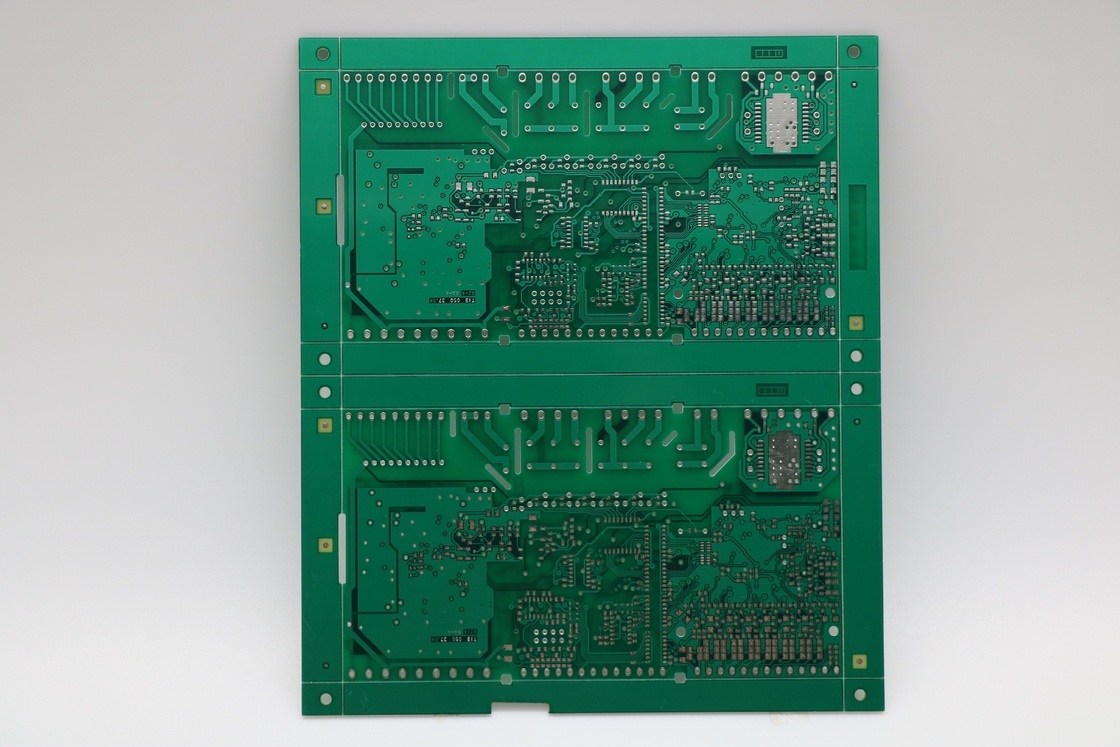

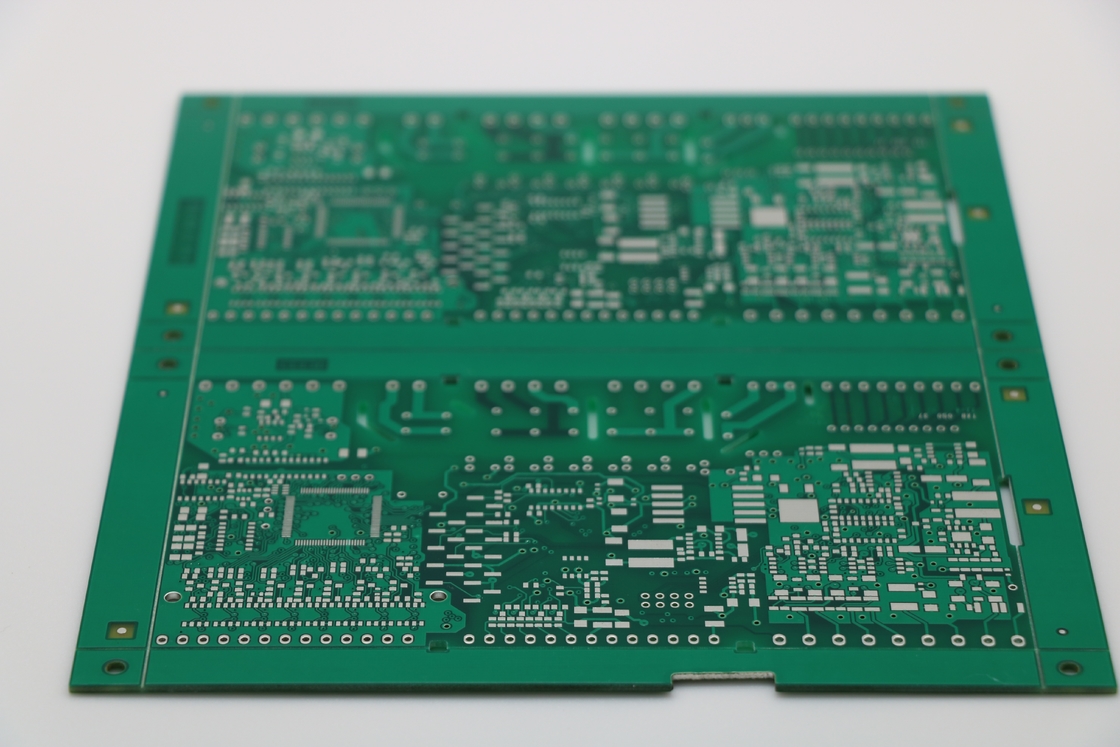

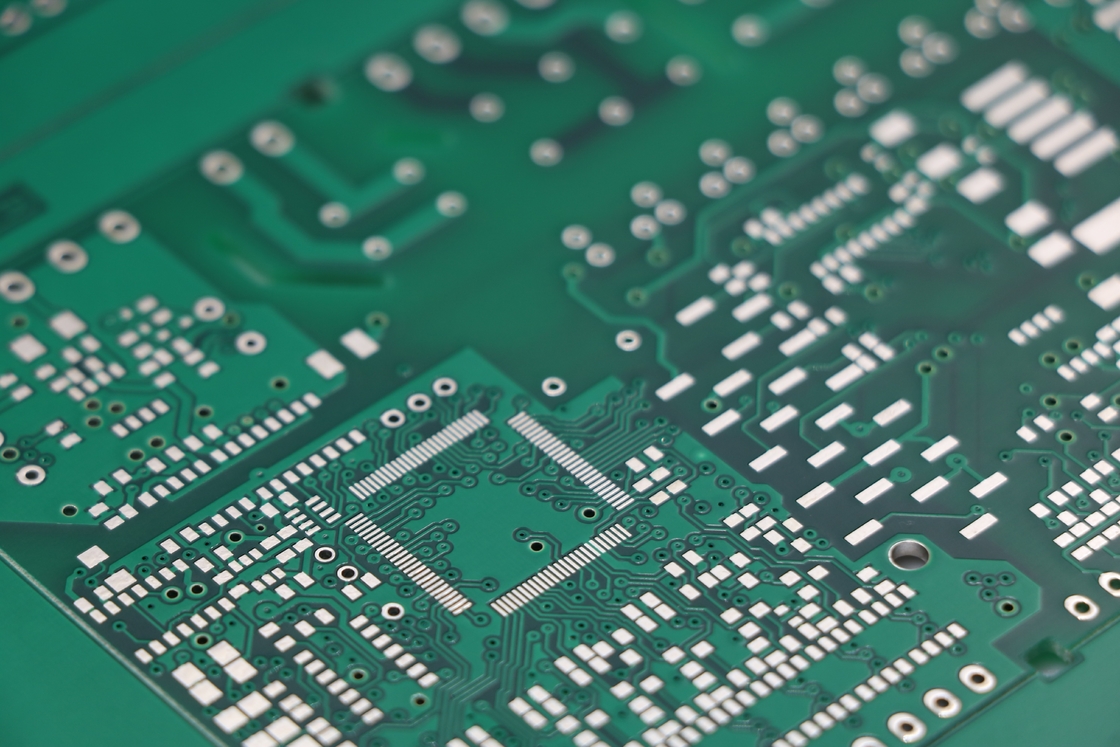

5. Picture



6. OEM/ODM/EMS Services For PCBA:

PCBA, PCB Board assembly: SMT & PTH & BGA

PCBA and enclosure design

Components sourcing and purchasing

Quick prototyping

Plastic injection molding

Metal sheet stamping

Final assembly

Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

Custom clearance for material importing and product exporting



FAQ

Q1: Are you a factory or trading company?

-----We are a factory,Our company mainly sells PCB Assembly Service

Q2: Do you accept sample order?

------Yes, we can accept sample order.

Q3: What's your warranty policy?

-----We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.

Q4: What's your payment terms?

------We accept T/T in advance, paypal, or alipay account.

Q5:What's the lead time for mass order?

------Normally, it takes about 20-35 days, depends on the order quantity
