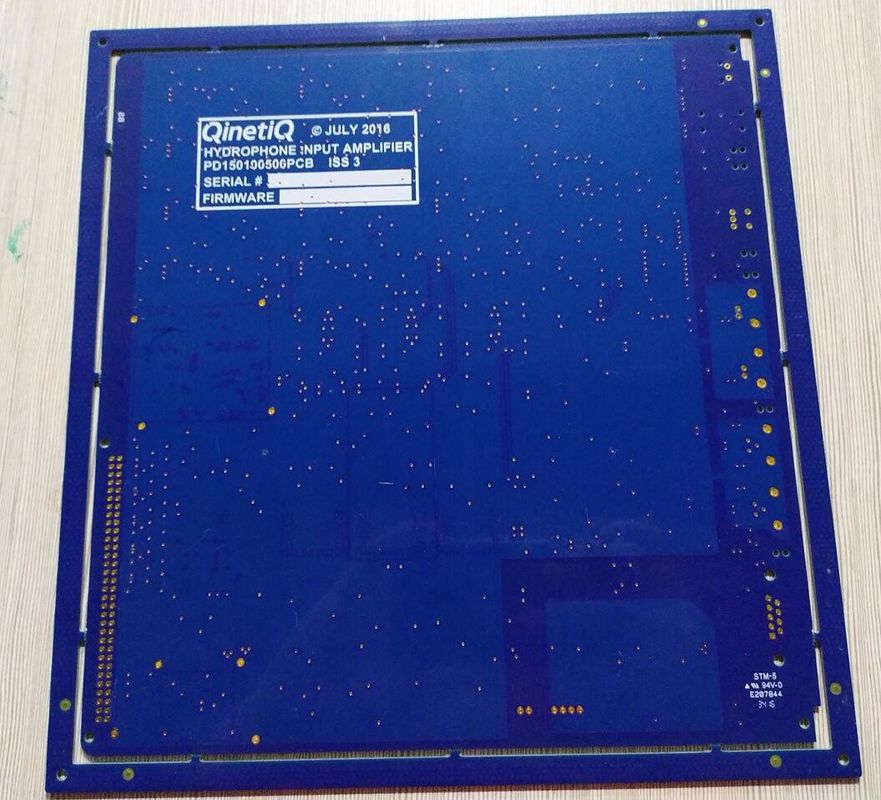

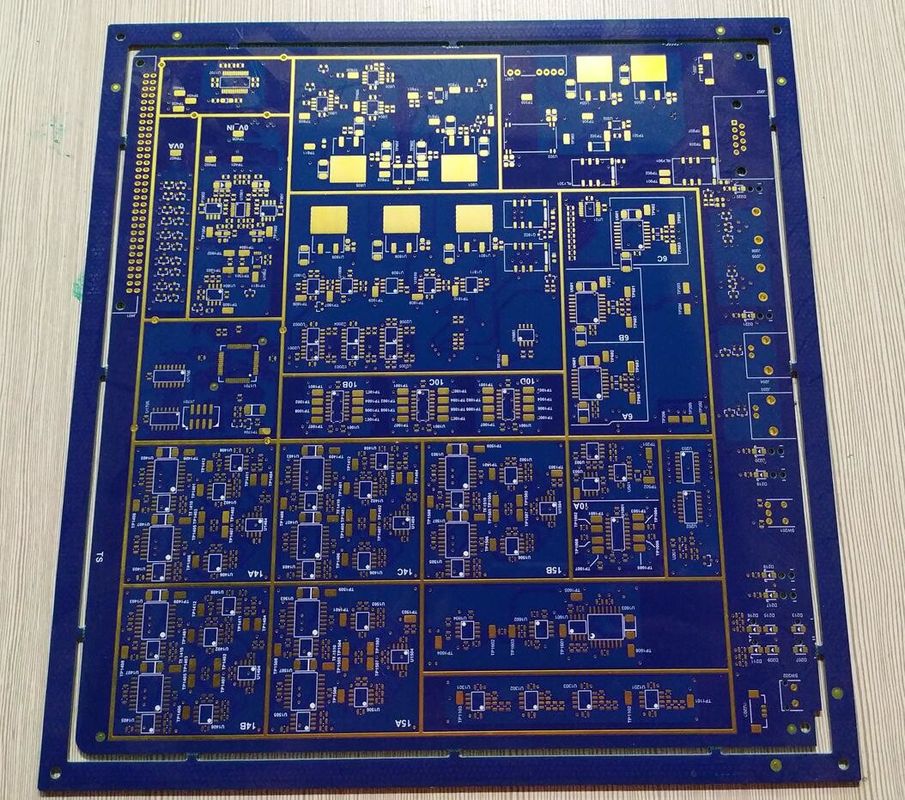

Detail Specifications:

Layers	8
Material	FR-4
Board Thickness	1.6mm
Copper Thickness	1oz
Surface Treatment	ENIG 1u"
Soldmask & Silkscreen	Blue & White
Quality Standard	IPC Class 2, 100% E-testing
Certificates	TS16949, ISO9001, UL, RoHS

What Kingsum Electronic Circuit can do for you:

• PCB & PCBA Design
• PCB manufacturing (prototype, small to medium, mass production)
• Components Sourcing
• PCB Assembly/SMT/DIP

To get a full quotation of the PCB/PCBA, pls provide the information as below:

• Gerber File, with detail specification of the PCB
• BOM List (Better with excel fomart)
• Photoes of the PCBA (If you have done this PCBA before)



Company Informaiton:

Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!



Manufacturer Capacity:

Capacity	Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month
Min Line Width/Gap	4/4 mil (1mil=0.0254mm)
Board Thickness	0.3~4.0mm
Layers	1~20 layers
Material	FR-4, Aluminum, PI
Copper Thickness	0.5~4oz
Material Tg	Tg140~Tg170
Max PCB Size	600*1200mm
Min Hole Size	0.2mm (+/- 0.025)
Surface Treatment	HASL, ENIG, OSP

SMT Capacity
