| 原产地： | 中国 |
|---|---|
| 品牌名称： | KAZ |
| 认证： | UL-ROHS |
| 型号： | KAZA-0038 |
| 最小订单数量： | 1台 |
|---|---|
| 价格： | 0.1-20美元/台 |
| 包装细节： | 真空包装 |
| 交货时间： | 5-30 |
| 付款条件： | 电汇、西联汇款、速汇金、信用证、承兑交单 |
| 供应能力： | 2000平方米/月 |
| Max Board Size: | 600 Mm X 1200 Mm | Base Material For PCB: | FR4, CEM-1, TACONIC, Aluminium, High Tg Material, High Frequence ROGERS ,TEFLON, ARLON, Halogen-free Material |
|---|---|---|---|
| Rang Of Finish Baords Thickness: | 0.21-7.0mm | Minimum Line Width: | 3mil (0.075mm) |
| Finishing Treatment: | HASL (Tin-Lead Free), ENIG(Immersion Gold), Immersion Silver , Gold Plating (Flash Gold), OSP, Etc. | Thickness Of Copper: | 0.5-14oz (18-490um) |
| E-Testing: | 100% E-Testing (High Voltage Testing); Flying Probe Testing | Layers: | 6Layers |
| Copper: | 2OZ | Surface: | ENIG/HASL |
| Silkmask: | White | Soldmask: | Black/Green/ |
| High Light: | HASL LF PCBA Design, Quick Turn PCBA Design, SMT DIP Printed Circuit Board Assembly | ||
HASL LF PCBA Design Service SMT DIP Printed Circuit Board Assembly
OEM ODM service offer gsm security PCB design/electronic chart design developing
1. Description Of PCB Assembly Service
PCB Assembly is 4 layer it is used for security equipment application. we can accept PCB prototype,samll volum, middle and large volume. no MOQ request for new order.all of our PCB are met UL, TS 16949,ROHS, ISO etc. certification.
2. Specification Of PCB Assembly Service
| 1 | Layer | 1-30 layer |
| 2 | Material | FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum |
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 500mm*500mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating |
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing, Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076, NTPH:±0.05 |
| 14 | Certificate | UL, ISO9001, ISO14001, ROHS, CQC |
| 15 | Profiling Punching | Routing, V-CUT, Beveling |
| 16 | Assembly Service | Providing OEM service to all sorts of printed circuit board assembly |
3. Products Application:
1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense
8, Automotive
9, Smart Home
10, Industrial Automation
11, Medical Devices
12, New Energy
And so on
4. Advantage Of PCB Assembly Service
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test

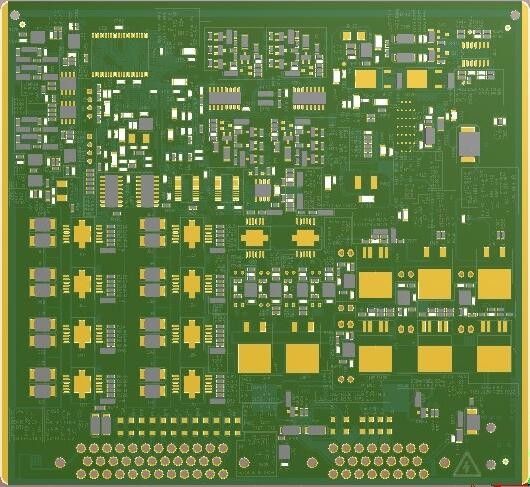

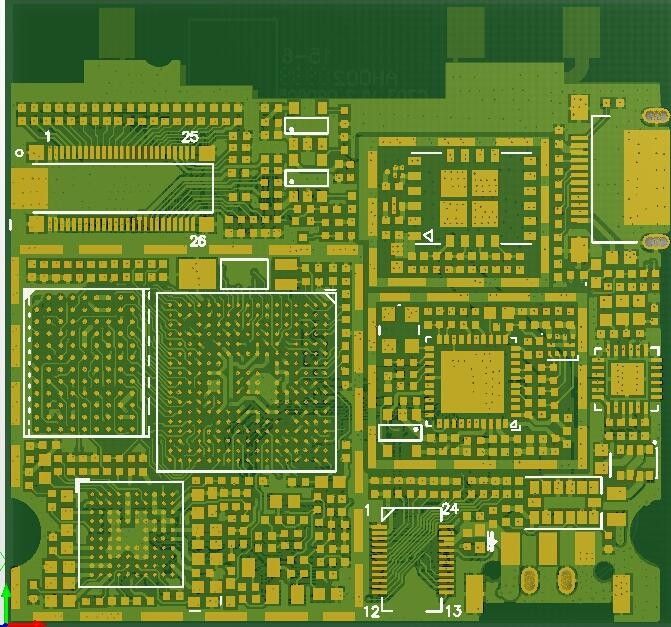

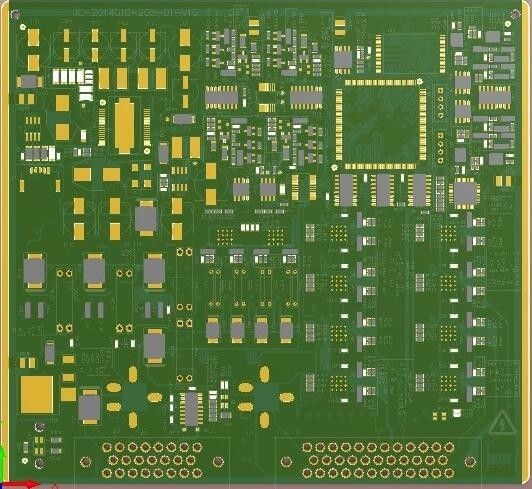

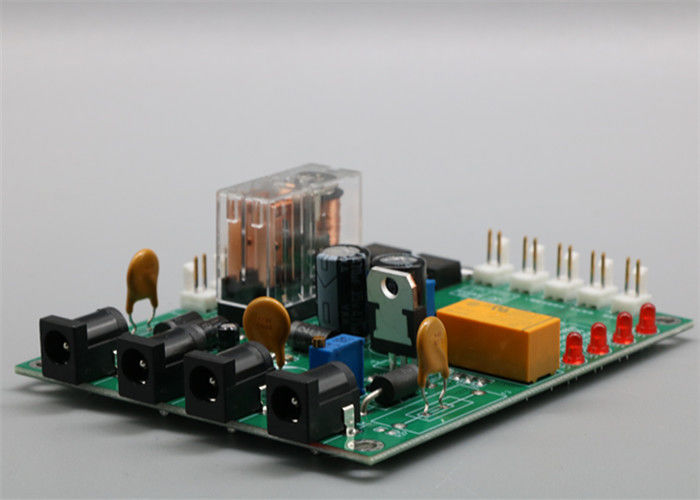

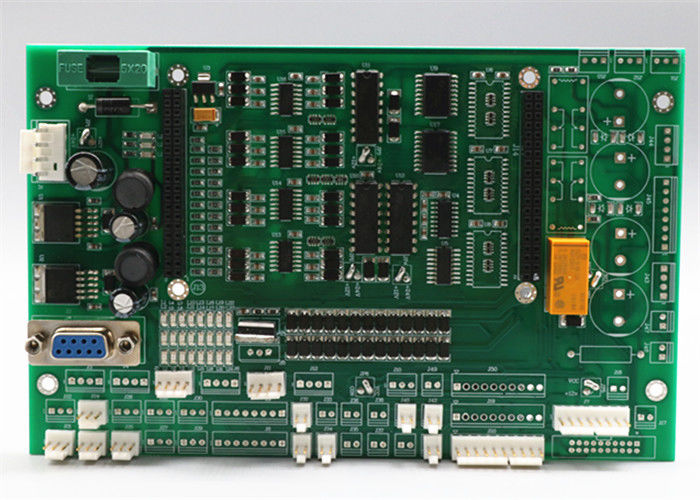

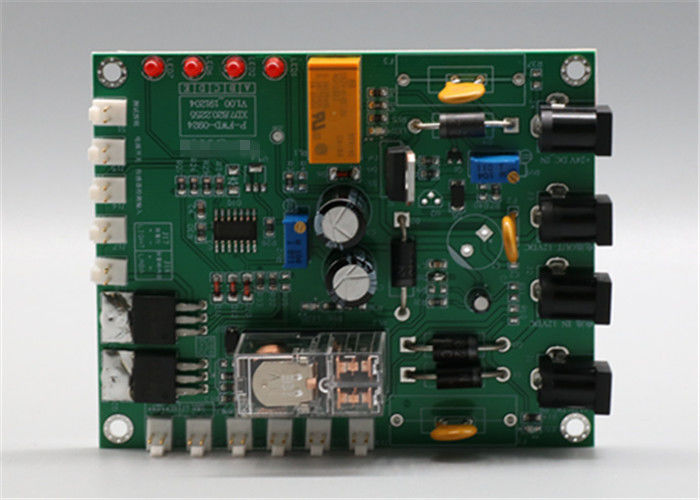

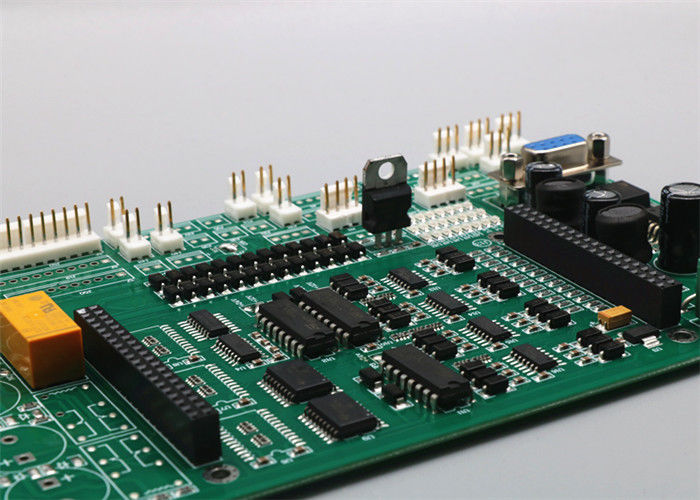

5. Picture
6. OEM/ODM/EMS Services For PCBA:
PCBA, PCB Board assembly: SMT & PTH & BGA
PCBA and enclosure design
Components sourcing and purchasing
Quick prototyping
Plastic injection molding
Metal sheet stamping
Final assembly
Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
Custom clearance for material importing and product exporting
FAQ
Q1: Are you a factory or trading company?
-----We are a factory,Our company mainly sells PCB Assembly Service
Q2: Do you accept sample order?
------Yes, we can accept sample order.
Q3: What's your warranty policy?
-----We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.
Q4: What's your payment terms?
------We accept T/T in advance, paypal, or alipay account.
Q5:What's the lead time for mass order?
------Normally, it takes about 20-35 days, depends on the order quantity.
