| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Kingsum ElectronicPCB |
| Certification: | UL,ROHS,REACH,ISO,TS16949 |
| Model Number: | PCB-J-004 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Vacuum bag |
| Delivery Time: | 5-10days |
| Supply Ability: | 100000pcs/month |
| Material: | FR4 | Spec: | As Per Customer Gerber File |
|---|---|---|---|
| Layers: | 4Layers | Copper: | 2OZ |
| Thickness: | 1.6mm | Surface: | ENIG/HASL/OSP |
| Solder Mask: | Green/Red/Black/Blue/White | Silkscreen: | White/Black/others |
| Certificate: | ISO/UL/TS16949/ROHS/REACH | ||
| High Light: | custom pcb boards,multilayer pcb | ||
Detail Specifications:
| Layers | 4-16Layers |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Surface Treatment | ENIG/HASL/OSP |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |

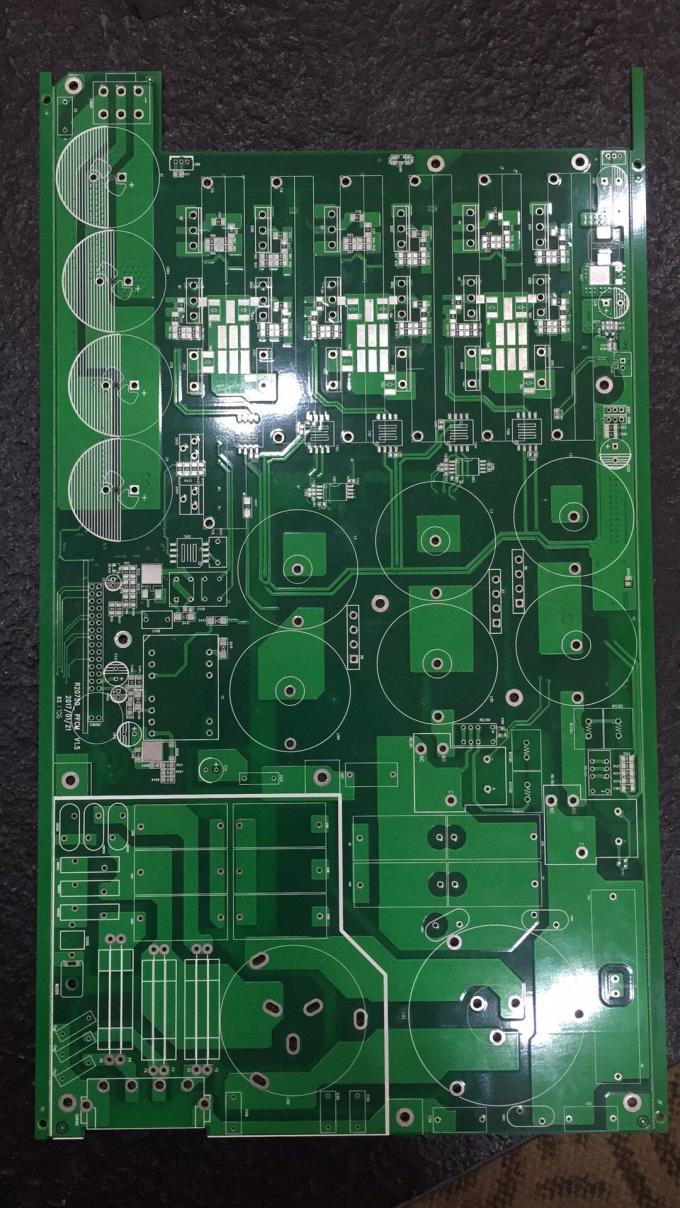

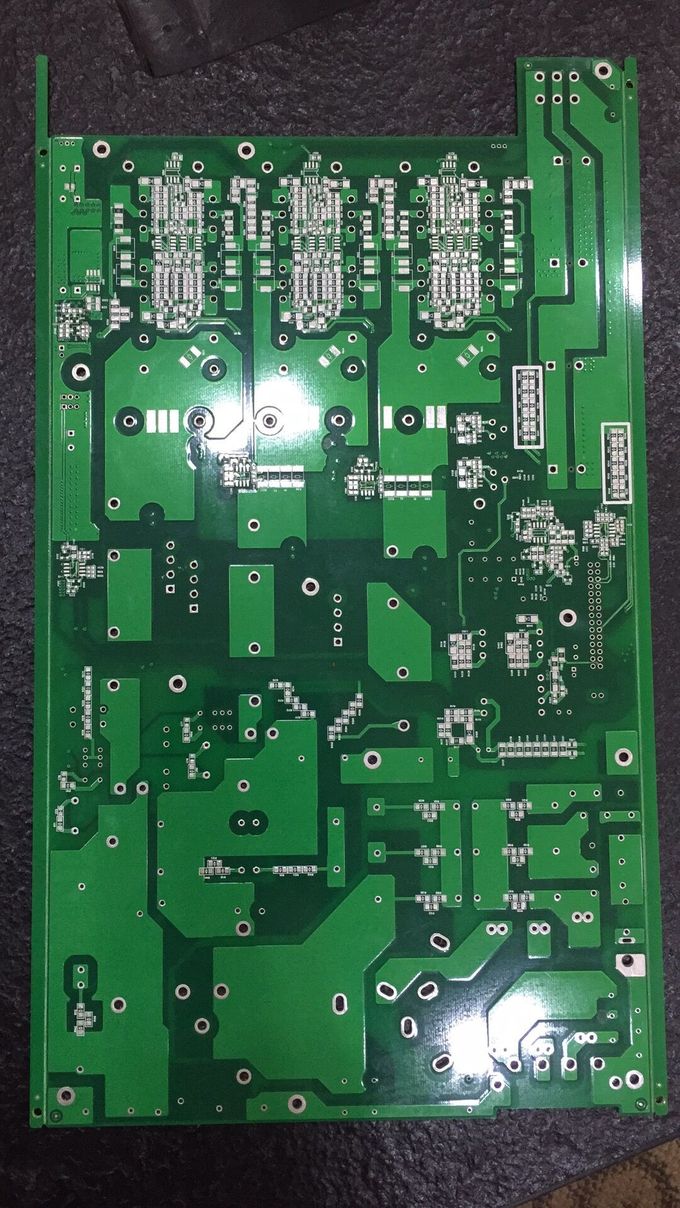

Photoes of this 4Layers 1.6mm HASL 2OZ Automotive PCB for Electronic Vehicle Charger System
What Kingsum Electronic Circuit can do for you:
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Company Informaiton:
Kingsum Electronic Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!
Manufacturer Capacity:
| Capacity |
Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
